It is recommended to use the cables supplied with the unit in order to obtain the optimal product settings.

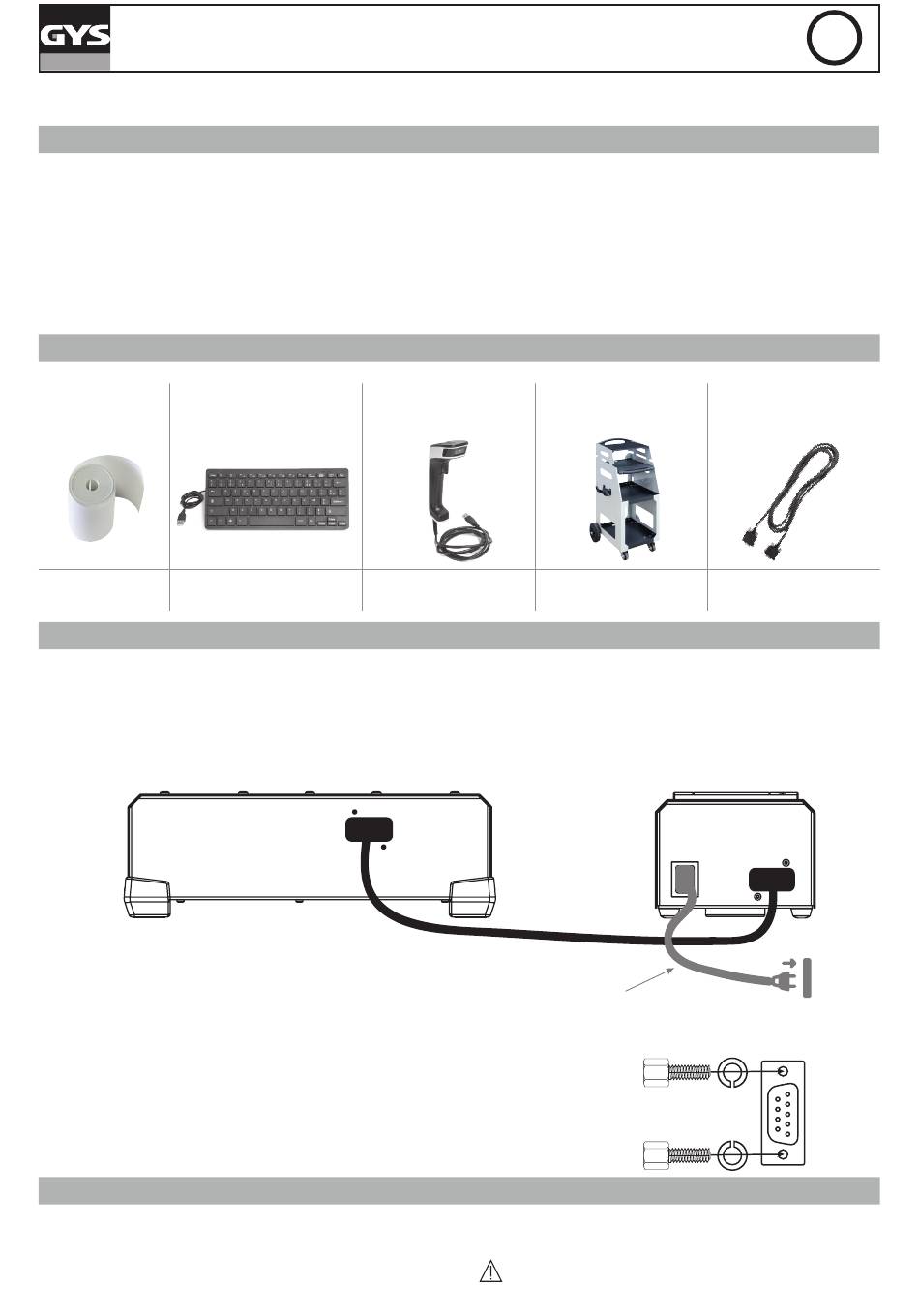

EQUIPMENT DESCRIPTION (FIG-1)
The Smart Printer Module (SPM) is an accessory that allows GYS «Connected» products (chargers, welding stations, etc.) to print
reports on tickets. It also has 2 USB ports for a barcode reader (ref. 027718) and a keyboard (ref. 027725 / ref. 027770).
1- Printer roll cover
2- Paper compartment opening lever
3- Paper feed button
4- Power LEDs
5- Warning LED
CONSUMABLE AND OPTIONS
Paper roll x2
57 mm
ref. 056633
INSTALLATION AND CONNECTION TO THE HOST PRODUCT
• Connect the SPM to the host product using the SMC connection cable.
• To benefit from increased performance (high print speed and available power on high USB ports), connect the SPM to the
electrical installation using the IEC C13 cable provided.
If necessary, connect the keyboard and barcode reader to the USB port. Attention, the use of accessories other than those offered
by GYS is not covered by the warranty. The simultaneous use of two barcode readers is also not covered by the warranty.
• Configure the language of the barcode reader (see below) as well as the keyboard type on the host product (Azerty, Qwerty,
Qwertz, etc.).
To ensure that the SMC connection cable is connected to the SPM and host product,
it is recommended to mount the supplied screws and Grower washers on the SMC
connectors according to the assembly:

POWER SWITCH

• This equipment can function with or without being connected to the mains. However, it must be connected to the host product
using the SMC connector. Printing performance is improved when the product is powered by the mains.
• This product can be connected to a single-phase 3pin power supply 100V -240V (50-60Hz) with earth connnection.
• When the SPM is turned on by the host product, the indicator light
8
SMART PRINTER MODULE
Mini USB keyboard
AZERTY ref. 027725
QWERTY ref. 027770
SMC
6- USB ports
7- Mains input
8- SMC connector
9- IEC C13 mains power cord
10- SMC connection cable
11- 4 locking screws for SMC connector
1D/2D barcode reader
ref. 027718
SMC cable included
IEC C13 cable included
flashes quickly for a few moments (initialisation phase).
Trolley GYSFLASH XL SMC connection cable
ref. 027749
Input :
100-240 V~50/60 Hz
10 A max
100-240 Vac 50Hz-60Hz
Grower
Screw
Washers
EN
3 m
ref. 025691
SMC
(fast speed)
SMC
