5 OPERATING INSTRUCTIONS

5.1 CONTINUITY MEASUREMENT OF PROTECTIVE CONDUCTORS WITH 10A

 The power supply voltage of the accessory must be: 230/240V ± 10% (207V
÷ 265V) or 110V ± 10% (100V ÷ 120V). Do not use external power supply
voltages external from the above ranges to avoid damaging the instrument
 Check that the rated operating voltage value indicated on the back
label should be consistent with the power supply voltage of the
system under test

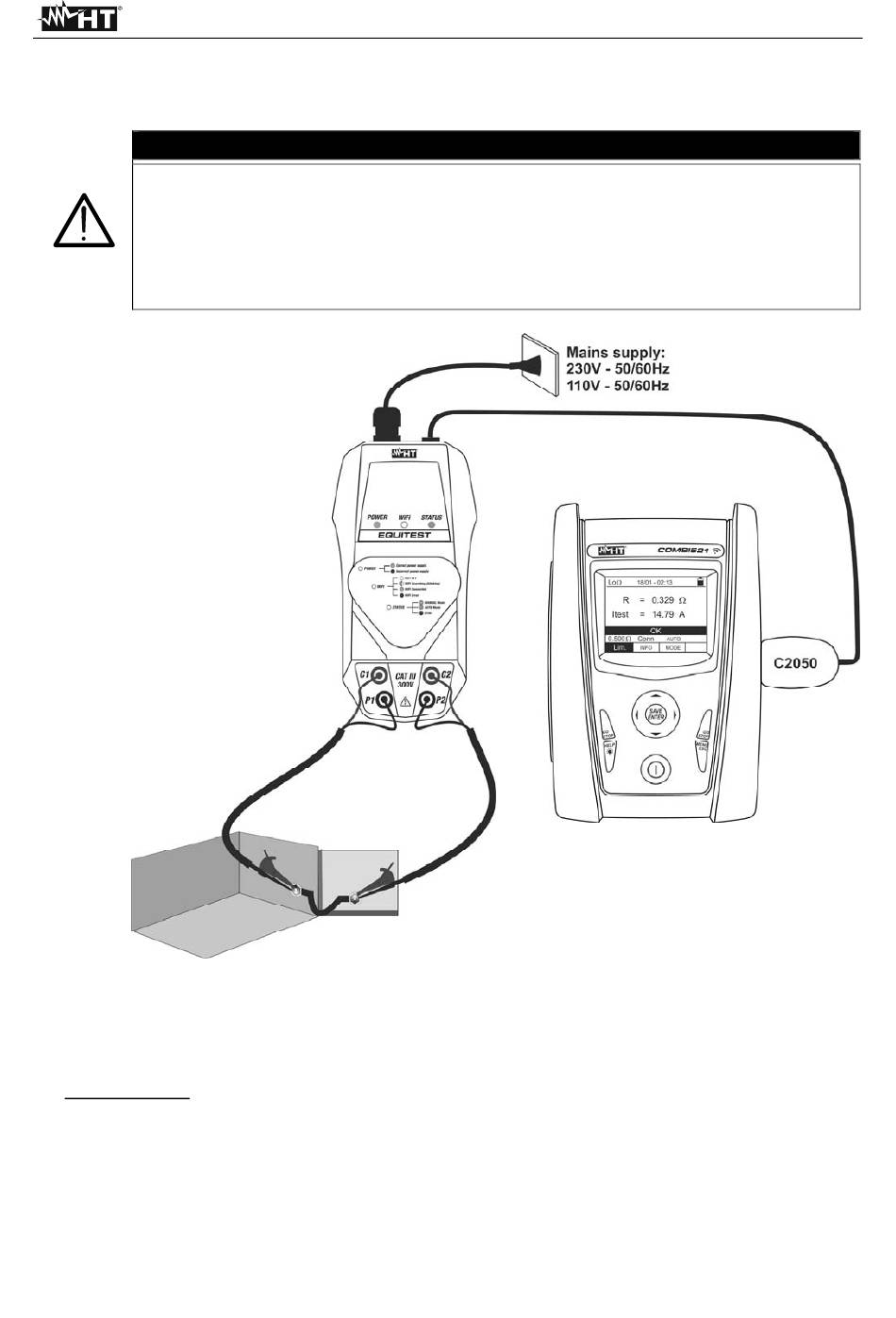

Fig. 3: Continuity measurement of protective conductors with 10A
1. Connect the accessory to the power supply using the supplied network cable (see Fig.
1 - part 10). The POWER LED is steady green to identify the correct power supply
voltage, the STATUS LED is steady green to identify the operation of the accessory in
Manual mode (see user manual of the MASTER instrument) and the WiFi LED is on in
green flashing color to identify that the accessory is trying to make (if available) a WiFi
connection with an external mobile device via the HTAnalysis APP (refer to the
HTAnalysis instructions for managing the operation)
2. Connect the accessory to the MASTER instrument (see Fig. 3) by using the C2050
cable supplied (see Fig. 1 - part 1)
3. Check the correct detection of the accessory on the MASTER instrument (see relevant
user manual)
CAUTION
