4 NOMENCLATURE

4.1 DESCRIPTION OF THE ACCESSORY

4.2 DESCRIPTION OF MEASURING LEADS

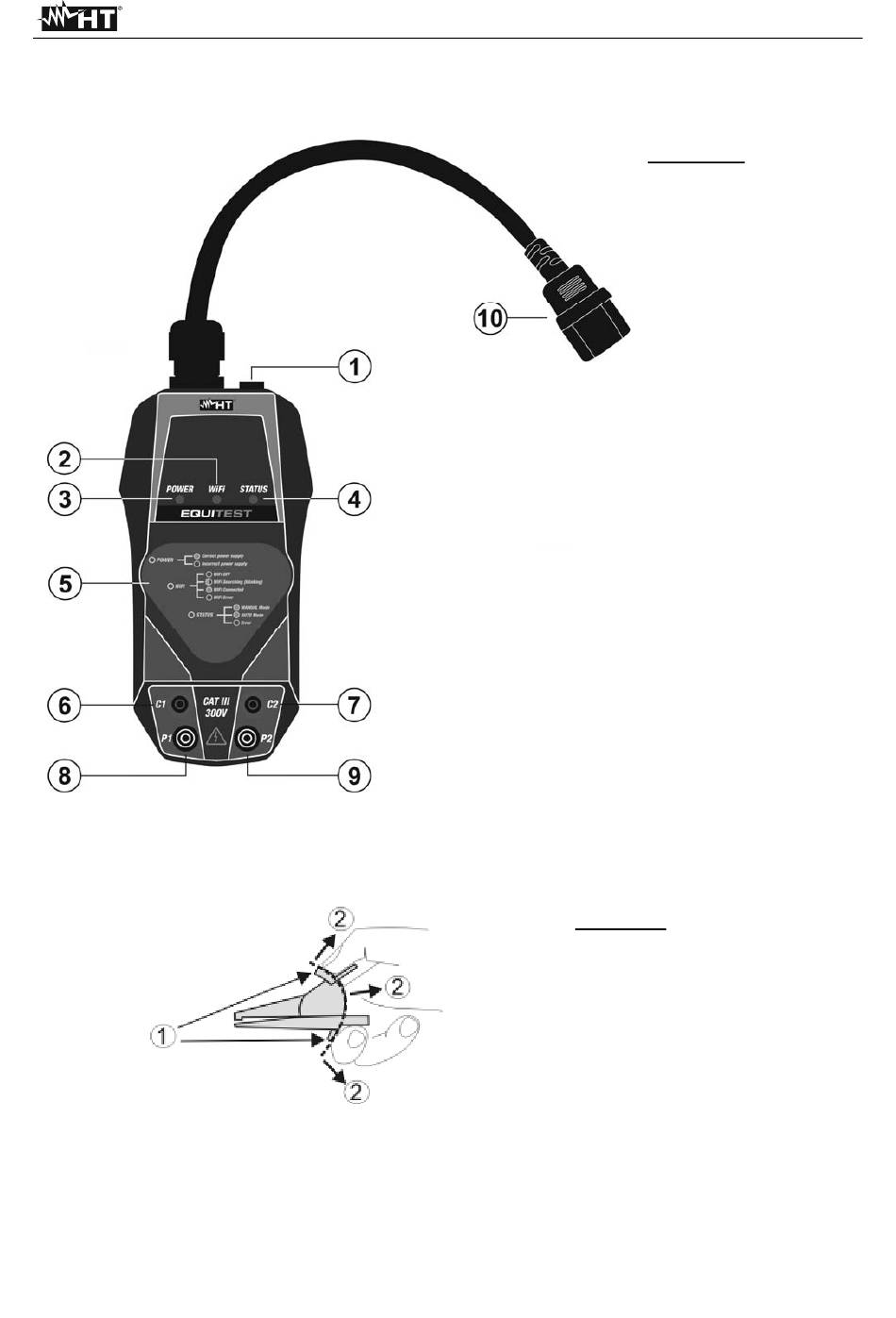

Fig. 1: Description of the accessory
Fig. 2: Description of measuring leads
EN - 6
CAPTION:
1. Input for
connection to
MASTER
instrument via
C2050 cable
2. WiFi LED
3. POWER LED
4. STATUS LED
5. Indication of LED
status
6. Input terminal C1
7. Input terminal C2
8. Input terminal P1
9. Input terminal P2
10. Plug cable for
connection to
mains supply
CAPTION:
1. Hand protection
2. Safe area
EQUITEST
