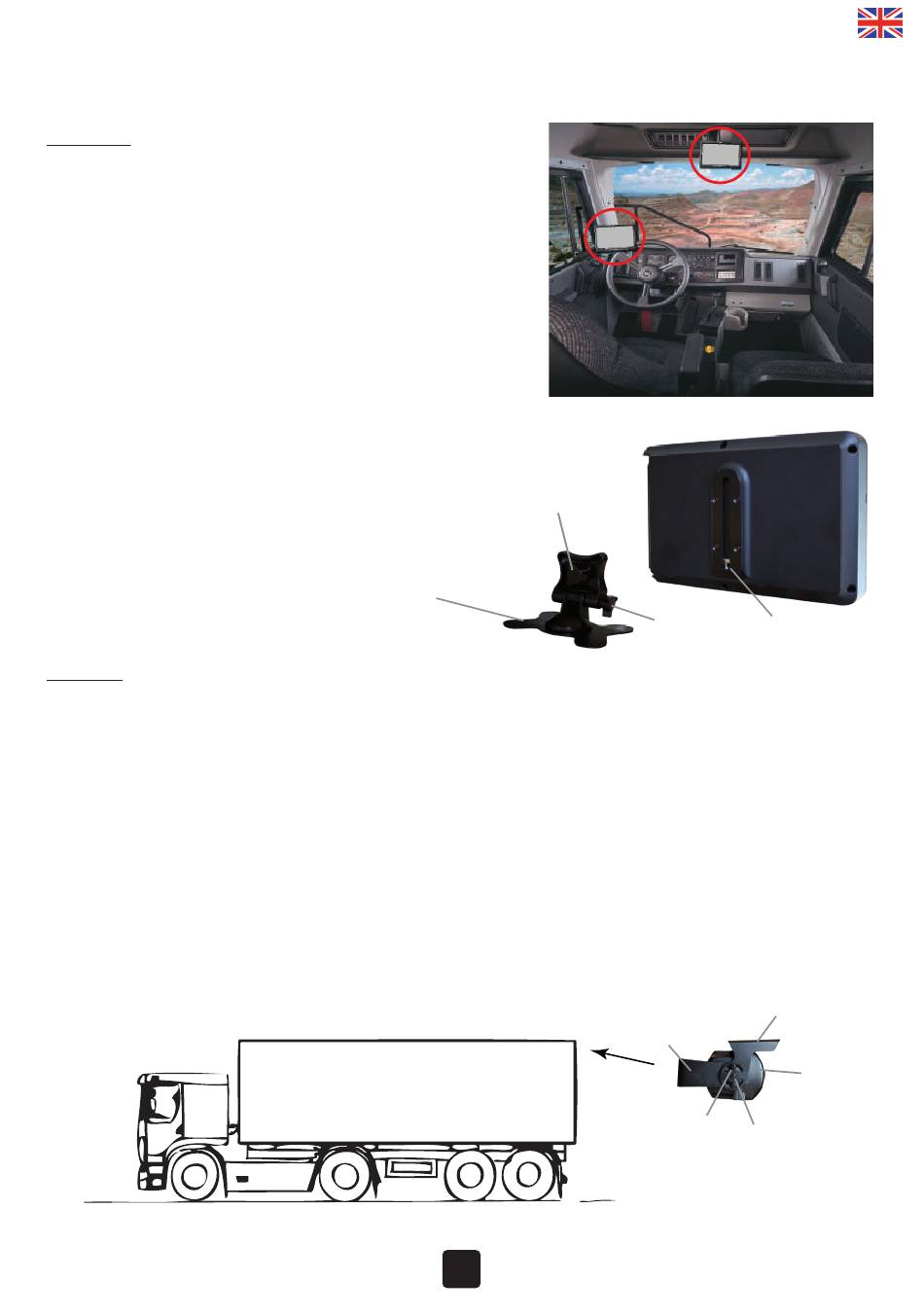

3. INSTALLATION OF MONITOR & CAMERA
MONITOR
POSITION
We advise to define precisely the position of the monitor with the user of
the vehicle. 2 positions are possible (see picture) : dashboard or rooftop.
FIXING THE MONITOR & BRACKET
1 • Fix the bracket with the sticker and if possible screw it on the defined position.
2 • Screw the square screw at the back of the monitor on the bracket thanks to
screw wheel 1.
3 • Adjust the height of the monitor and screw firmly the screw wheel 1.
4 • Adjust the angle of the monitor using the screw wheel 2.
CAMERA
POSITION
We advise to define precisely the position of the camera with the user of the vehicle according to the view that should be monitored.
FIXING THE CAMERA
1 • Unscrew the central screws to remove the bracket from the camera housing.
2 • Fix the bracket on the appropriate position on the vehicle
3 • Drill a hole of Ø16 mm to lead through the cable and insert the grommet in this hole. The grommet should be strongly placed in the hole to
ensure the waterproof and avoid rain inside.
4 • Screw the camera on the brakcet thank to the central screws
5 • Adjust the optimal view angle and screw strongly the 4 rotation screws.
Note : the double lense camera of model RWEC200X-BL is already pre-adjusted with the 2 optimal view angles between the 2 cameras. You can dissasembly the 2 cameras if you
need to optimize the view angle.
Screw wheel1
Mounting bracket
to stick &
screw
15
Screw
Square screw & slide
wheel2
Cap
Bracket
Camera
housing
Rotation screw
Central screw
