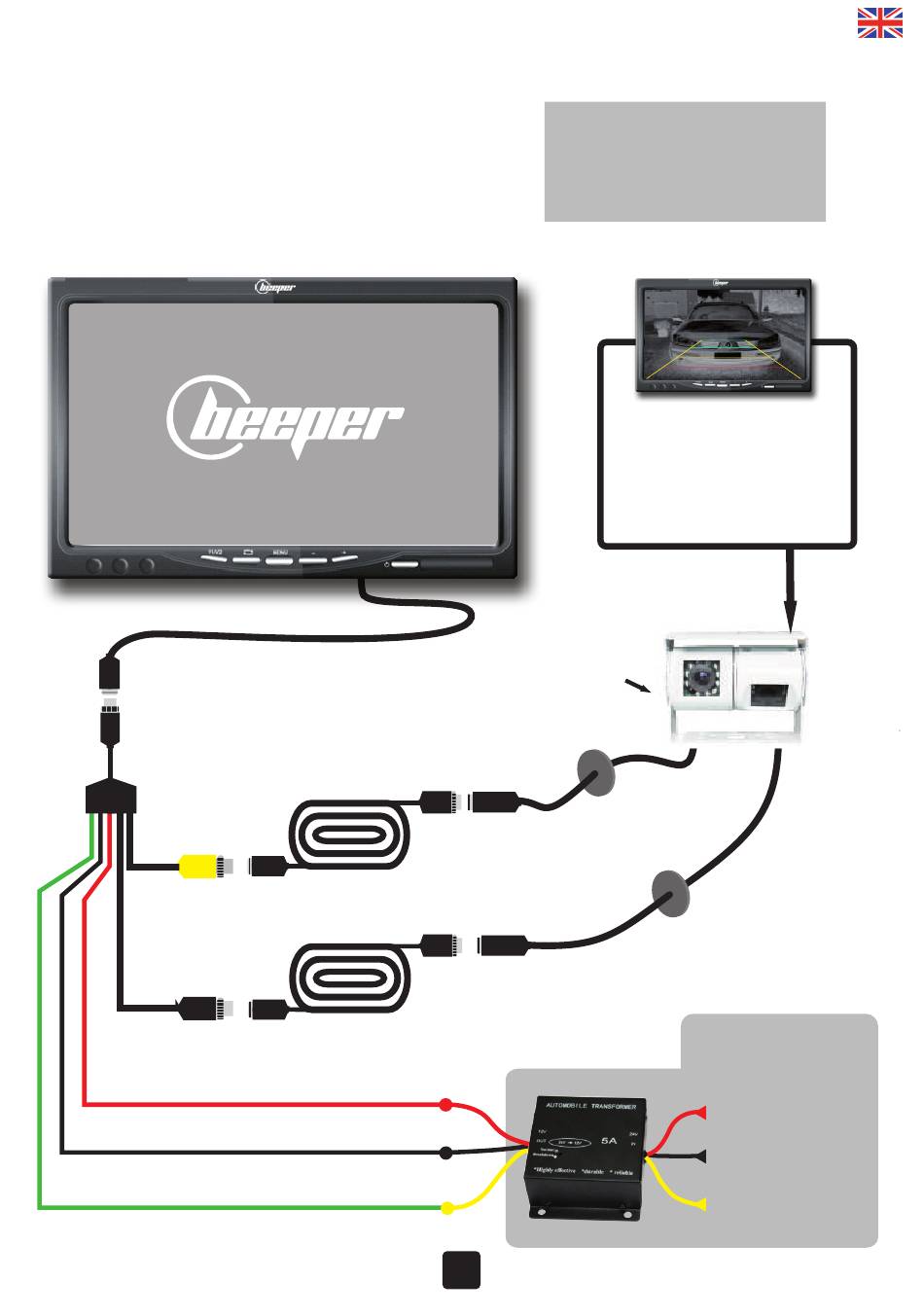

6. CONNECTION • RWEC200X-BL
1 • Connect the 15 m. extension cable between monitor and camera.
2 • Plug the wireharness (5 wires) on the monitor
3 • Connect the BLACK wire to the original GROUND of the vehicle
4 • Connect the RED wire to +12V after ignition of the vehicle
5 • Connect the GREEN wire to the +12V Reversing light of the vehicle
LCD monitor 7"
S-video plug
to 6 pin
Cable ± 45 cm
connector
to screw
connector
to screw
Cable ± 55 cm
Cable ± 15 m
4 pins
VIDEO IN 2
REAR VIEW camera connection
Cable ± 15 m
4 pins
VIDEO & AUDIO IN 1
BACKWARD camera connection (with audio)
RED • + 12 V after ignition
Monitor activation
BLACK • Ground
Power (-)
GREEN • + 12 Volts
Reverse light
Camera activation when reversing
For a 24V vehicle, you need to :
- either chose the pack RWEC99X/24 suplied with the
24/12 Volts transformer
- either buy separately in option the 24 volts transformer
item ref = RX-EC2412.
See how to connect the transformer below
The backward camera offers limit lines
Rearview
camera
4 pins
connector
to screw
4 pins
connector
to screw
Red
Black
Yellow
18
Limit lines for
BACKWARD camera only
information to show the obstacle
distance on the monitor through red,
yellow & green lines.
Double lense
camera
Cable ± 35 cm
Cable ± 35 cm
OPTION : RX-ECX2412
Transformer 24V -> 12V • 5 amp.
Supllied in the pack RWEC200X/24
Red
INPUT • +24 Volts
AFTER IGNITION vehicle
Black
INPUT
Ground Vehicle
Yellow
INPUT • + 24 Volts
REVERSING LIGHT Vehicle
Backward
camera with
built-in
microphone
