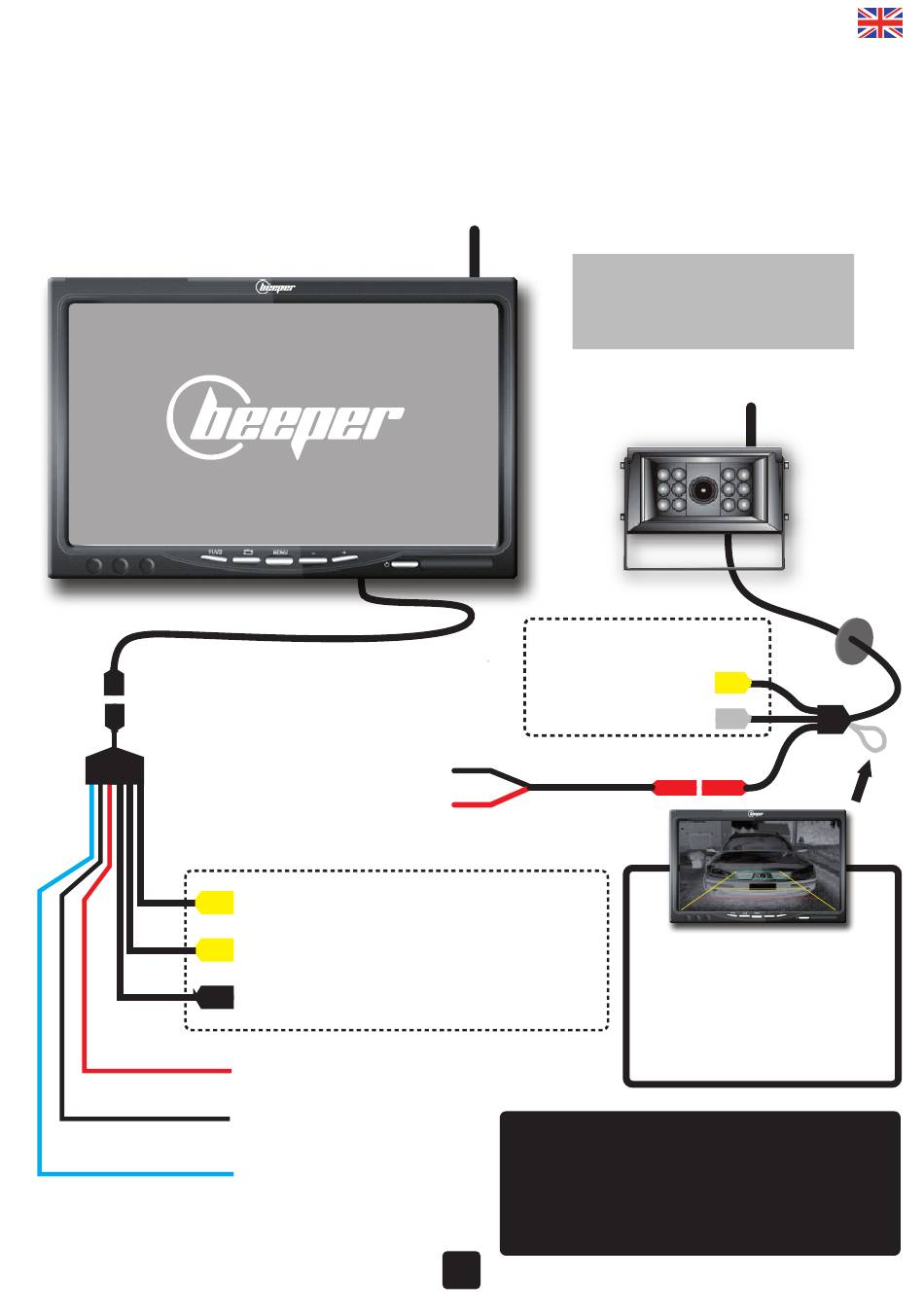

5. CONNEXION • RWEC100X-RF
1 • Plug the wireharness (6 wires) on the monitor
2 • Connect the BLACK wire to the original GROUND of the vehicle
3 • Connect the RED wire to +12V after ignition of the vehicle
4 • Connect the BLUE wire to the +12V Reversing light of the vehicle
LCD monitor 7"
RCA Yellow
RCA Yellow
RCA Black
(
Ground • BLACK
+ 12 Volts Reverse light • RED
Camera activation when reversing
VIDEO IN 1 INPUT (Male)
Optional camera 1 (wired) - not supplied
VIDEO IN 2 INPUT
Optional camera 2 (wired) - not supplied
AUDIO input for Video IN1 (Female)
Sound for optional camera 1 (wired) - not supplied
RED • + 12 V after ignition
Monitor activation
BLACK • Ground
Power (-)
BLUE • + 12 Volts Reverse light
Camera activation when reversing
5 • Connect the BLACK wire of the camera to the GROUND
6 • Connect the RED wire of the camera to the +12V
Reversing light
(
The radio transmission between camera & monitor starts
( (
( (
For a 24V vehicle, you need to buy separately in option 2
pieces of 24 volts transformers (item ref = RX-EC2412).
1 to power the monitor and 1 to power the camera.
DO NOT CONNECT
Connect only if you wish to
install optional wired cameras
DO NOT
CONNECT
Connect only
if you wish to
install optional
wired cameras
NOTE : PROBLEMS OF RADIO TRANSMISSION
• Maximum range in open field : 30 m.
• The range can be seriously reduced by metallic bodies like trailers,
trolleys, vehicle bodies, ...
• Radio transmission can be disturbed by external elements of the vehicle
(antennas, CCTV radio transmission, WIFI, ...).
In case of problems with the radio transmission, you can connect an
extension cable between the camera and the monitor in order to transform
this wireless system into a wired system. Pls contact our technical hot line.
17
24 VOLTS VEHICLE
( (
( (
( (
Camera
RCA Yellow
Output VIDEO
RCA White
Output AUDIO
Loop for LIMIT LINES
• White loop uncut :
Limit lines appear on the monitor
• White loop cut :
No limit lines on the monitor
