Basic operations

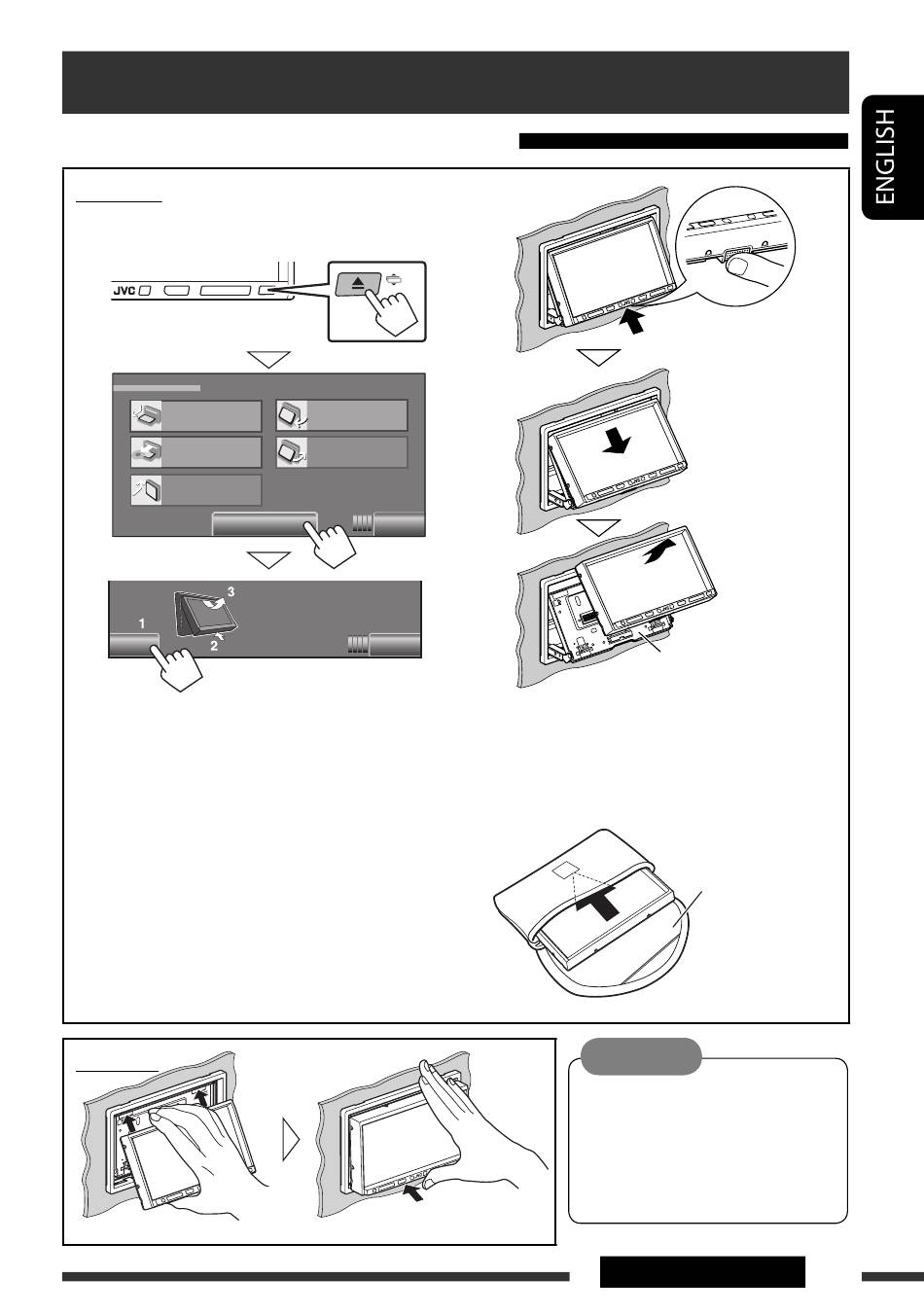

Detaching/attaching the monitor panel

Detaching
~
While the unit is turned on:
Open/Tilt
Open
Eject
Close
Yes Detach?
The monitor panel opens by about 50°.
• It closes automatically when no operation is
done for about a minute.
Attaching
Tilt +
Tilt –
Detach Exit
No
Ÿ
• The attaching plate closes automatically
about 10 seconds after the monitor panel is
released. Remove the monitor panel before
this happens.
!
Caution:
• Hold the monitor panel securely so
as not to drop it accidentally.
• Fit the monitor panel onto the
attaching plate until it is firmly
locked.
INTRODUCTIONS
The monitor panel is
unlocked.
Attaching plate
Soft case (supplied)
5
