• Place the machine onto a piece of clean 10 mm thick mild
steel plate that is larger than the magnetic base of the
machine.
• Connect the plug into a mains supply socket.
• Switch on the socket. (UK only)
• Operate the red switch (Fig. 4) situated at the rear of the
machine to energise the magnet.
• Check that the machine is firmly attached to the Mild Steel plate.
• Operate the black motor switch located on the top of the
machine. (Fig. 5)
• Allow the motor to run for a few seconds to check for any
unusual noise or vibration.
• Do not use the machine if any vibration or unusual noises
are detected or if magnetic adhesion is questionable. Have
the machine serviced by a qualified person, or if under
warranty refer to the guarantee agreement.
• Turn 'OFF' the machine when all testing has been
completed.
(9.19)
INSTALLING A CUTTER
Select a cutter suitable for the operation to be performed.
Check the cutter to ensure that it is sharp and is not damaged
in any way.
• Insert the pilot pin into the cutter ensuring that it slides
smoothly. (Fig.6)
• Raise the cutting head to its highest position.
• Check that the cutter securing set screws located in the arbor
are not protruding into the spindle bore. (Fig.7)
• Align the two flats on the cutter shaft with the grub screws in
the spindle.
• Start to tighten one of the grub screws and at the same time
slightly rotate the cutter backwards and forwards until the
grub screw is fully tightened. This will ensure that the grub
screw is located squarely onto the flat preventing the cutter
from becoming loose.
• Tighten the remaining grub screw.

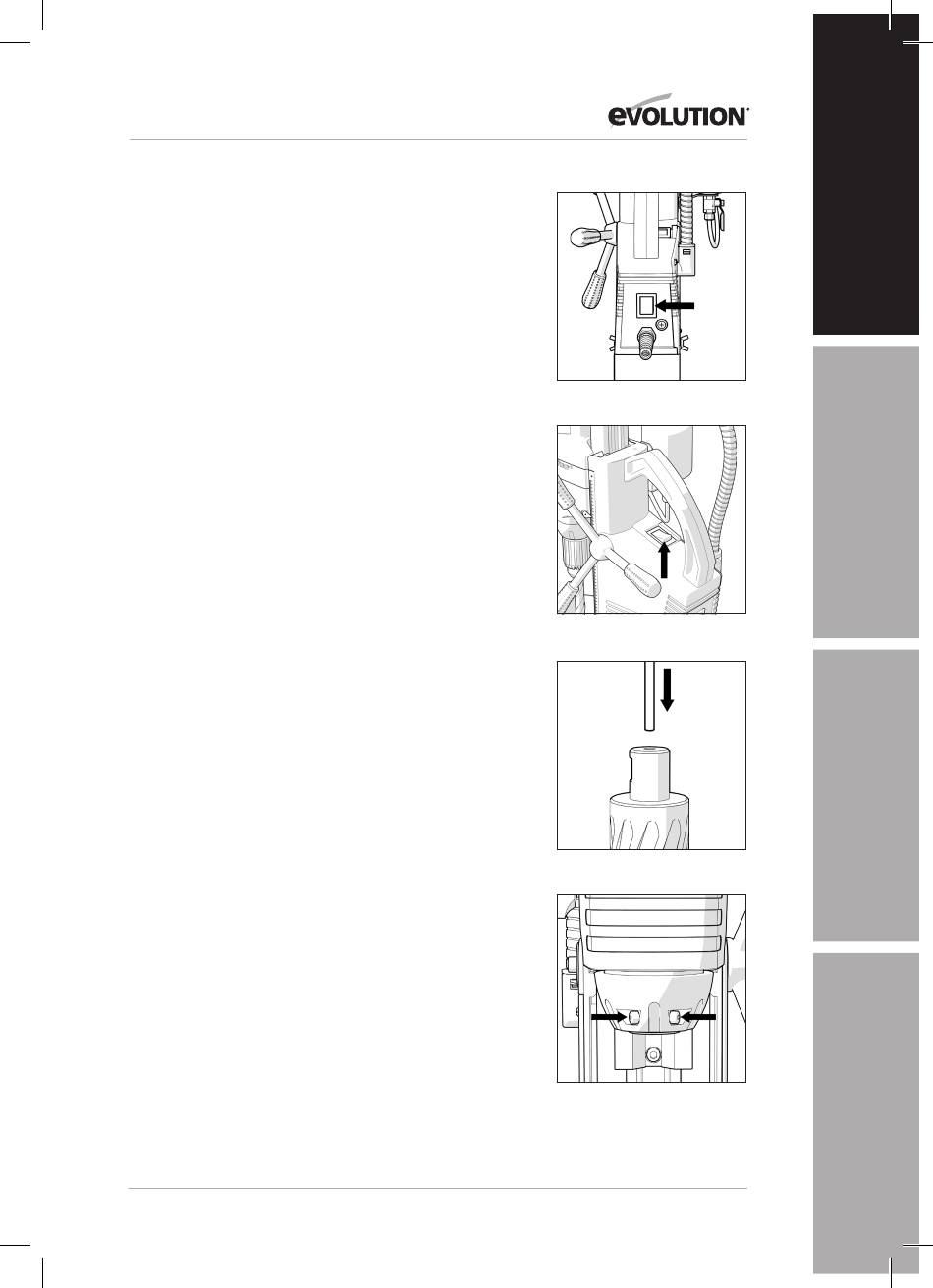

Fig. 4
