HEATER INPUT
ELEMENTS
VOLTAGE
MAX kW
kW PER ELEMENT
MAX AMPERAGE DRAW
REQUIRED BREAKERS
REQUIRED WIRE GAUGE
L1 L2
8kW, 11kW, 13kW heaters
require 1 set of breaker and wire
18kW heater requires 2 sets of breakers and wires
24kW and 27kW heaters require 3 sets of breakers and wires
Electrical Specifications by Heater Input
8kW 11kW
1 2
240 V 240 V
8 kW 11 kW
8 kW 5.5 kW
33 AMPS 46 AMPS
1 x 40 AMP 1 X 60 AMP
1 x 8 AWG 1 x 6 AWG
L1 L2
36kW heater requires 4 sets of breakers and wires
13kW 18kW
2 2
240 V 240 V
13 kW 18 kW
6.5 kW 9 kW
54 AMPS 75 AMPS
1 X 60 AMP 2 X 40 AMP
1 x 6 AWG 2 X 8 AWG

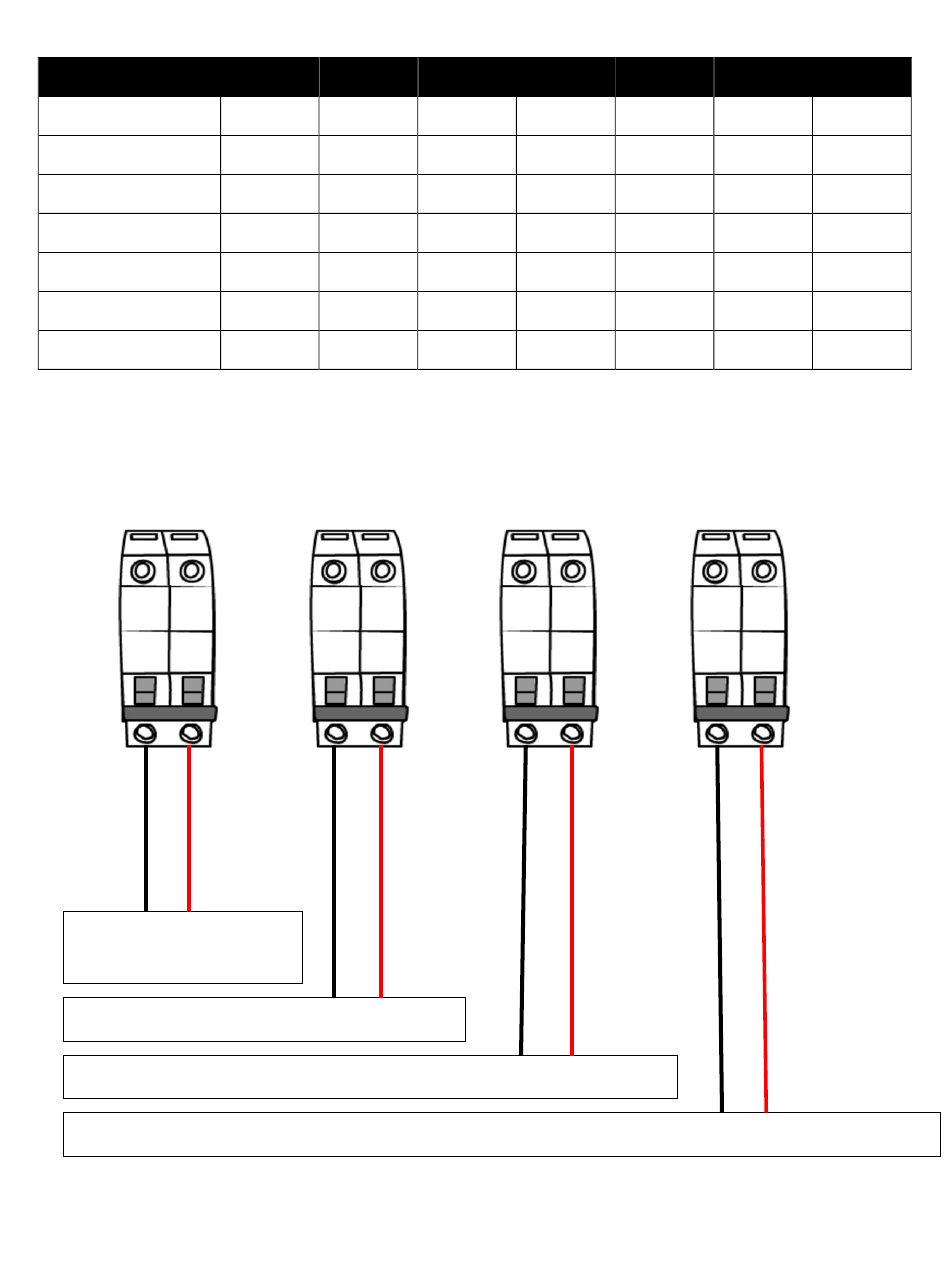

Wiring Diagram
L1 L2
24kW 27kW
3 3
240 V 240 V
24 kW 27 kW
8 kW 9 kW
100 AMPS 112.5 AMPS
3 x 40 AMP 3 X 40 AMP
3 x 8 AWG 3 X 8 AWG
L1
L2
36kW
4
240 V
36 kW
9 KW
150 AMPS
4 X 40 AMP
4 X 8 AWG
