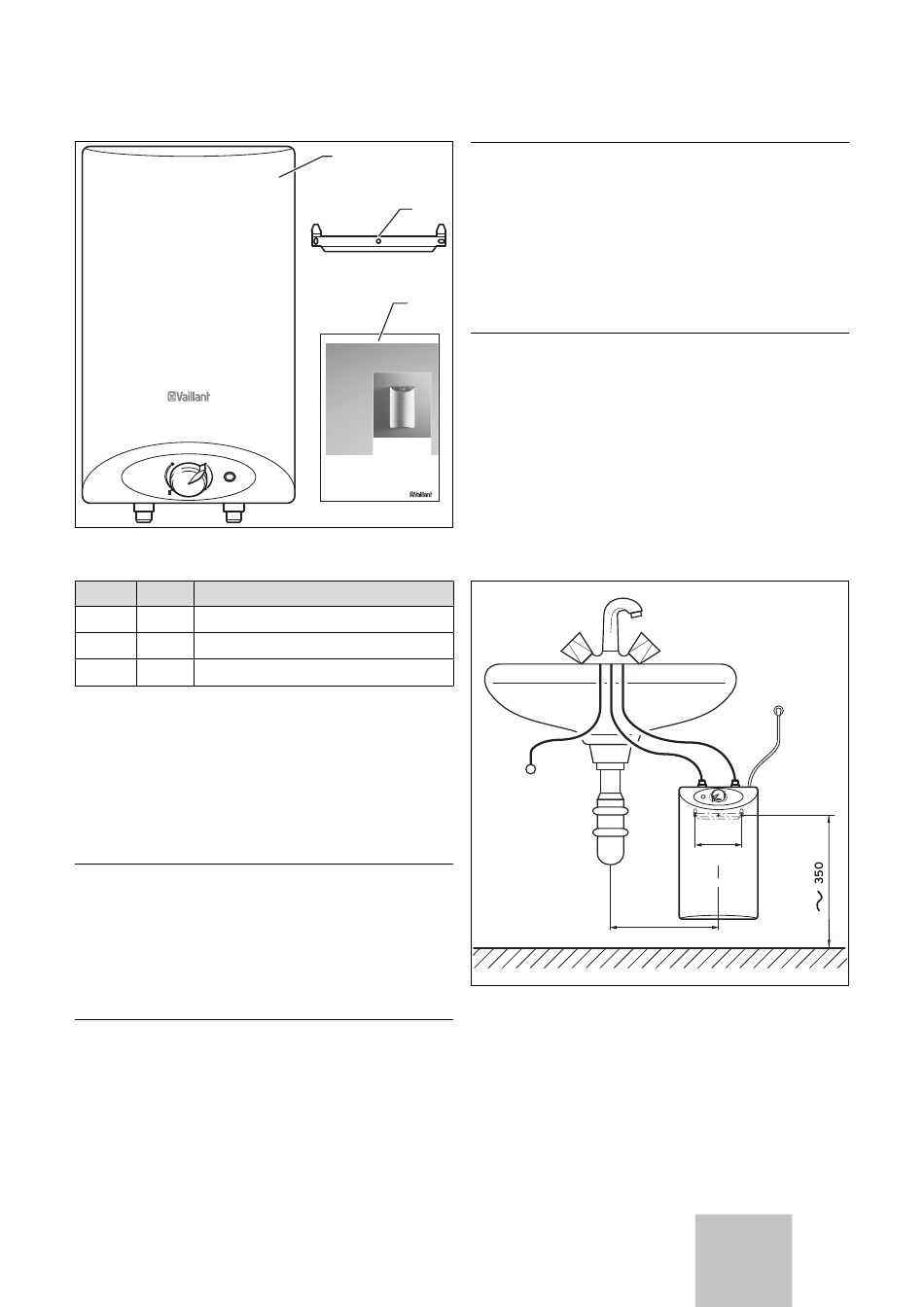

Fig. 4.1 Scope of delivery for VEN 5/6 O overcounter unit
Item Quantity Name
1 1 Unit
2 1 Wall bracket
3 1 Operating and installation instructions
Tab. 4.1 Scope of delivery
i
The wall bracket is located on the back of the
unit.
4.2

Installation site

b
Caution:
Risk of material damage caused by aggres-
sive vapours or dust.
Aggressive vapours and dust in the installa-
tion room can cause corrosion damage to the
electric domestic hot water cylinder.
> Make sure that the installation room is free
of aggressive vapours and dust.
Operating instructions for electric domestic hot water cylinders VEN 5/6 U and O (plus) 0020129648_01
b
1
2
3
i
VEN 5/6 plus
INT , FR, BE , BE , HR
EN FR NL
4.3
Undercounter unit
Fig. 4.2 Installation example: undercounter unit
Caution:
Risk of frost damage to the unit.
If an electric domestic hot water cylinder is
placed out of operation for a relatively long
period of time in an unheated room in cold
weather, the water in the unit and pipes may
freeze. This would result in damage to the
unit.
> Install the unit in a permanently frost-free
room.
In rooms with a bath or shower, the electric
domestic hot water cylinder must be installed
in accordance with all relevant legal require-
ments, e.g. VDE 0100, Part 701 (UK equivalent
= BS 7671 Section 601.

Unit and connection dimensions

250
Installation 4
140
INT 9
