Model Railway Control Unit
Switching power supply:
Voltage: 12 – 20 V DC
Output current: min. 2 A
Before first use, the switch decoder must be programmed so that it knows which decoder addresses and switch numbers to respond
to. If you are operating the Z21 switch DECODER on a control centre from another manufacturer, please observe the information in
Operation on control centres from other
The procedure for programming the decoder addresses using the programming button is explained in detail in the
addresses for outputs 1 to 8.

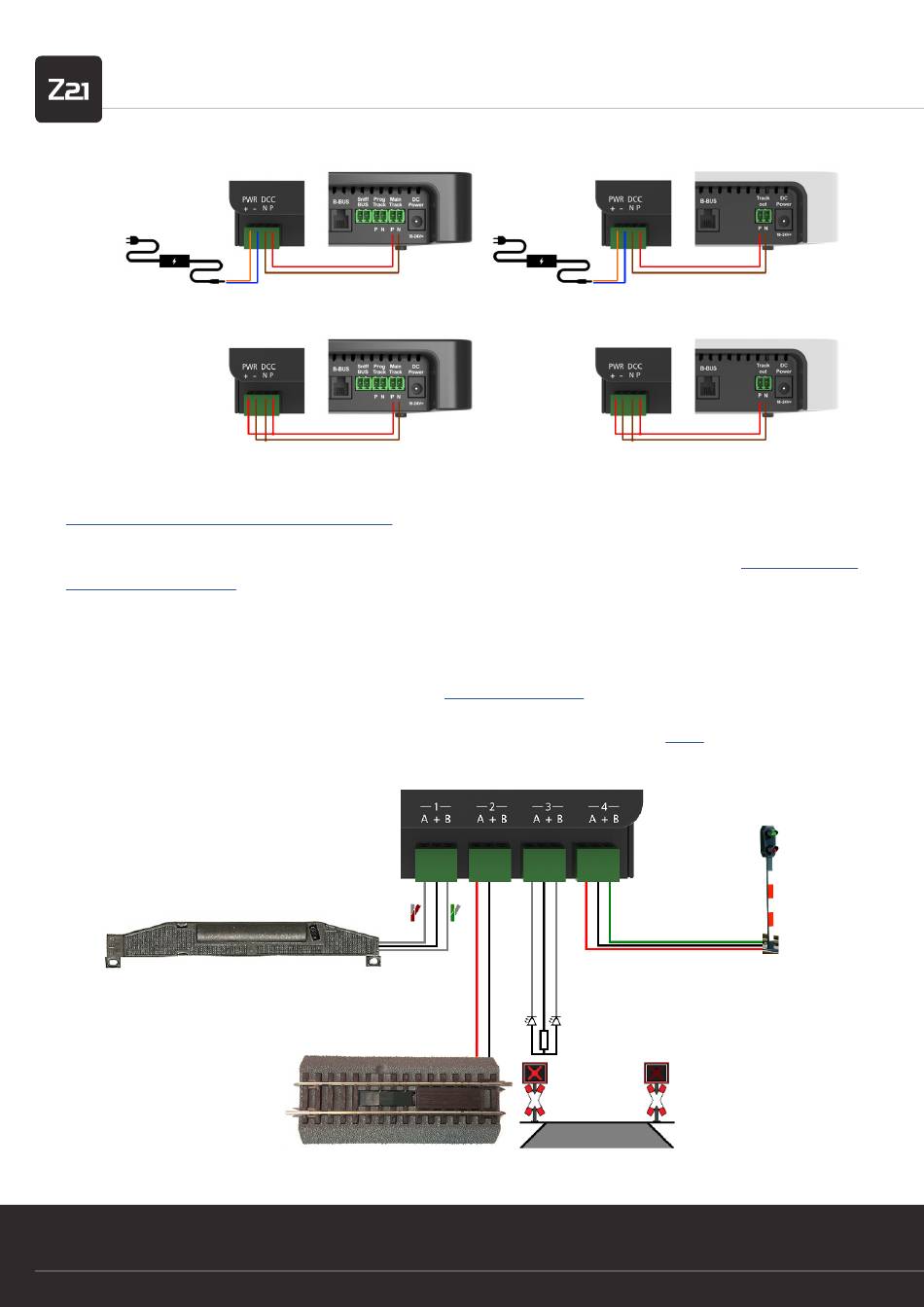

The consumers, such as coil motors etc, are connected to outputs 1 to 8. In the centre, the "+" terminal refers to the common plus pole
in each case. The "A" terminal corresponds to the "branch / red" position, and the "B" terminal to the "straight / green" position. Each
of the 8 outputs can be set as necessary via CV #41 to #48 to an individual operating mode. This can be configured either via the zLink
or via "POM" programming on the main track, see also section
More information on the comprehensive configuration options of the outputs can be found in section
examples for common applications:
WWW.Z21.EU
30
manufacturers.
Configuration via POM.
Option 1 – Program
CV list. Given here are just a few
