THERMASGARD
Resistance thermometer THERMASGARD
ture detection in larger rooms and halls. Due to the measuring method employed by this pendulum room
temperature sensor in combination with its positioning in the room, excellent and room-representative
measuring results are achieved as ambient air of the room is steadily washing around the sensor.
Resistance thermometer THERMASGARD
ture detection in larger rooms and halls, as dark radiation sensor for example. The pendulum room sensor
RPTF-2 (globe thermometer) determines the effective portion of active radiation or also the effective
radiant heat at the measured location. Due to the measuring method employed by this pendulum room
temperature sensor in combination with its positioning in the room, an excellent and room-representative
measuring result is achieved. The globe temperature is determined to take heat radiation into consideration
and to estimate the degree of thermal comfort (operative room temperature). The operative room
temperature describes the coaction of heat radiation and heat convection (the ratio of globe tempera-
ture ⁄ air temperature is approx. 70 % ⁄ 30 %).

TECHNICAL DATA

Measuring range:
Sensors ⁄ output:
Sensor protection:
Protective tube:
Globe:
Connection type:
Testing current:
Protective tube:
Sensor cable:
Insulating resistance:
Humidity:
Protection class:
Protection type:
®
THERMASGARD RPTF 1 – Pendulum room temperature sensors
Type ⁄ WG03
RPTF 1 with metal sleeve
R P T F1 P T10 0
R P T F1 P T10 0 0
R P T F1 NI10 0 0
R P T F1 NI10 0 0 T K 5 0 0 0
R P T F1 L M 2 3 5 Z
R P T F1 N T C1,8 K
R P T F1 N T C10 K
R P T F1 N T C10 K P R E C O N
R P T F1 N T C 2 0 K
R P T F1 N T C 3 0 K
R P T F1 K T Y 81- 210
RPTF 2 with globe
R P T F 2 P T10 0
R P T F 2 P T10 0 0
R P T F 2 NI10 0 0
R P T F 2 NI10 0 0 T K 5 0 0 0
R P T F 2 L M 2 3 5 Z
R P T F 2 N T C1,8 K
R P T F 2 N T C10 K
R P T F 2 N T C10 K P RECON
R P T F 2 N T C 2 0 K
R P T F 2 N T C 3 0 K
R P T F 2 K T Y 81- 210
SF-M
RPTF
® RPTF 1 with passive output is specifically used for tempera-
®
RPTF 2 with passive output is specifically used for tempera-
RPTF 1 –5...+60 °C
RPTF 2 –5...+60 °C
see table, passive
(optional also with two sensors)
RPTF 1 plastic sinter filter, Ø 16 mm, L = 35 mm, exchangeable
(optional metal sinter filter, Ø 16 mm, L = 32 mm)
RPTF 1 metal, Ø = 16 mm, NL = 142 mm
RPTF 2 plastic, colour black, Ø = 50 mm
2-wire connection (4-wire connection optional)
approx. 1 mA
metal, Ø =16 mm, L =142 mm
PVC; 1.5 m, H03VV-F, 2 x 0.25 mm²,
ends stripped with wire end sleeves
(other lengths optional: 3 m, 6 m)
≥ 100 MΩ, at +20 °C (500 V DC)
< 95 % r. H.
III (according to EN 60 730)
IP 65 (according to EN 60 529)
Sensor ⁄ Output
Pt100 (according to DIN EN 60 751, class B)
Pt1000 (according to DIN EN 60 751, class B)
Ni1000 (according to DIN EN 43 760, class B, TCR = 6180 ppm ⁄ K)
Ni1000 TK5000 (TCR = 5000 ppm ⁄ K), LG - Ni1000
LM235Z (TCR = 10 mV ⁄ K; 2.73 V at O °C), KP10
NTC 1.8 K
NTC 10K
NTC 10K Precon
NTC 20K
NTC 30K
KTY 81-210
Pt100 (according to DIN EN 60 751, class B)
Pt1000 (according to DIN EN 60 751, class B)
Ni1000 (according to DIN EN 43 760, class B, TCR = 6180 ppm ⁄ K)
Ni1000 TK5000 (TCR = 5000 ppm ⁄ K), LG - Ni1000
LM235Z (TCR = 10 mV ⁄ K; 2.73 V at O °C), KP10
NTC 1.8 K
NTC 10K
NTC 10K Precon
NTC 20K
NTC 30K
KTY 81-210
Metal sinter filter, Ø 16 mm, L = 32 mm, exchangeable stainless steel (VA 1.4404)
RPTF 1 = Rev. 2017 - V21 GB
RPTF 2 = Rev. 2017 - V12 GB

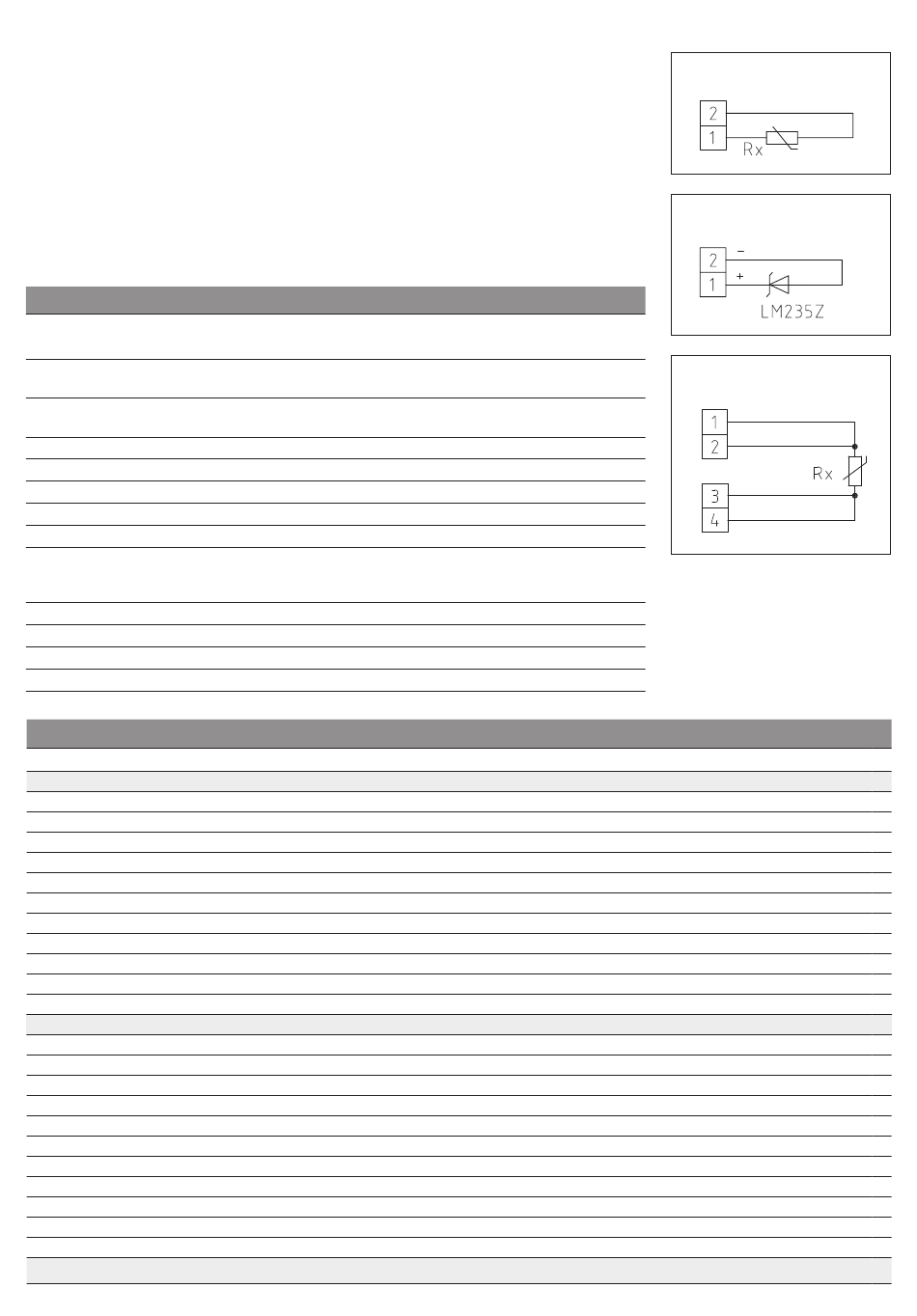

1x two-wire connection
Standard
1x two-wire connection
LM 235 Z (KP 10)
1x four-wire connection
(optional)
Item No.
IP 65
1101- 6060-1211- 010
1101- 6060-5211- 010
1101- 6060-9211- 010
1101- 6061-0211- 010
1101- 6062-1211- 110
1101- 6061-2211- 010
1101- 6061-5211- 010
1101- 6061-9211- 010
1101- 6061-6211- 010
1101- 6061-7211- 010
1101- 6062-0211- 010
IP 65
1101-6070- 1211-010
1101- 6070- 5211-010
1101- 6070-9211-010
1101- 6071- 0211-010
1101- 6072-1211- 010
1101- 6071-2211- 010
1101- 6071-5211- 010
1101- 6071-9211- 010
1101- 6071-6211- 010
1101- 6071-7211- 010
1101- 6072-0211- 010
7000- 0050- 2200-100
