oPERATING INSTRUCTIoNS
IPC-1 BATTERy CHARGER
Item No. 20 01 80
1.
INTENDED USE
The product is intended to charge and discharge NiCd or NiMH rechargeable batteries. It provides four
independent charging slots for AA/ AAA rechargeable batteries. The charger can also optimise and test the
maximum capacity of the rechargeable batteries. Each charging slot has its own display to show various
information, such as, charging current and battery voltage.
The charging current can be selected from 200, 500, 700 to 1000 mA. If two or less batteries are inserted in
slot 1 and/or slot 4, the charging current can go up to 1500 or 1800 mA.
The charger can charge batteries of different type and size and with different capacity at the same time. It also
integrates the minus delta voltage (-ΔV) function, which monitors the voltage over the charging cycle. When
the battery pack is fully charged, the charger will switch to trickle charging automatically. Therefore the battery
will be kept at its optimum capacity. The charger also includes overheat detection to protect rechargeable
batteries from overheating.
The charger can be powered from 12 V cigarette lighter outlet or from 100 – 240 V/AC, 50/60 Hz mains
socket.
Operate and store it in dry indoor environment only.
This product fulfils European and national requirements related to electromagnetic compatibility (EMC).
CE conformity has been verified and the relevant statements and documents have been deposited at
the manufacturer.
For safety and approval purposes (CE), you must not rebuild and/or modify this product. If you use the product
for purposes other than those described above, the product may be damaged. In addition, improper use can
cause hazards such as short circuiting, fire, electric shock etc. Read the instructions carefully and keep them.
Make this product available to third parties only together with its operating instructions.
2.
DELIVERy CoNTENT
•
Battery Charger IPC-1
•
Power adapter
•
8x 2500 mAh NiMH AA rechargeable batteries
•
4x Type C battery adapters
•
4x Type D battery adapters
•
12V vehicle cigarette lighter outlet connecting cable
•
Carrying bag
•
Operating instructions
3.
SAfETy INSTRUCTIoNS
Read the operating instructions carefully and especially observe the safety information.
If you do not follow the safety instructions and information on proper handling in this
manual, we assume no liability for any resulting personal injury or damage to property.
Such cases will invalidate the warranty/guarantee.
Persons / Product
•
The product must not be exposed to substantial mechanical strain or strong vibrations.
•
The product must be protected against electromagnetic fields, static electrical fields, extreme temperatures,
direct sunlight and moisture.
•
The manufacturer's instructions for the respective batteries must be observed, before they are charged.
•
The product should not be connected immediately after it has been brought from an area of cold temperature
to an area of warm temperature. Condensed water might destroy the product. Wait until the product adapts
to the new ambient temperature before use.
•
Sufficient ventilation is essential when operating the charger. Never cover the ventilating slot of the
charger.
Batteries
•
Correct polarity must be observed while inserting the batteries.
•
Non-rechargeable batteries, rechargeable alkaline batteries (RAM), lead acid batteries and lithium batteries
must not be charged with this product. There is danger of explosion!
•
Batteries should be removed from the device if it is not used for a long period of time to avoid damage
through leaking. Leaking or damaged batteries might cause acid burns when in contact with skin, therefore
use suitable protective gloves to handle corrupted batteries.
•
Batteries must be kept out of reach of children. Do not leave the battery lying around, as there is risk, that
children or pets swallow it.
•
Batteries must not be dismantled, short-circuited or thrown into re. Never recharge non-rechargeable
batteries. There is a risk of explosion!
Miscellaneous
•
The product and batteries are not a toy and should be kept out of reach of children and pets!
•
Repair works must only be carried out by a specialist/ specialist workshop.
•
If you have queries about handling the device, that are not answered in this operating instruction, our
technical support is available under the following address and telephone number: Voltcraft
Hirschau, Lindenweg 15, Germany, phone 0180 / 586 582 7
4.

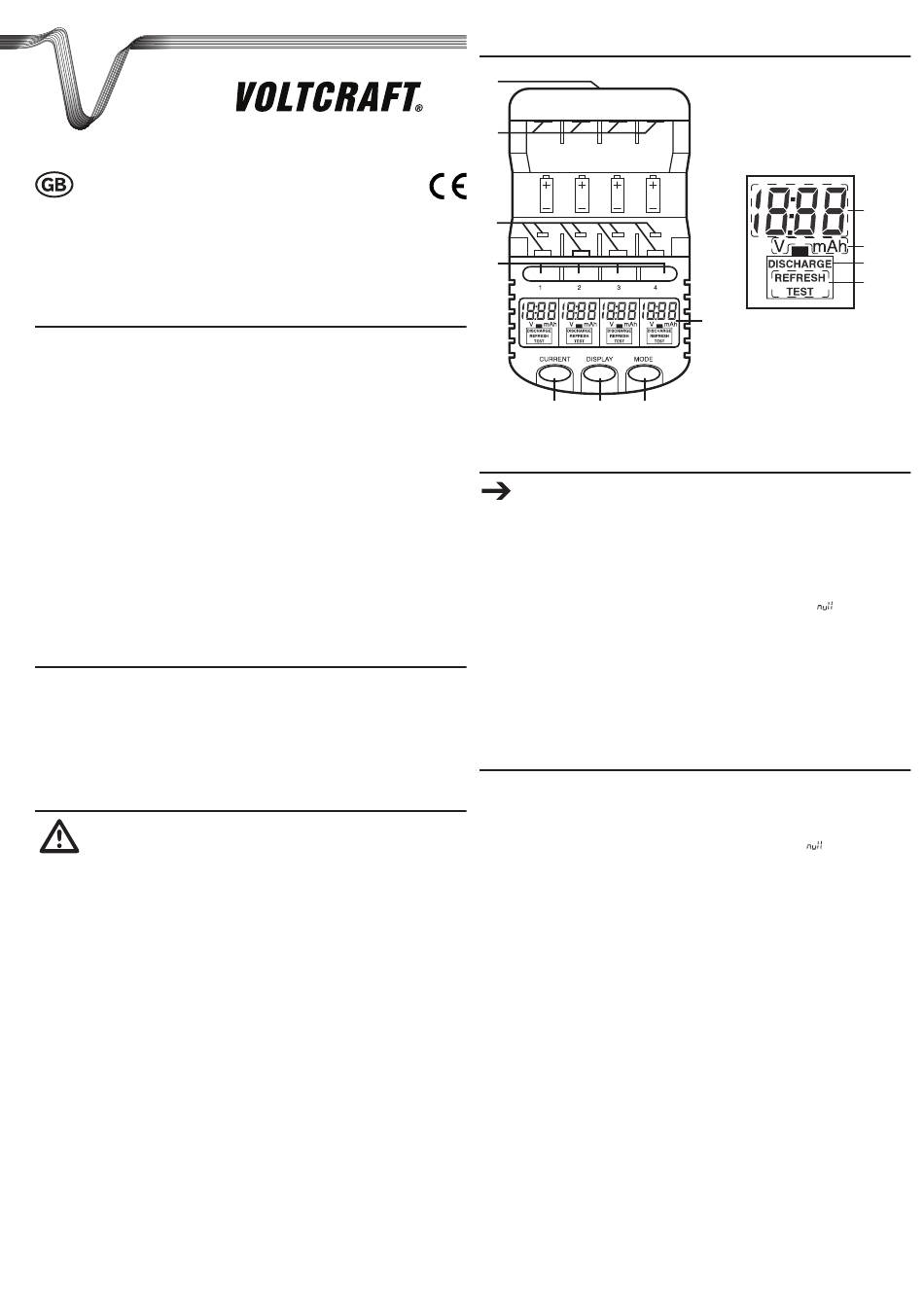

oPERATING ELEMENTS
1
2
Version 01/11
3
4
5
5.
PoWER SUPPLy
Operation of IPC1-charger on the included 12V car adapter charger at max. Charging current of
2000 mA total. Do not exceed this value.
1.
Select the desired power supply, either through a mains socket or a cigarette-lighter outlet.
a.
Through mains socket:
-
Plug the power adapter to a mains socket.
b.
Through cigarette lighter outlet:
-
Insert the cigarette lighter adapter to a cigarette lighter outlet. (metal tip = positive; side metal contacts
= negative). The red LED on the cigarette lighter plug will light up.
2.
Connect the low voltage plug to the power receptacle (1) of charger.
3.
When the charger is powered up, all the segments will light up momentarily. The "
until any batteries are inserted.
fuse replacement for the cigarette lighter plug
If the red LED of the cigarette lighter plug does not light up after being inserted into cigarette lighter outlet,
replace its fuse.
1.
Unplug the cigarette lighter plug from the cigarette lighter outlet and disconnect it from the charger.
2.
Turn the tip of the cigarette lighter plug counterclockwise to open the fuse compartment.
3.
Replace the defective fuse with a new one of the same type (please refer to "Technical Data").
4.
Close the fuse compartment.
6.
oPERATIoN
Once a rechargeable battery is inserted, its present voltage (for example, "1.12V") will be displayed for 4
seconds. Then "200 mA Charge" will be shown on display for another 4 seconds.
If "MODE" (7) or "CURRENT" (5) button is not pressed during these 8 seconds, the charging process will
start.
Afterwards, the charging current can no longer be changed without re-inserting the rechargeable batteries. If
defective batteries or non-rechargeable batteries are inserted into the charger, the "
on the display.
Mode selection
1.
Press and hold the "MODE" button (7) for 1 second to change the operating mode for all charging slots.
2.
Press the "MODE" button (7) subsequently to toggle among the "Charge", "Discharge", "Test" and "Refresh"
mode.
3.
To change the operation mode of an individual slot:
-
Press one of the number buttons (4) to select a particular charging slot.
-
Press the "MODE" button (7) to change the operating mode for the selected charging slot.
Current selection
1.
Press the "CURRENT" button (5) to set the charging/ discharging current.
The charging/ discharging current of the rechargeable battery inserted first restricts the maximum charging/
discharging current for all the remaining charging slots.
For instance, if the rechargeable battery inserted first is set to charge at 500 mA, then the second, third and
fourth rechargeable batteries can be only set to charging at a maximum current of 500 mA.
Therefore, the user is recommended to place the battery with the highest expected charging/ discharging
current into the slot first.
2.
To reset the maximum charging current, remove all four rechargeable batteries from the charging unit and
insert them anew. Then, set the desired charging current.
Charging time estimation
The charging time can be calculated by dividing the battery capacity by the selected charging current.
For example, if an AA (Micro) battery with 2500 mAh and the charging current is set to 500 mA, then
(2500 ÷ 500) hour = 5 hour
overheat protection
, 92242
®
When overheating occurs, the charging will be stopped immediately and the display will show "000 mA". The
charging process will only resume once the temperature of the rechargeable batteries drops to a safe level. If
overheat conditions persist, remove the charger from the power source and let the rechargeable batteries cool
down. The batteries should be charged at a lower current.
1.
Power receptacle
2.
Positive battery terminals
3.
Negative battery terminals
4.
Number buttons
5.
"CURRENT" button
6.
"DISPLAY" button
7.
"MODE" button
8.
Displays
8
a.
Measured value
b.
Unit of measured value
c.
Charge/ Discharge mode indicator; also
indicates the charging or discharging
cycle in refresh/ test mode
d.
Refresh/ Test mode indicator
6
7
a
b
c
d
" icon will be shown
" icon will be displayed
