6. INSTALLATION DE LA CAMERA
OPTIONS CAMERA : TEMPLATE & REVERSE IMAGE
SELECTION OF THE LOOPS OF THE CAMERA
The selection of these options is done with the camera
unpowered.

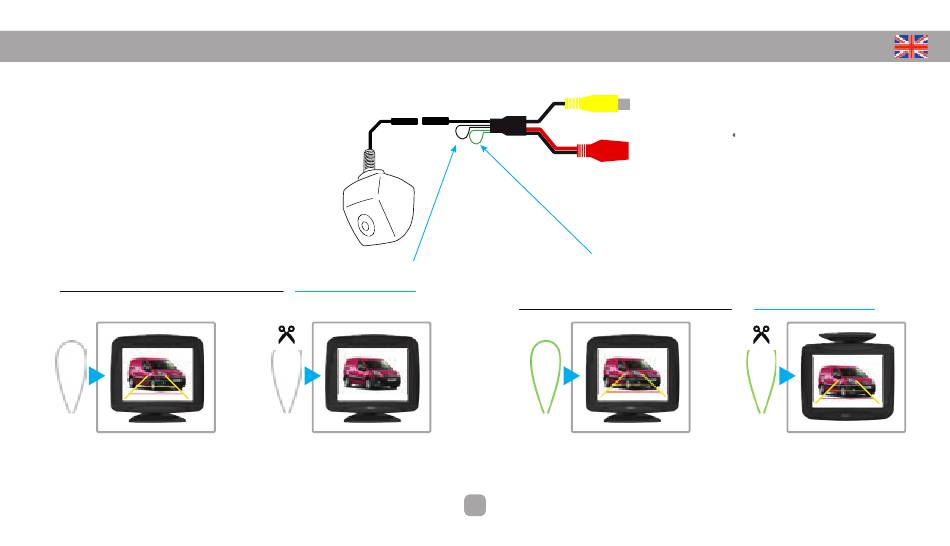

WHITE loop = TEMPLATES viewing distances
Closed WHITE loop (UNCUT) = Templates VISIBLE
Opened WHITE loop (CUT) = Templates NOT VISIBLE
The original selection is made for a positioned "horizontally" camera, a screen attached or glued top & version rear view camera (visible templates).
To change the status of one of the two loops, please first disconnect the camera (D1 connector) and then connect again after the operation.
» Factory default selection
23
GREEN loop = REVERSE UP / DOWN of the image on the screen
Closed GREEN loop (UNCUT) = Image normal
Opened GREEN loop (CUT) = Image REVERSED
» Factory default selection
