WARNINGS
• Avoid direct sunrays
• Avoid fixing the detector in spots exposed to atmospheric agents (rain, wind, big thermic variations etc...)
• Avoid fixing the detector near reflecting objects that might influence it (marble, glass, strobe lights etc..).
• Install the detector at a distance of at least 5 cm from shutters / blinds / mosquito nets / windows
Do not install near an air conditioner or heat exchangers that may cause temperature fluctuations
•

IMPORTANT

Procedure for Dip-switch status modification:
• Remove the power supply by removing the battery (or setting DIP1 to OFF)
• Change the Dip-switches settings
• Wait 5 seconds and switch on again (insert battery or set DIP1 to ON)
Open the detector by unscrewing the locking screws A and B, position the base of the detector in the middle of upper
• • • •
jamb of window or door to protect and mark the position of fixing holes on the wall. Drill the two holes by using a bit of Ø 5
mm and insert the two dowels included in the package.
A
RADIO
TRANSMITTER
Place the base of the detector to the wall and proceed with the wiring terminal block and the dip switch settings according
• • • •
to the following schemes:
Connections:
J1

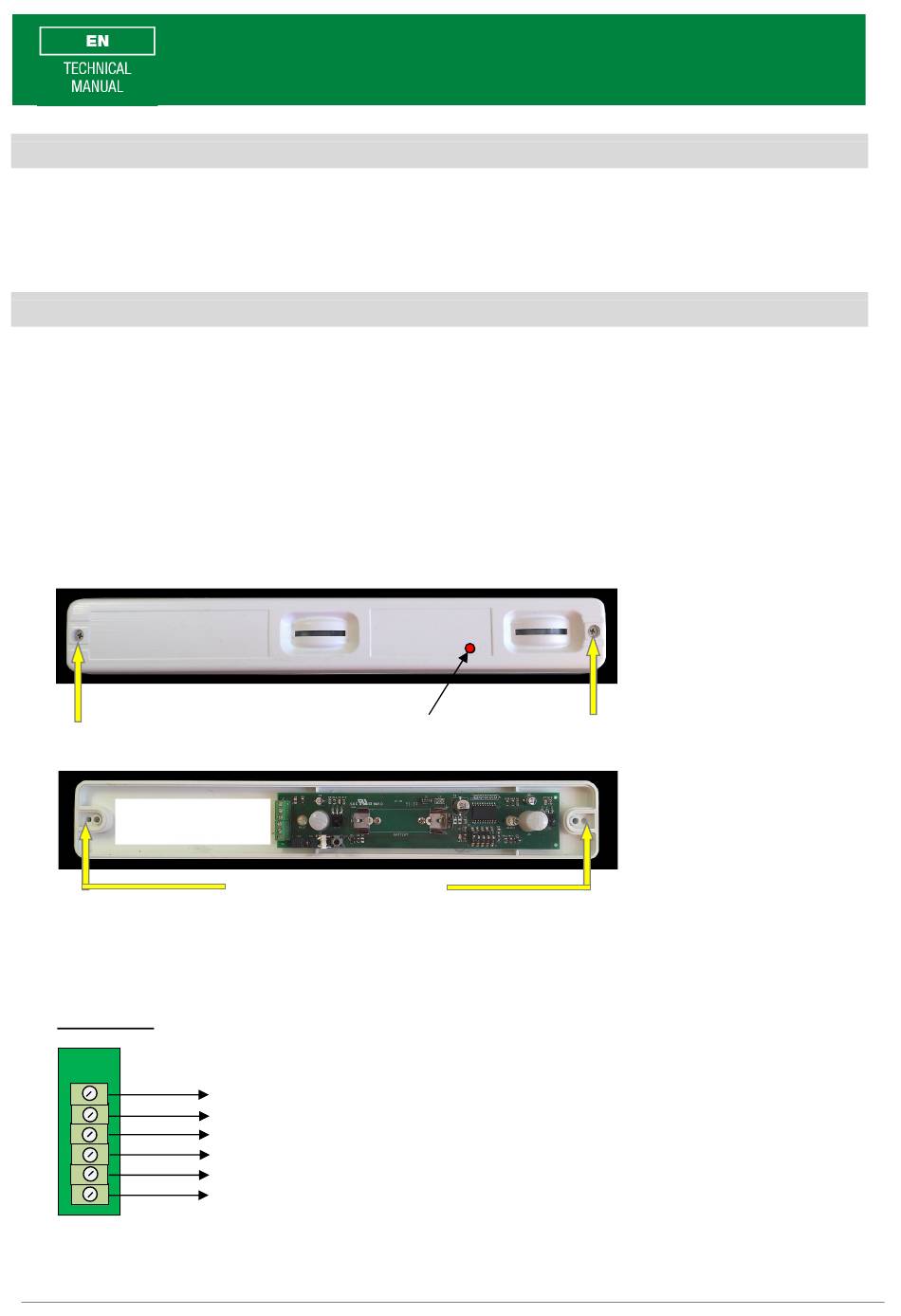

PICTURE 1
PICTURE 2
HOLES FOR FIXING BASE
Positive transmitter power supply
Negative transmitter power supply
Allarm
Allarm
Tamper
Tamper
LED
B
