Setting an indoor unit address and installation option
Heater operation when the SEG9 of 02 series installation option is set to using heater
(*3)
e.g. 1) Setting 02 series SEG9 ="1" / Setting 05 series SEG18 = "0": heater is turned on at the same time as the heating
thermostat is on, and turned off when the heating thermostat is off.
e.g. 2) Setting 02 series SEG15 ="2" / Setting 05 series SEG18 ="A": Room temp. ≤ set temp. + f (heating compensation temp.)
‐ Heater is turned on when the temperature is maintained as 8.1 °F (4.5 °C) for 10 minutes.
Room temp. > set temp. + f (heating compensation temp.)
‐ Heater is turned off when the temperature is maintained as 8.1 °F(4.5 °C )+1.8 °F(1 °C ) [1.8 °F(1 °C ) is the
Hysteresis for On/Off selection.]
SEG 3, 4, 5, 6, 8, 9 additional information

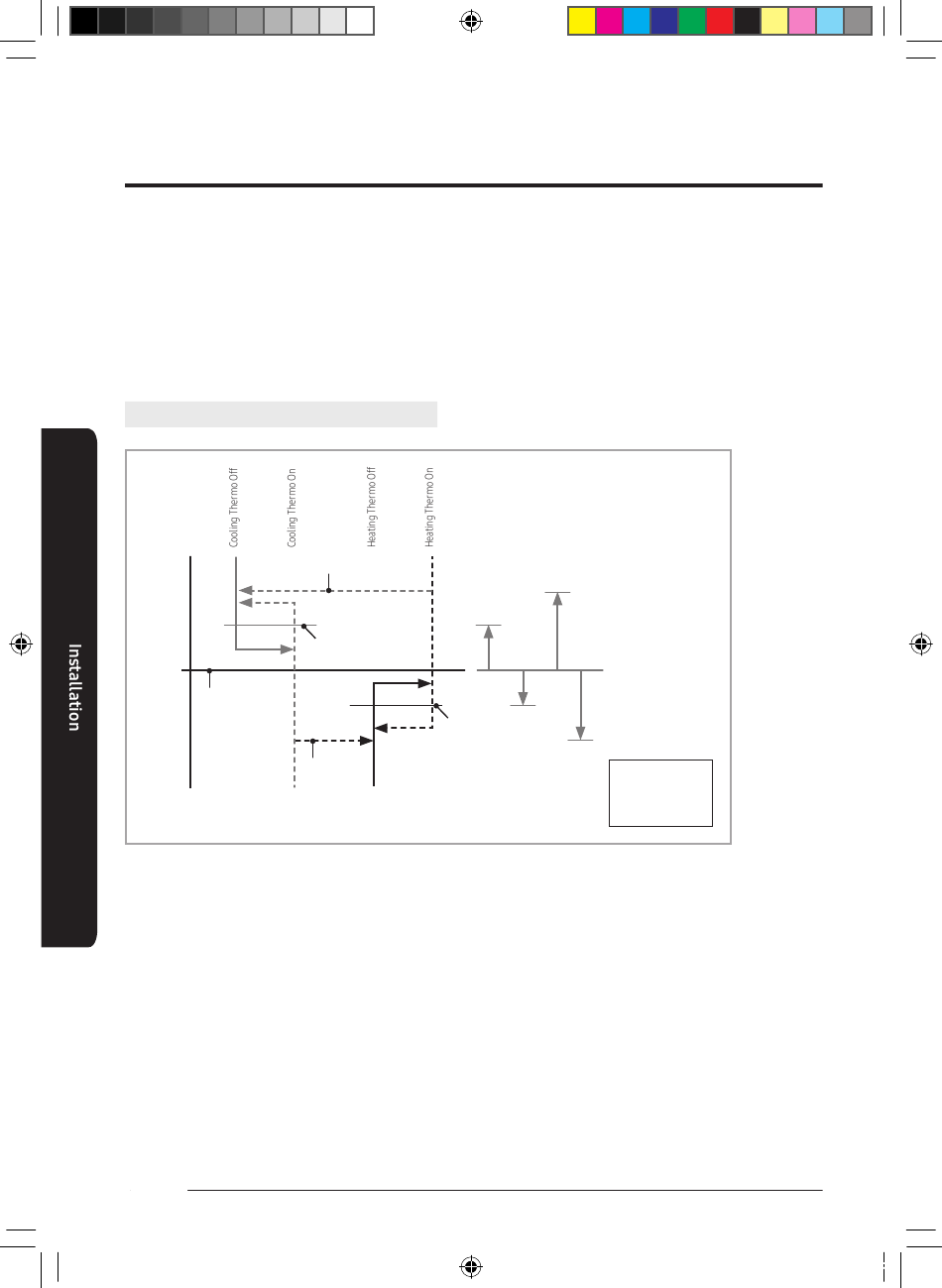

When the SEG 3 is set as "1" and follow Auto Change Over for HR only operation, it will operate as follows.
Temp.
Ts
Set temp.
for Auto mode
Cooling/Heating mode can be changed when Thermo Off status is maintained during the time with SEG9.
42 English
AM072TNZDCH_IM_DVM V-AHU_AA_EN_.indd 42
Standard temp. for
→
Heating Cooling
c
b
Standard temp.
for Cooling
a
Standard temp.
d
Standard temp.
→
for Cooling
Heating
B C
D
A
for Heating
A : Set with SEG4(˚C)
B : Set with SEG5(˚C)
C : Set with SEG6(˚C)
D : Set with SEG8(˚C)
