FLAT

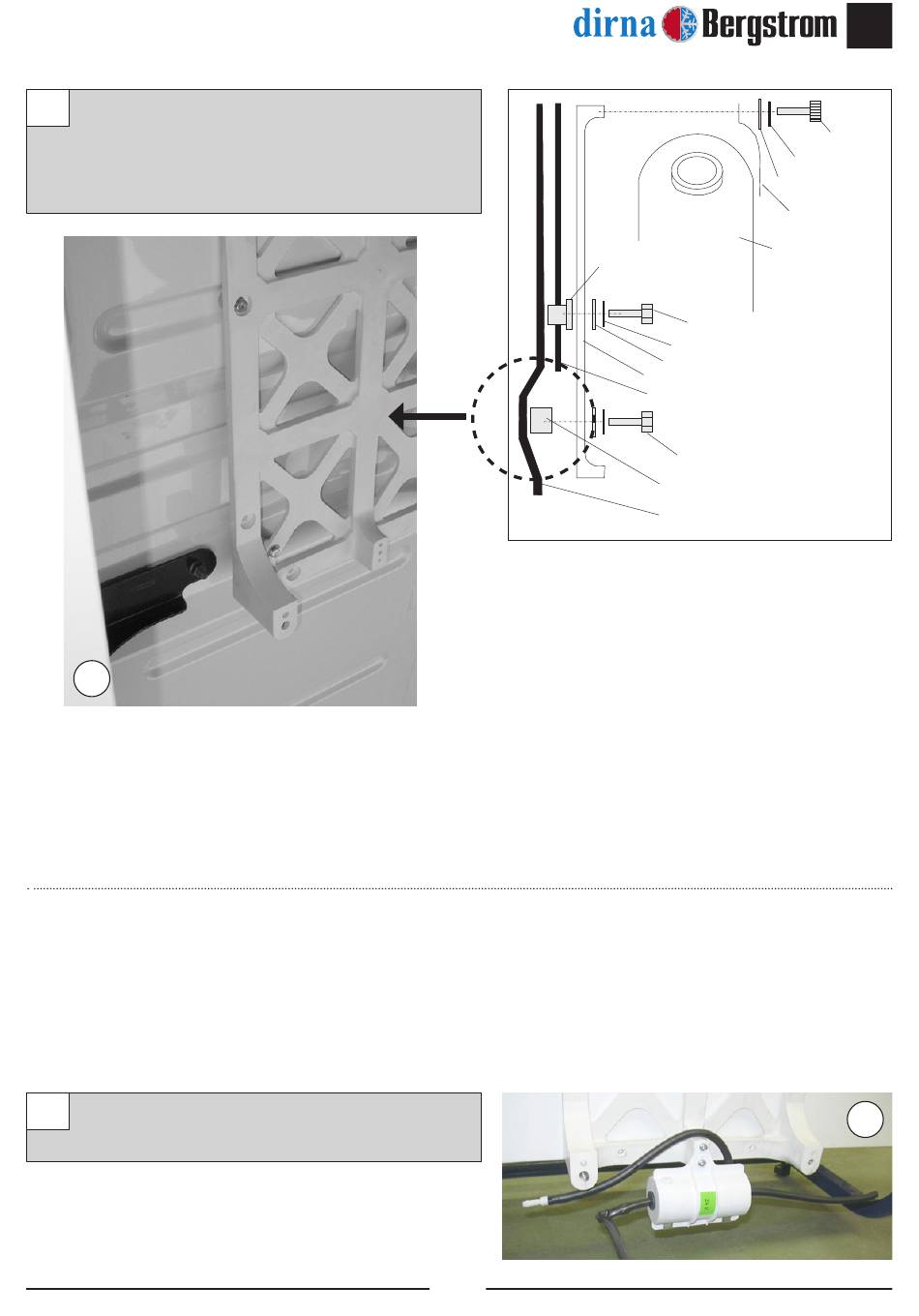

10 Place M6 rivet nuts and fix the support with
M6/100x30 screws.
(*) – Where it does not lean on the even part,
place a 10mm separator and screw M6/100 x 40.
10
11 Fasten the tank pump unit with (2) sheet metal
screws 5.4x19 mm.
Rivet nut
23
6/100x30 allen
Grower washer Ø 6
Flat washer Ø 6
(4) Supports
Tank
6/100x30
Grower washer Ø 6
Flat washer Ø 8
Support
Rear part cab
6/100x40 (*)
10 mm separator (*)
Rear part cab (*)
EN
®
11
