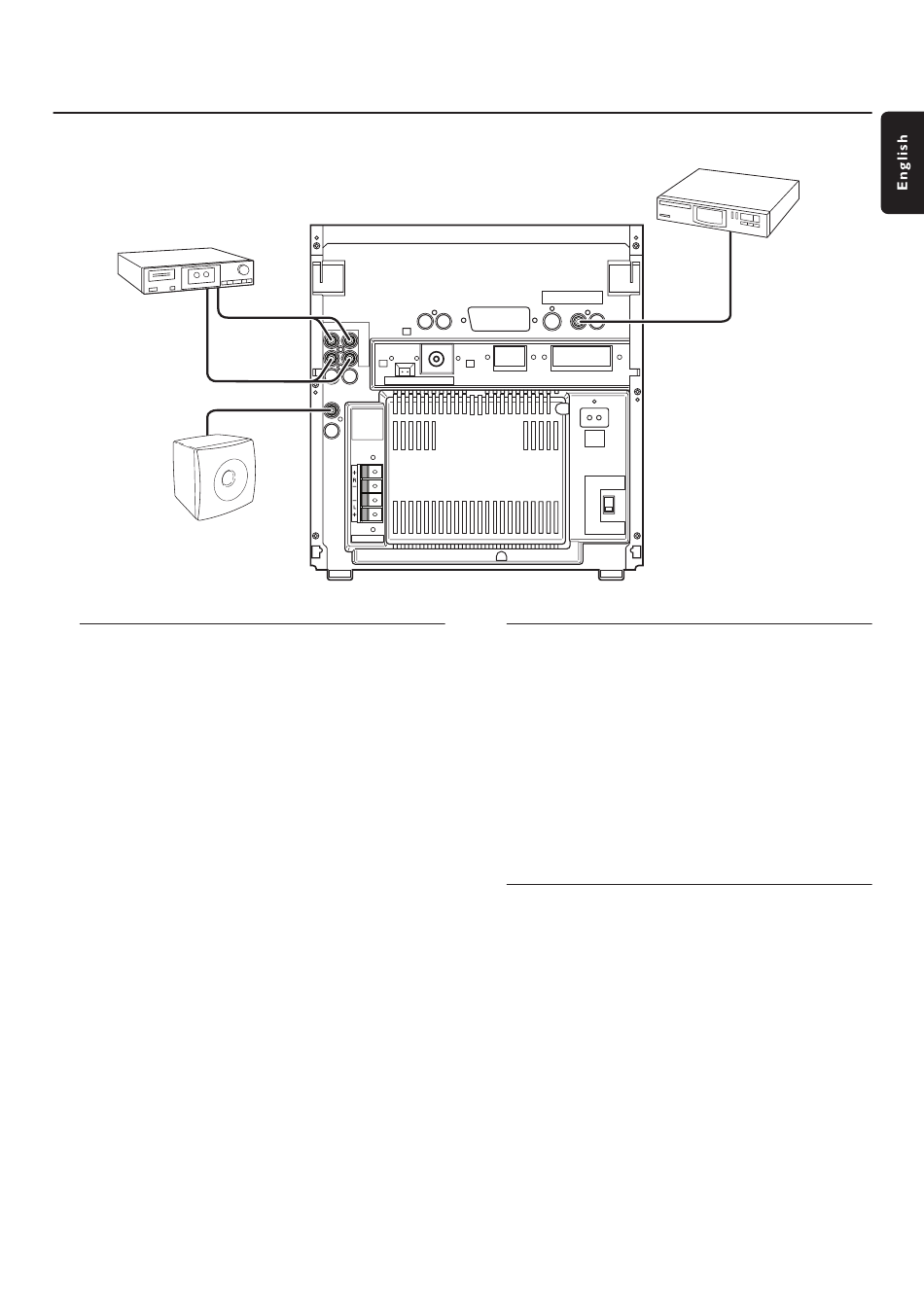

Analogue audio connections

AUX/CDR IN L/R
It is possible to use an additional appliance, e.g. tape
recorder,TV or VCR, with the set.
1
Connect the red plug of a cinch cable to the red socket
AUX/CDR IN R and the white plug to the white socket
AUX/CDR IN L.
2
Connect the other end of the cinch cable to the audio
outputs of the additional appliance.
3
Press AUX repeatedly to select the analogue input for the
appliance.
AUX ANALOG H: for standard level input sources
➜
AUX ANALOG L: for low level input sources (when
➜
sound of external source is too low compared to the
internal tuner or CD changer)
4
Operate your appliance as usual and adjust volume and
sound with the set.
It is not possible to connect a turntable directly to
AUX/CDR IN L/R. If you wish to use a turntable
with the set, you have to connect an amplifier to
AUX/CDR IN L/R on the set.Then connect the
turntable to the amplifier.
LINE OUT L/R
You can use these outputs for playback or recording on any
analogue audio equipment, e.g. amplifier or tape recorder.
G Use a cinch cable to connect the analogue audio inputs of
the additional appliance with LINE OUT L/R on the set and
operate your appliance as usual.
R L
LINE
OUT
AUX/
CDR
IN
AM ANTENNA FM ANTENNA
SUBWOOFER
OUT
SPEAKERS 6 Ω
1
2
3
1
2
CD PLAYER
DIGITAL
IN
AC
MAINS
~
VOLTAGE
SELECTOR
110V-
127V
220V-
240V
NOT FOR ALL
VERSIONS

Digital audio connections

DIGITAL IN
You can use this coaxial input for recordings from any digital
audio equipment with a digital coaxial output e.g. CD player
or DVD player.
Use a coaxial cable to connect the coaxial output of the
additional appliance with DIGITAL IN on the set.
Press AUX repeatedly to select the digital input for the
appliance.
AUX DIGITAL is displayed.
➜
Operate your appliance as usual.

Connecting a subwoofer

A subwoofer can be used to enhance the bass
performance of your set dramatically.
Use a cinch cable to connect the input of the subwoofer
with SUBWOOFER OUT on the set.
Follow the instructions supplied with the subwoofer.
