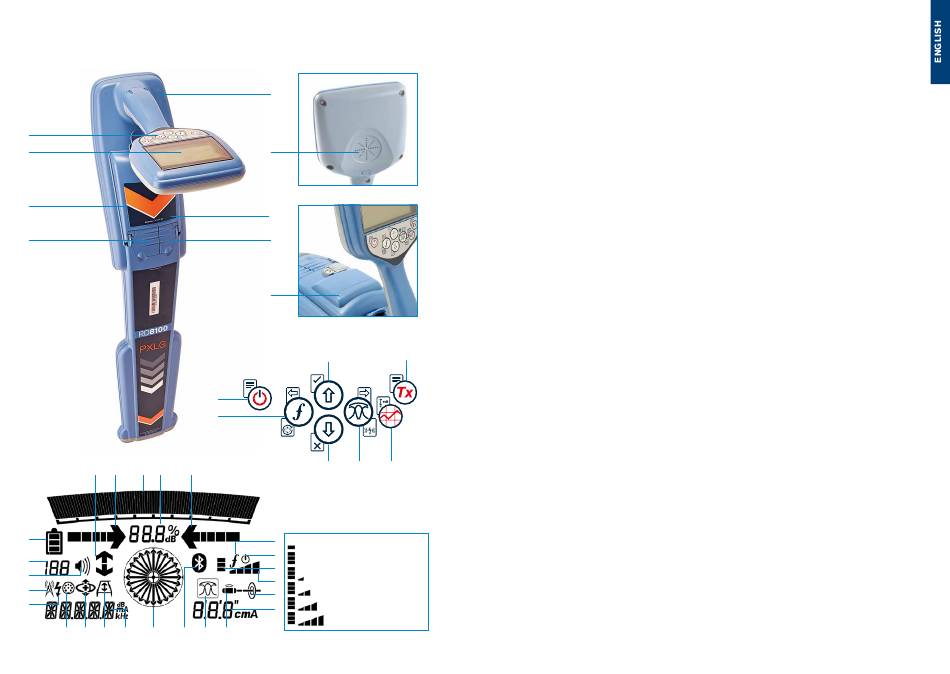

Locator features
1.
Keypad.
2.
LCD with auto backlight.
3.
Speaker.
4.
Battery compartment.
5.
Optional Lithium-Ion battery pack.
6.
Accessory connector.
7.
Headphone connector.
8.
Bluetooth
9.
USB port
(inside battery compartment).
Locator keypad
10. Power key.
11. Frequency key.
12. Up and down arrows.
13. Antenna key.
14. Survey key.
15
15. Transmitter key.
Locator screen icons
16. Signal strength bargraph with
peak marker.
17. Signal strength readout.
18. Null / Proportional Guidance arrows.
19. Battery level.
20. Sensitivity readout / Log number.
21. Volume level.
22. Current Direction arrows.
23. Radio Mode icon.
24. Power Mode icon.
25. Accessory / Measurement icon.
26. CD Mode icon.
27. A-Frame icon.
28. Frequency / current / menu readout.
29. Bluetooth status icon:
Flashing icon means pairing is in
®
module antenna.
progress. Solid icon indicates a
connection is active.
30. Antenna mode icon:
Indicates antenna mode selection:
Peak / Null / Broad Peak / Peak+ /
Guidance.
31. Sonde icon: Indicates that a sonde
signal source is selected.
32. Line icon: Indicates that a line signal
source is selected.
33. Compass: Shows the orientation
of the located cable or sonde relative
to the locator.
34. Transmitter communication status
– confirms successful iLOC
communication.
35. Transmitter standby indicator.
36. Depth readout.
GPS equipped locators only:
37. GPS Status.
38. GPS Signal quality.
