Installation Instructions

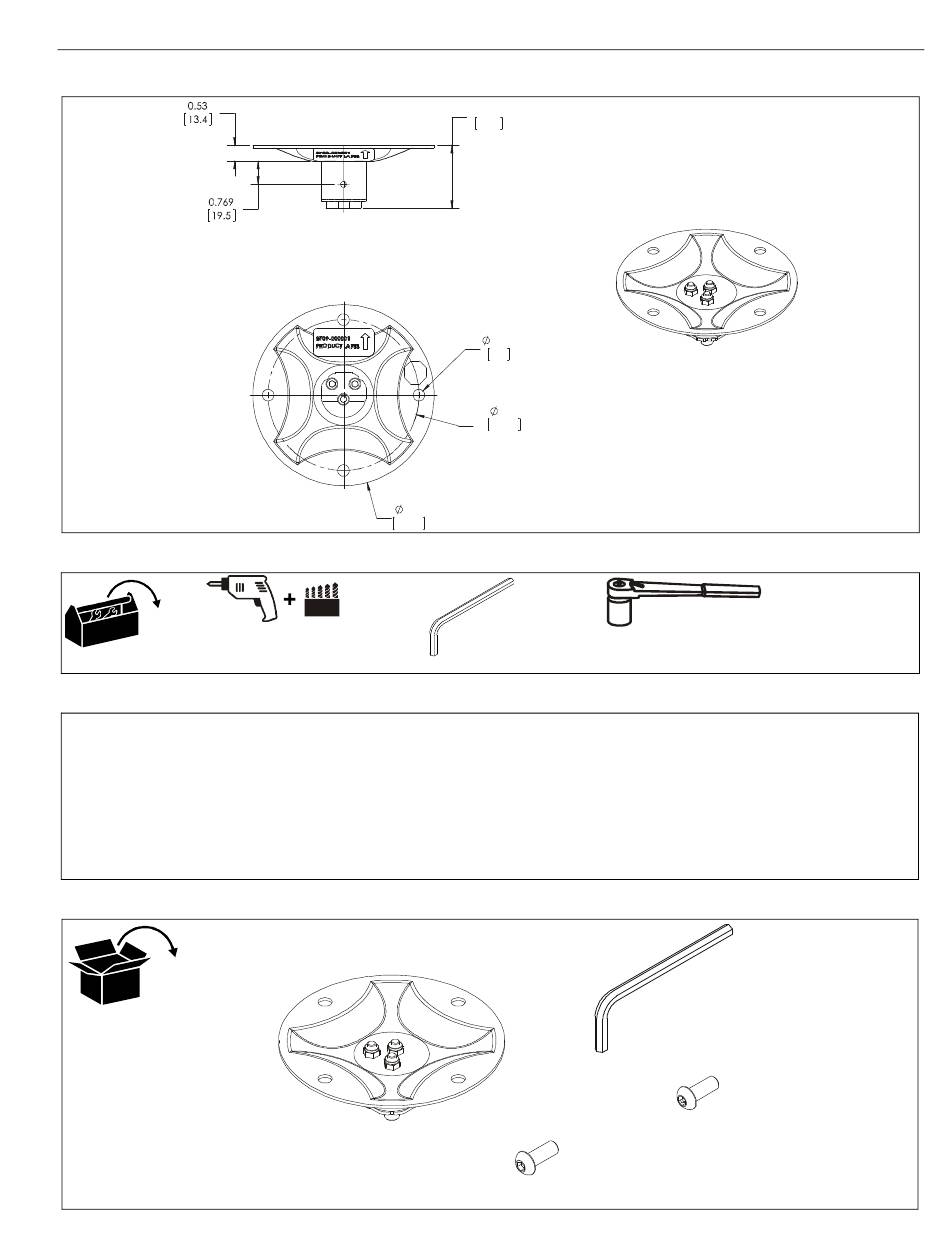

DIMENSIONS
TOOLS REQUIRED FOR INSTALLATION
7/32" (wood studs)
3/8" (concrete-UX10 anchors)
5/16" (concrete-AF8 anchors)
HARDWARE REQUIRED (NOT INCLUDED)--Dependent on installation method
1.
Install to wood ceiling joists
•
5/16" x 2-3/4" (minimum length) lag screws (Qty. 4)
2.
Install to threaded rod
•
3/8" ASTM A307 threaded rods, 16 threads/square
inch (Qty. 4)
•
3/8" channel nuts (Qty. 4)
•
3/8" jam nuts (Qty. 8)
•
3/8" washers (Qty. 8)
PARTS
2.10
53.4
0.385
9.8
5.00
127.0
BOLT CIRCLE
6.00
152.4
5/32"
(security -
included)
3.
A (1)
(CPA115
Ceiling Plate)
C (2)
M6 x16mm
DIMENSIONS:
1/2"
Install to solid concrete
•
UX10 or AF8 anchors (Qty. 4)
•
5/16" flat washers (Qty. 4)
•
5/16" x 2-3/4" bolts (Qty. 4)
B (1)
5/32"
(security)
D (2)
M6 x16mm
(security)
CPA115
INCHES
[MILLIMETERS]
3
