The buzzer will continuously emit an alarm signal and the graphic display will flash at a
measurement value > 20,1 kV.

Hint:
-
For measuring values above 20 kV, keep the instrument at a distance of 60 mm. In
that case, multiply the reading by a factor of 2. Then the maximum measured value is
40 kV.
Warning:
Attempts to measure too high a charge may damage the sensor.

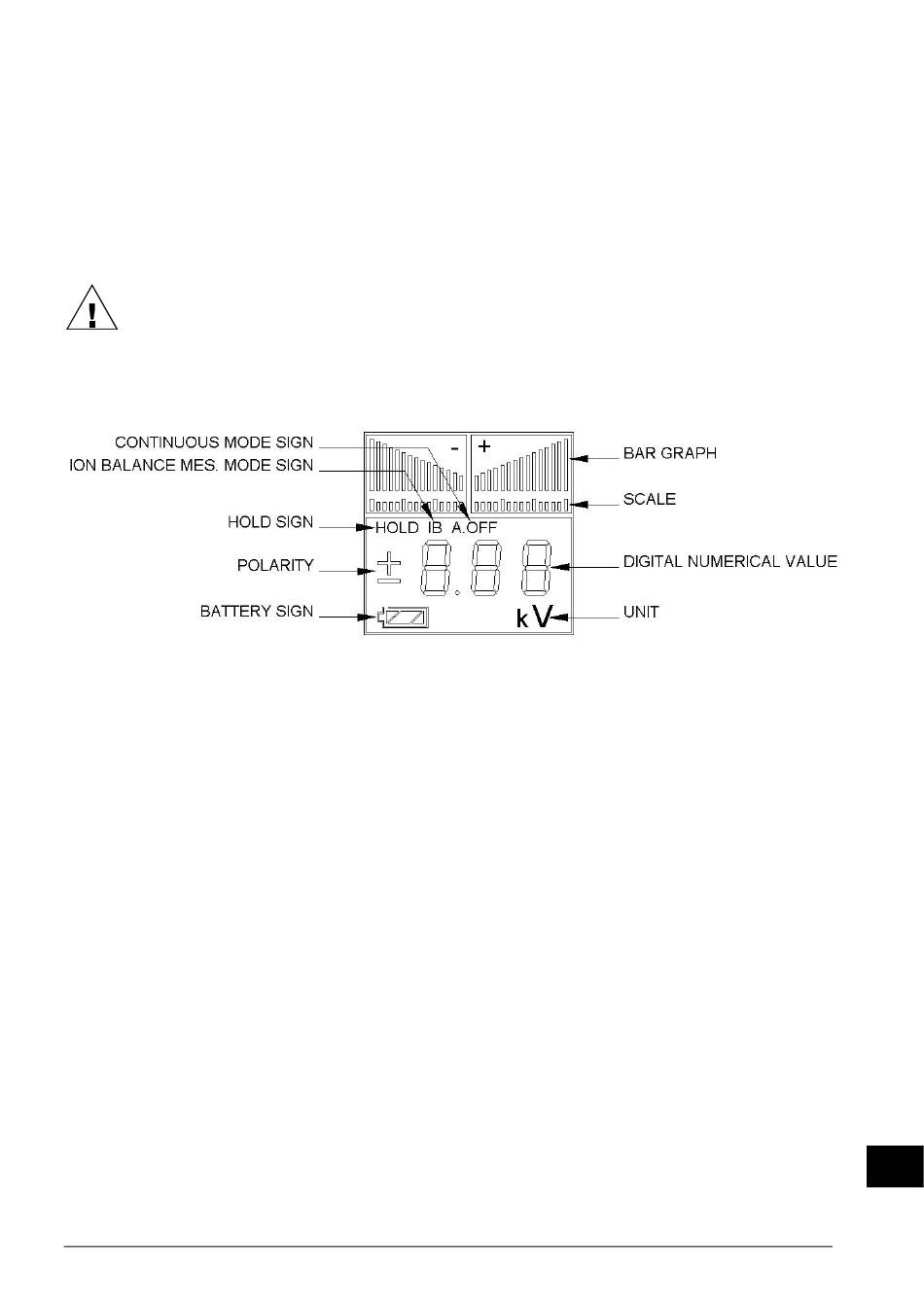

7.3. Reading the display

The measured values are shown digitally and graphically on the display. The polarity is shown
by [+] or [-]. Graphically [-] negative is shown in blue and [+] positive in red.
 Measurement values < ± 1.49 kV are shown with an accuracy of 2 decimals.
 Measurement values  ± 1 -  20 kV are shown with an accuracy of 1 decimal.
 Measurement values between 1 and 1.5 kV are within the hysteresis range and are shown
with an accuracy of 1 or 2 decimals, depending on the LO or HI measuring range.
 The measurement value is shown without decimal during ion balance measurements.
