Using the Optional Input
Board
Prepare the optional input boards mentioned below
depending on your system requirements, and attach them
to the input board attachment part on the left side of the
projector.
• LKRI-001 analog input board
• LKRI-002 HD-SDI (4:2:2) input board
• LKRI-003 HD-SDI/DC-SDI (4:4:4) input board
For information on the input boards not mentioned above,
refer to the operating instructions supplied with each input
board.

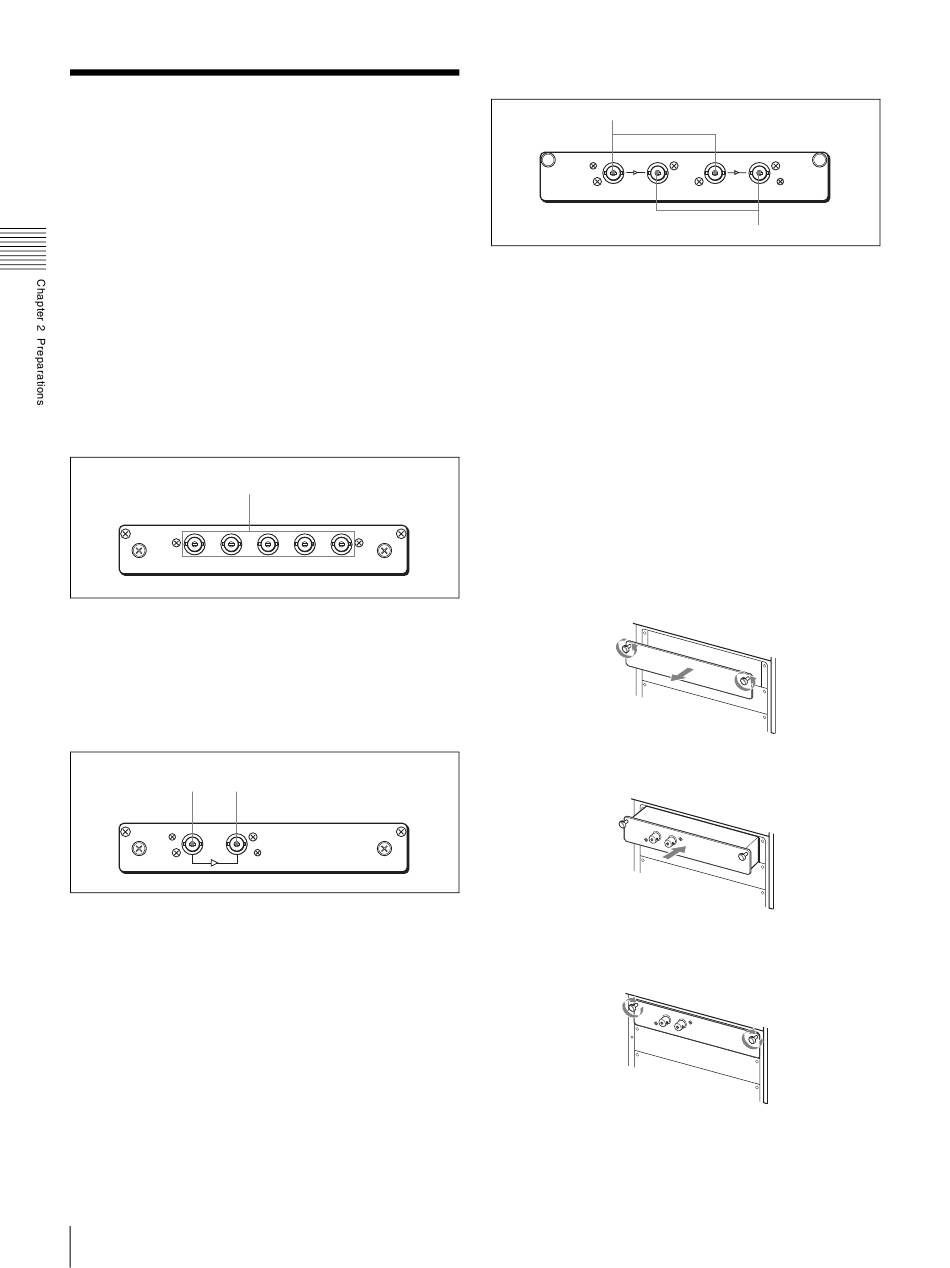

Connectors on the LKRI-001
R(P /C )
r r
a R (P
/C )/G (Y/Y)/B (P
r r
connectors (BNC type)
Inputs the RGB, component or high definition signal from
a computer or component equipment.
Connectors on the LKRI-002
1
IN
a IN (HD-SDI input) connector (BNC type)
Connect to the output connector of an HDCAM video
recorder/player to input an HDTV serial digital signal.
b OUT (HD-SDI output) connector (BNC type)
Outputs a digital signal input through the IN connector
when the projector is turned on.
8
GB

Using the Optional Input Board

1
G(Y/Y) B(P /C ) HD VD
b b
/C )/HD/VD input
b b
2
OUT
Connectors on the LKRI-003
1
IN OUT
LINK A
a LINK A/LINK B IN (HD-SDI input) connectors
(BNC-type)
Connect to the output connectors of an HDCAM-SR video
recorder/player to input an HD-SDI or DC-SDI signal.
Connection of both LINK A and LINK B IN connectors
allows Dual-link HD-SDI or Dual-link DC-SDI signal
input.
b LINK A/LINK B OUT (HD-SDI output)
connectors (BNC-type)
Output the input signals supplied from the LINK A/LINK
B IN connectors by loop-through when the projector is
turned on.
Attaching the input board
1
Loosen the two screws fully and remove the panel.
2
Push in the input board along the rails.
IN
O U T
3
Tighten the two screws firmly with a torque of 0.8±0.1
·
N m.
IN
To remove the input board, loosen the screws fully and
pull it out.
IN OUT
LINK B
