SET UP AND OPERATION

CAUTION
connecting the saw to a power source or turning the motor
ATTENTION
on.
ATENCI
Carefully open the container and remove all saw
components and packing materials. Ensure that
you have checked each item with the exploded
view before discarding the container or packing
materials. The contents of the container are as
follows:
• Water Tank • Blade Guard Support
• Spanner A • Blade Guard
• Spanner B • Parallel Guide
• 7 in. (180 mm) • Angle Gauge
Continuous Rim
Diamond Blade
The following pages illustrate the step-by-step installation
of various components and operation of this saw. Read
instructions completely before operating this saw!
attaching the tile cutter on a
worKbench:

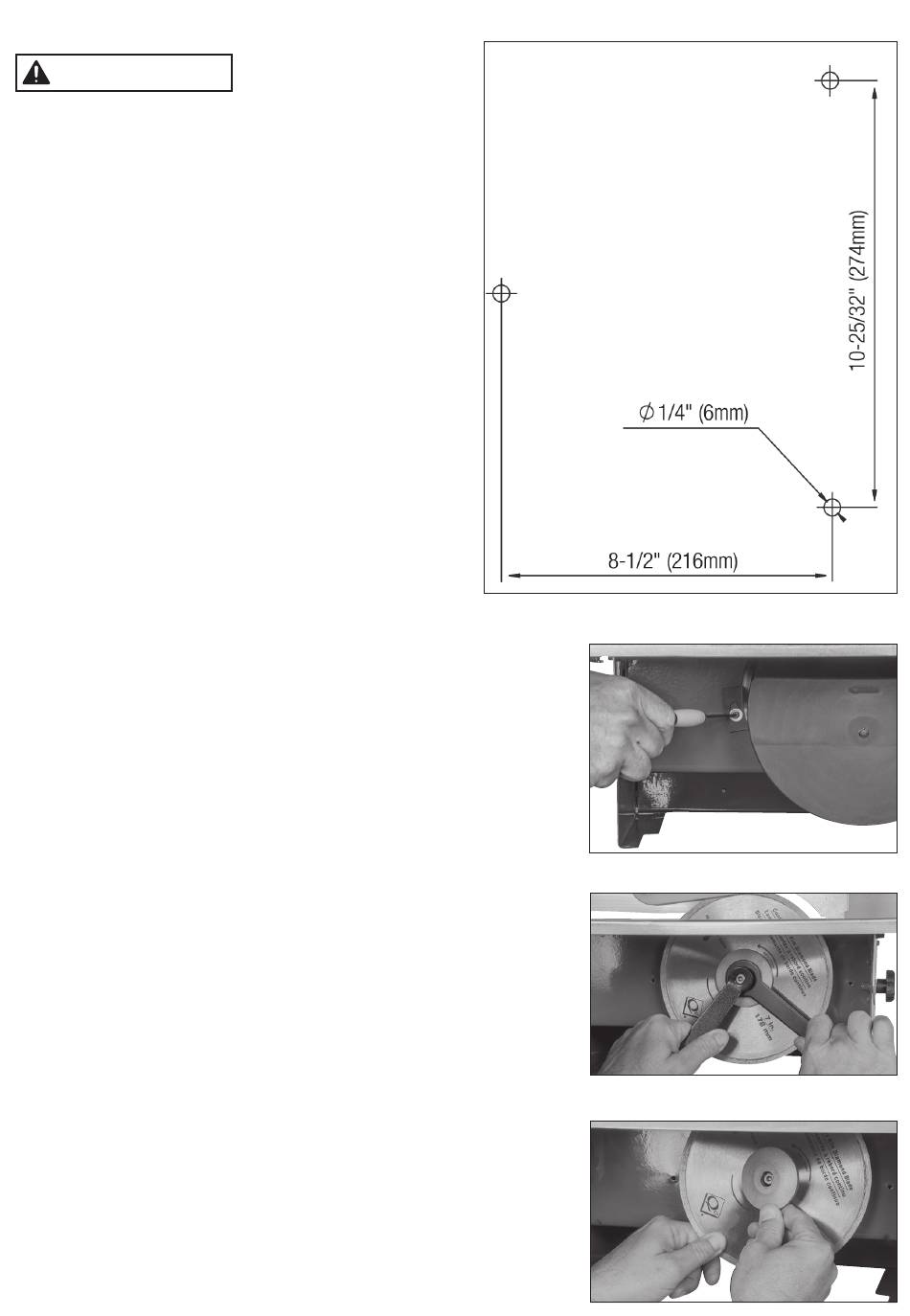

1. Drill three holes in the workbench the same as
dimensions in figure 3.
2. Fasten the machine with bolts on to the workbench.
blade installation:
Use with 7 in. Continuous Rim Diamond Blade.
1. Unplug the machine from the power source.
2. Remove the water tank from underneath the machine.
3. Remove the lower blade guard by removing the screws
and washers on each side of the lower blade guard
figure 4.
4. Use Spanner A and Spanner B to loosen and remove the
arbor nut from the motor spindle as shown in figure 5.
5. Slide the diamond blade and the outer flange over the
end of the motor spindle. Note: Make sure the directional
arrow printed on the diamond blade is pointing in a
counter-clockwise direction when viewing the machine
facing the arbor nut. figure 6.
6. Thread and tighten the arbor nut onto the motor spindle
to secure the diamond blade.
7. Re-install the lower blade guard and water tray.
filling and draining the water tray:
1. Fill the tray with water to cool blade during operation of
the tile saw (up to the max fill line).
2. Remove the tray and pour the water out when you are
finished using the saw.
Follow all of the Assembly
& Installation Instructions
completely before
N
Ó
FIGURE 3
FIGURE 4
FIGURE 5
FIGURE 6
- 7 -
