ELECTRICAL CONNECTIONS

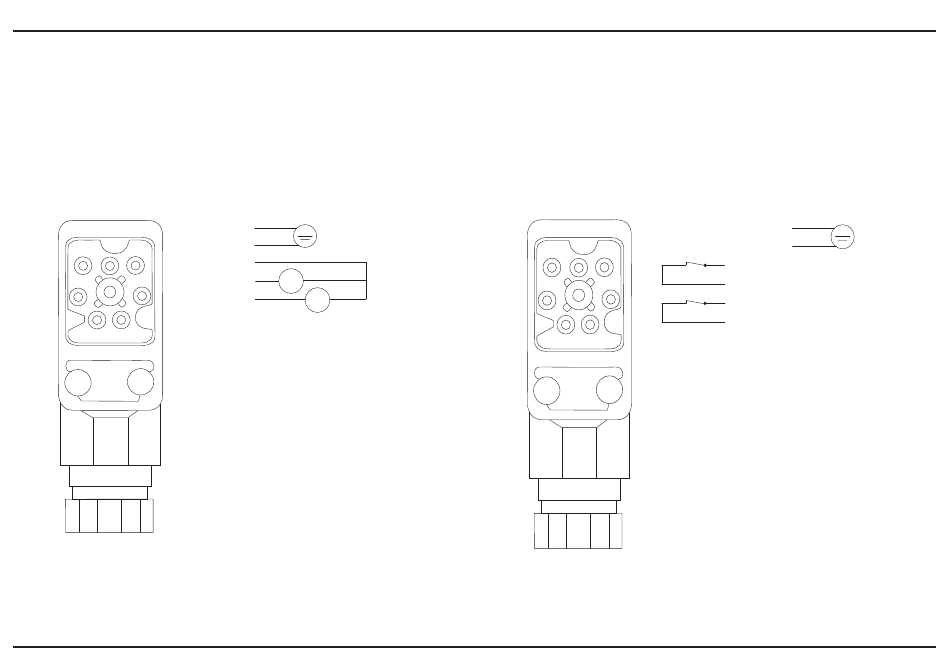

Analogue output:
1 V+
2 GND
3 GND
6 1
7
4 OUT1
2
5
5 OUT2
6 NC
4 3
7 NC
10...30V DC
V
mA
V
mA
page 21
Relay output:
6 1
7
2
5
3
4
EE381
1 V+
10...30V DC
2 GND
3 NC11
4 NC12
5 NC21
6 NC22
7 not connected
