ABB-Welcome M

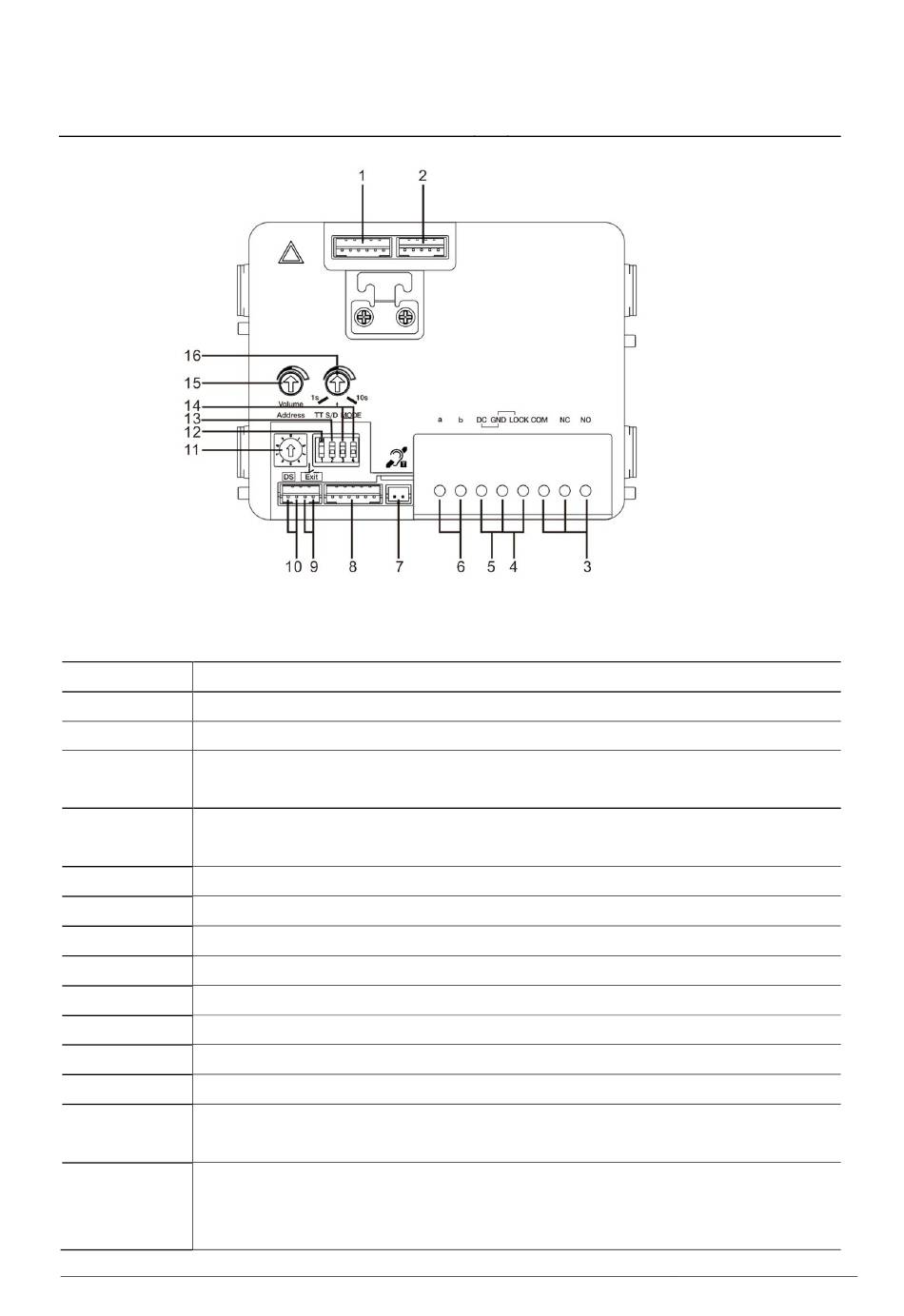

Fig. 2 Terminal description
No. Functions
1 Connector for camera module
2 Connector for device software update
3 Plug-in clamps (COM-NC-NO) for floating output, door opener (30VAC/DC
1A)
4 Plug-in clamps (Lock-GND) for door opener (18V 4A impulsive, 250 mA
holding)
5 Plug-in clamps (DC-GND) for additional power supply
6 Plug-in clamps (a-b) for Bus connection
7 Connector for induction loop module
8 Connector for next module
9 Connector for exit push button
10 Connector for sensor for checking the door status
11 Rotary switch for setting the address of OS (1-9)
12 Set feedback tones for push buttons: ON/OFF
13 Configure push buttons in a single column or double column mode (ON=
double column; OFF= single column)
14 Configure functions of the 1
3->OFF, 4->OFF=call indoor station/call indoor station;
3->ON, 4->OFF=switch on lighting / call indoor station;
|
Terminal description
st nd
/ 2 push button.
