ABB-Welcome M
Wires

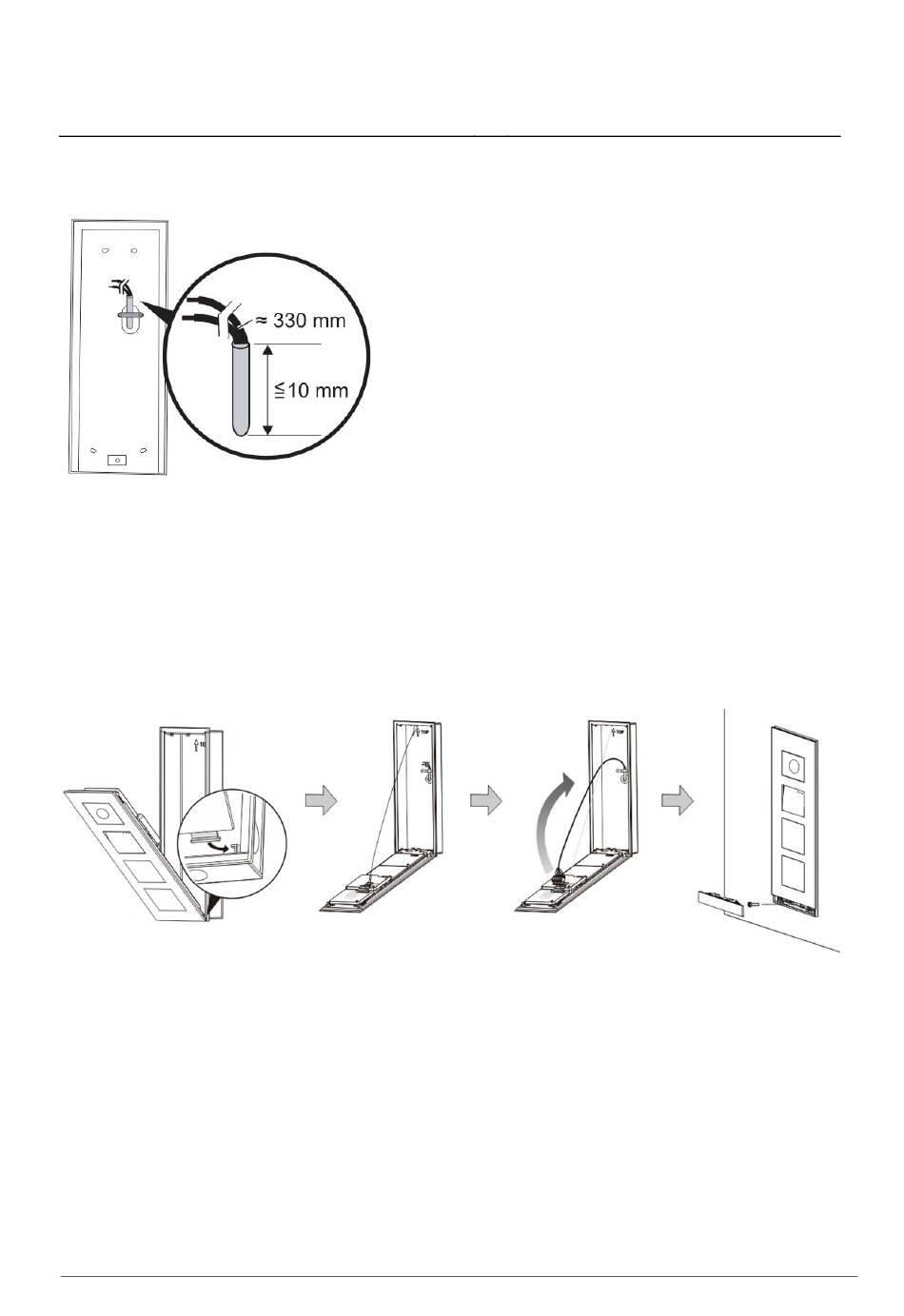

Fig. 29 Mounting
.
1 Prepare the installation box.
2. Strip the wires.
– The insulated section of the cable end must not be longer than 10 mm.
Assemble the frame into the flush-mounted box
Fig. 30 Mounting
1. Hang the device in the installation box.
2. Fasten the safety loop.
3. Connect the wires into the enclosed clamp and plug the clamp onto the contact pins;
Fold the device and shut it until it audibly snaps in.
4. Screw on the front of the device.
|
Mounting / Installation
