User's Manual
MASTERLIGHT LED 1000
Dear customer, congratulations on your purchase of the new KaWe examination light. The innovative technology and design of this new genera-
tion of LED examination lights will help you to keep your professional edge.
Advantages of LED technology: a lamp life of at least 40,000 hours and hardly any noticeable heat build-up near the doctor's head or on the
area of the patient's body that is being examined. The advantages of conventional illumination technology with halogen and gas-discharge light
bulbs have been maintained: natural colour reproduction, exact illumination of the treatment area and easy positioning of the light.
TABLE OF CONTENTS
1. Safety information ..........................................................page 12
2. Short description of the KaWe examination light ..........page 13
3. Assembly instructions ................................................... page 13
4. User's manual ................................................................. page 14
4.1 Stand ...............................................................................page 14
4.2 Operating the light ......................................................... page 15
4.2.1 ON/OFF switch ................................................................ page 15
4.2.2 Positioning ..................................................................... page 15
5. Cleaning ......................................................................... page 15
5.1 Stand .............................................................................. page 15
5.2 Light body ....................................................................... page 15
5.3 Protective screen ............................................................. page 15
6. First use and maintenance ............................................. page 16
6.1 Procedure for first use and maintenance ....................... page 16
1. SAFETY INFORMATION
When handling the light, the instructions given in the User's Man-
ual must be followed.
CAUTION: This device is not intended for use in areas in which
explosions may occur. This lamp is classified as a class 1 device ac-
cording to the medical products law.
Prior to assembly, store the KaWe examination light in its packaging
in the room in which it will be used for at least 24 hours in order to
compensate for transport-related temperature fluctuations.
Please read these instructions thoroughly and carefully and fa-
miliarise yourself fully with this product before using it in order to
benefit from all the advantages of the lamp system and to avoid the
possibility of damaging it.
12
6.2 Adjusting the arm .......................................................... page 16
7. Technical data ................................................................. page 16
7.1 Photometric data ........................................................... page 16
7.2 Electrical data ................................................................. page 16
7.3 Technical data for stand ................................................ page 17
7.4 Electrical installation information .................................. page 17
7.5 Weights .......................................................................... page 17
7.6 Environmental conditions ...............................................page 17
7.7 Important information .................................................. page 17
8. CE-label .......................................................................... page 17
9. Disposal .......................................................................... page 17
10. Electromagnetic compatibility tables .............................page 18
11. Warranty ..........................................................................page 21
Repair and maintenance work on the KaWe examination light is only
to be carried out by us or by a location expressly authorised by us to
perform such work.
The safety of the KaWe examination light is only guaranteed if repairs
and changes are performed by the manufacturer itself or by a location
that guarantees that the safety rules will be followed.
The KaWe examination light may not be modified in any way!
The manufacturer is not responsible for damage to persons or oth-
er objects if the KaWe examination light is used incorrectly or for a
non-intended purpose. Disassembly of the light body from the spring
arm is to be carried out in reverse order of assembly and may only be
carried out after the arm has been raised to its maximum height and
is in a horizontal position.
Prior to each use, check the KaWe examination light to ensure that it is
in perfect working order.
General information
• All KaWe examination lights are delivered with all of the parts re-
quired for assembly and connection.
• In order to reduce the packaging volume, the five-footed base of the
floor stand comes disassembled. The stand post is always assembled
as one piece and must only be attached to the base with its lower
fastening screw.
• The KaWe examination light (stand post or cross arm) is equipped
with an integrated power cord and safety plug.
• The electrical outlet used must be installed according to IEC and VDE
0107 regulations.
• Check to see if there is a Schuko electrical outlet within the operating
range of the light.

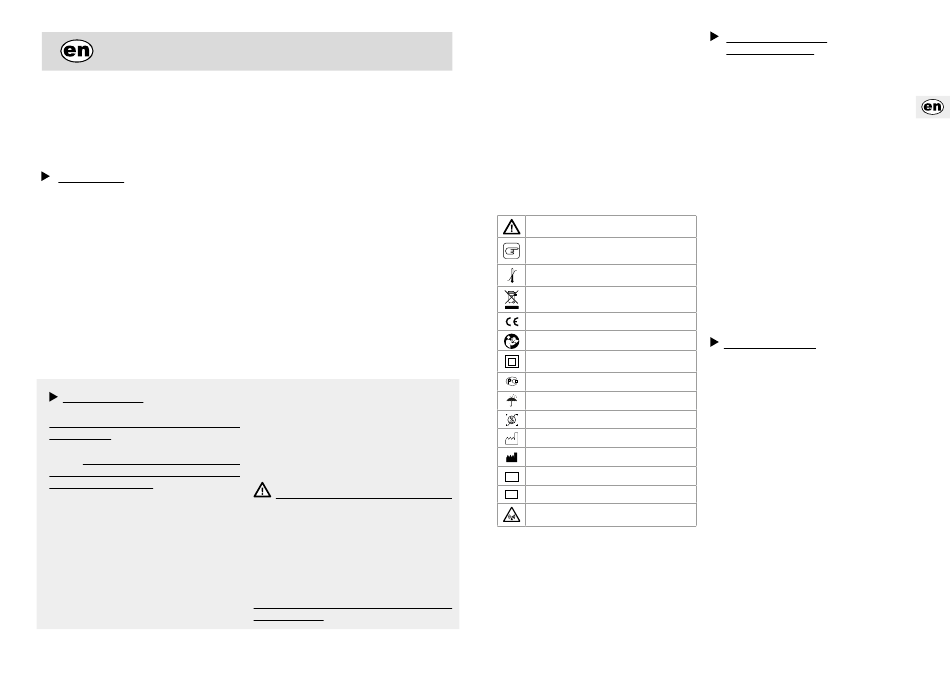

Symbol key:
Caution!
This symbol informs of important assembly instructions,
useful information and user's tips
Temperature limit
Separate disposal of electric
and electronic devices
Complies with relevant EU guidelines
Heed the User's Manual
Protection class II
GOST-R certification for exports to Russia
Keep dry
Humidity, limit
Date of manufacture
Manufacturer
SN Series number
REF Product reference number
Non-ionizing radiation
2. SHORT DESCRIPTION OF THE
KaWe EXAMINATION LIGHT
Information about intended use: The KaWe examination lights
were developed to illuminate the area of the patient's body being
examined during medical examinations in hospitals and doctors'
practices.
Main function: The KaWe examination light serves to illuminate
an area of a patient's body that is to be examined with high-power,
shadow-free light.
General product description
• This is a KaWe examination light as described in EN 60601-2-41,
which as individual luminaries, are not failsafe.
• The KaWe examination light is intended to aid in treatment and di-
agnosis.
• The KaWe examination light is used in areas used for medical rea-
sons (group 0, 1 and 2 according to DIN VDE 0100-710 and HD
60364-7-710).
• The lights are mounted on a stand.
• The KaWe examination lights are to be serviced every 2 years.
• The light is powered via an electrical cord and plug
3. ASSEMBLY INSTRUCTIONS
Parts included:
• 1x Stand mounting block
• 2x Foot piece with lockable castors
• 3x Foot pieces without lockable castors
• 1x Stand post
• 1x Stand cap
• 1x Fillister head screw M8 with washer
• 1x Flat spanner wrench
• Light body with arm
• User's manual for the MASTERLIGHT LED 1000
