Miter Detent Lock/Unlock Button
18.
Bevel Lock/Unlock Handle
19.
Miter Lock Knob
20.
Miter Detent Override Button
21.
Miter Scale and Pointer
22.
Bevel Detent Latch (x2)
23.
Slide Lock
24.
Head Lock
25.
Carrying Handle
26.
Brush Cap
27.
Glide Adjustment
28.
Baseboard Position Lock
29.
E-Brake (Not Shown)

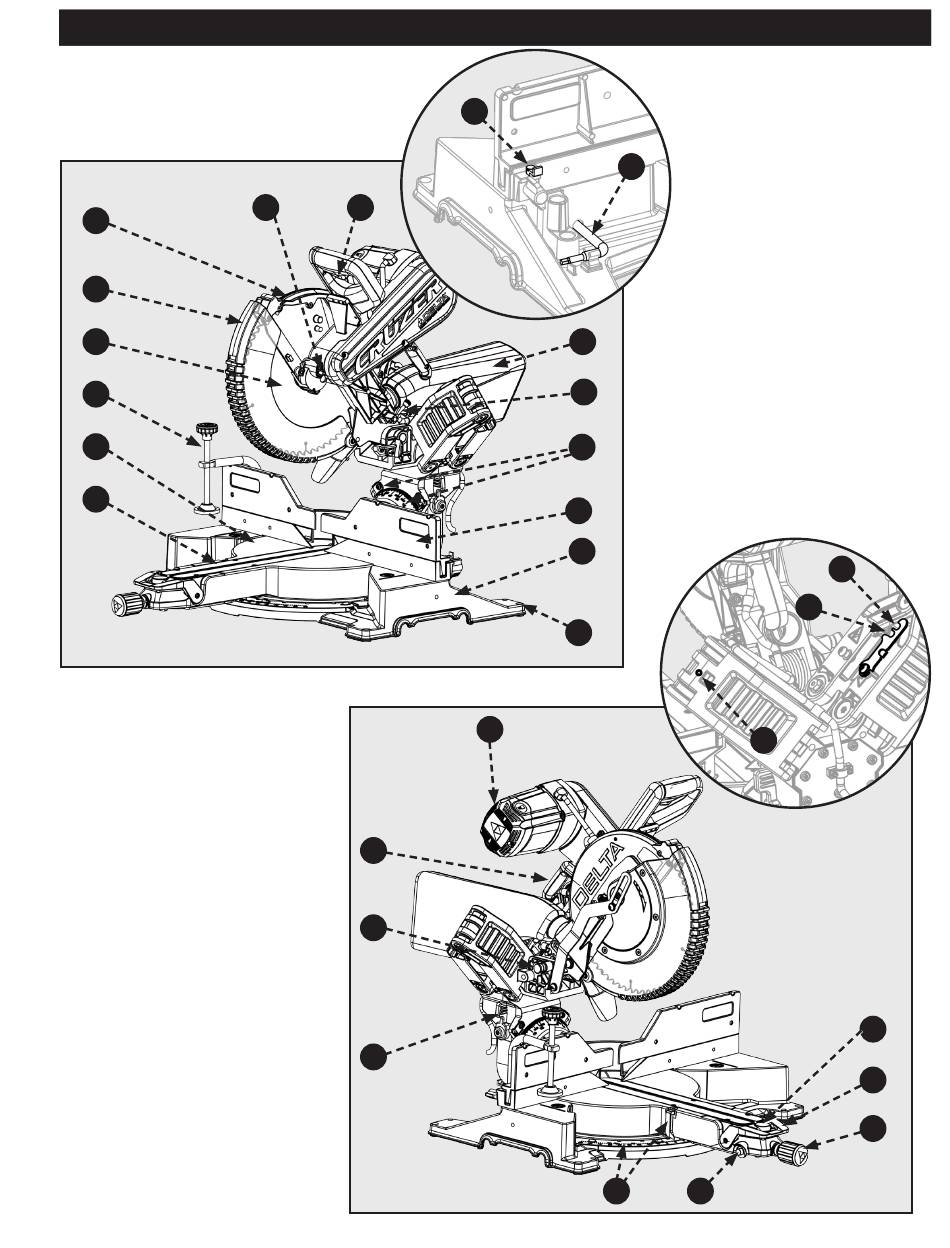

FEATURES
FEATURES
13
14
Figure 1
25
24
22
x2
15
x2
1
2
3
4
5
6
x4
26
21
Figure 2
7
16
1.
Dust Bag
2.
Depth Stop
3.
Bevel Scale and Pointer (x2)
4.
Sliding Fence
5.
Base
6.
Mounting Holes (x4)
7.
Throat Plate
8.
Work Table
9.
Clamp
10.
Blade
11.
Lower Guard
12.
Upper Guard
13.
Spindle Lock
14.
On/Off Switch and Lockout Hole
15.
Back Fence Support
16.
Torx Wrench
23
27
x2
20
28
17
18
19
