Introduction

RISCO Group's WatchOUT 312PR, is a unique detector with signal processing based on two
Passive Infrared (PIR) channels. The detector has an adjustable detection range. The detector
can operate as a regular relay detector connected to any control panel, or as a BUS accessory
when connected to RISCO Group's ProSYS control panel via the RS485 BUS, thus having unique
remote control and diagnostic capabilities.
The following instructions describe the installation of the WatchOUT in Relay & BUS mode.

Mounting

Mounting Considerations

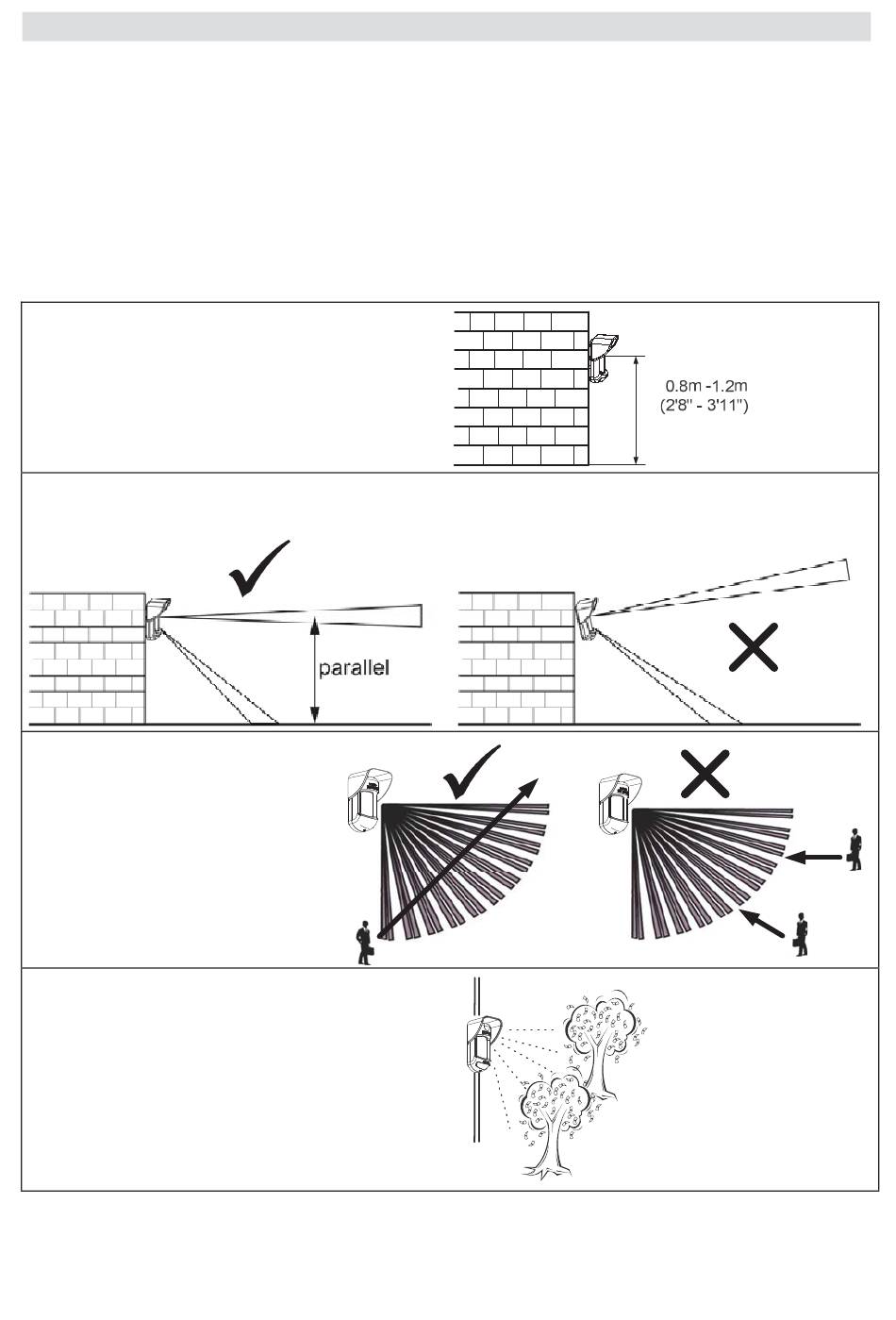

1. Installation Height: 0.8m - 1.2m
Typical Installation Height: 1m (3'3")
2. To ensure maximum operational reliability, install the detector perpendicular to the ground so
that the upper detection area is parallel to the ground.
3. For optimum detection,
select a location that is likely
to intercept an intruder
moving across the coverage
pattern.
4. Avoid pointing the detector to moving
objects (swaying trees, bushes etc.)
4

Relay Mode Installation

(2'8" – 3'11")
