GB

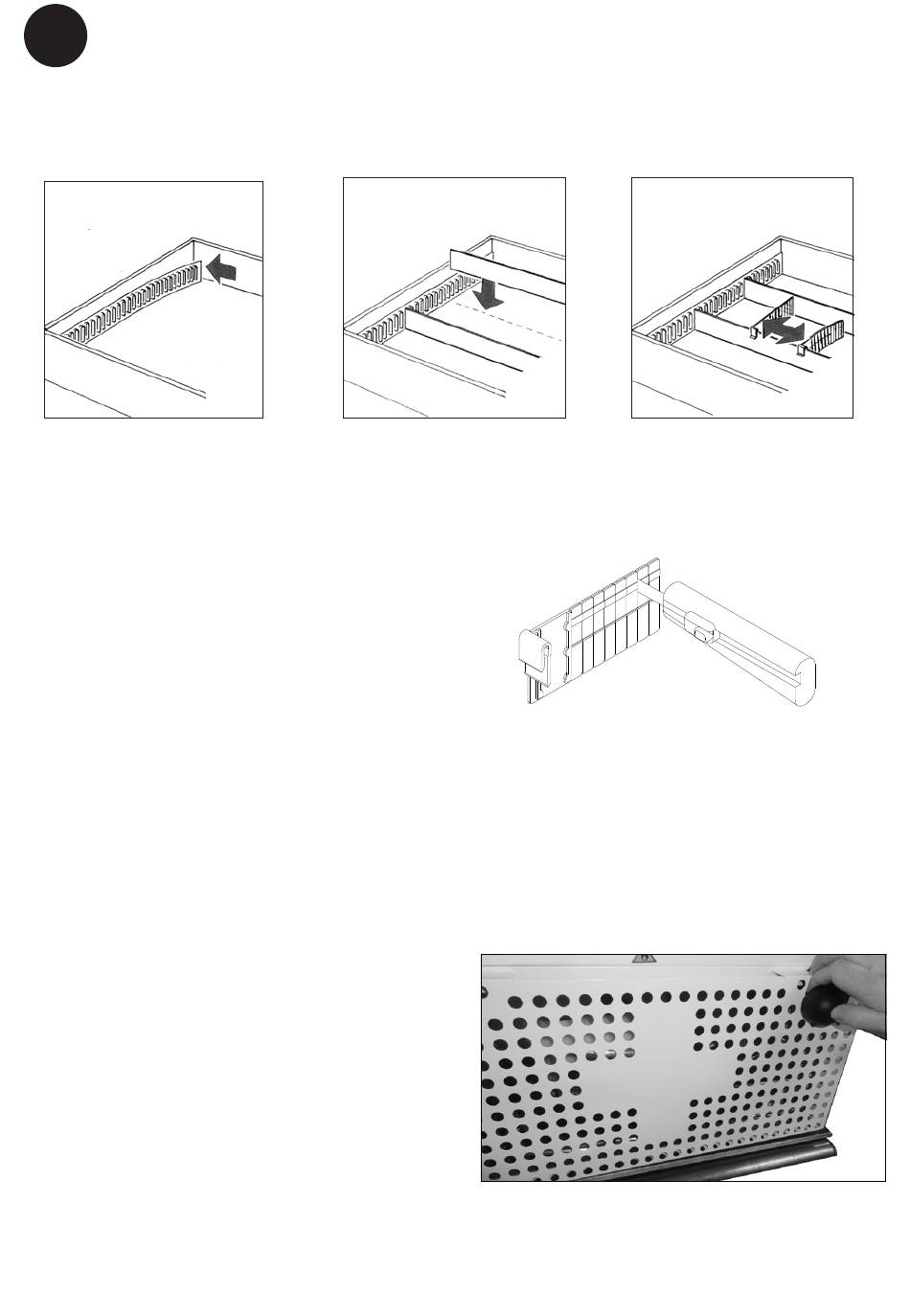

Mounting of drawer dividing system

Drawers are optional
1. The Rail Holder with
double adhesive tape is
mounted inside the rear
and front of the drawer
Adjustment of dividing parts
Integrated breakpoints allows storage of
individual products.Adjust the dividing part as
follows.
(See fig 7) Cut into the appropriate seam
and break of the excess part.

Ventilation guards

The two ventilation guards are mounted
before moving the appliance to it's final
placement. (See fig.8)
The guards function is to secure an abso-
lute minimum of ventilation, if the appliance
is pushed too close up against a wall.
Remember our guideline is minimum 60
mm free space behind the appliance to
ensure sufficient airflow.
The Ø15 mounting holes are located one
in each side of the engine cover on the
appliance back. The ventilation guards are
pushed into the holes
2. Put in the rails
12
3. Snap on the dividers
and slide it
fig. 7
fig. 8
