HOW DOES IT WORK?

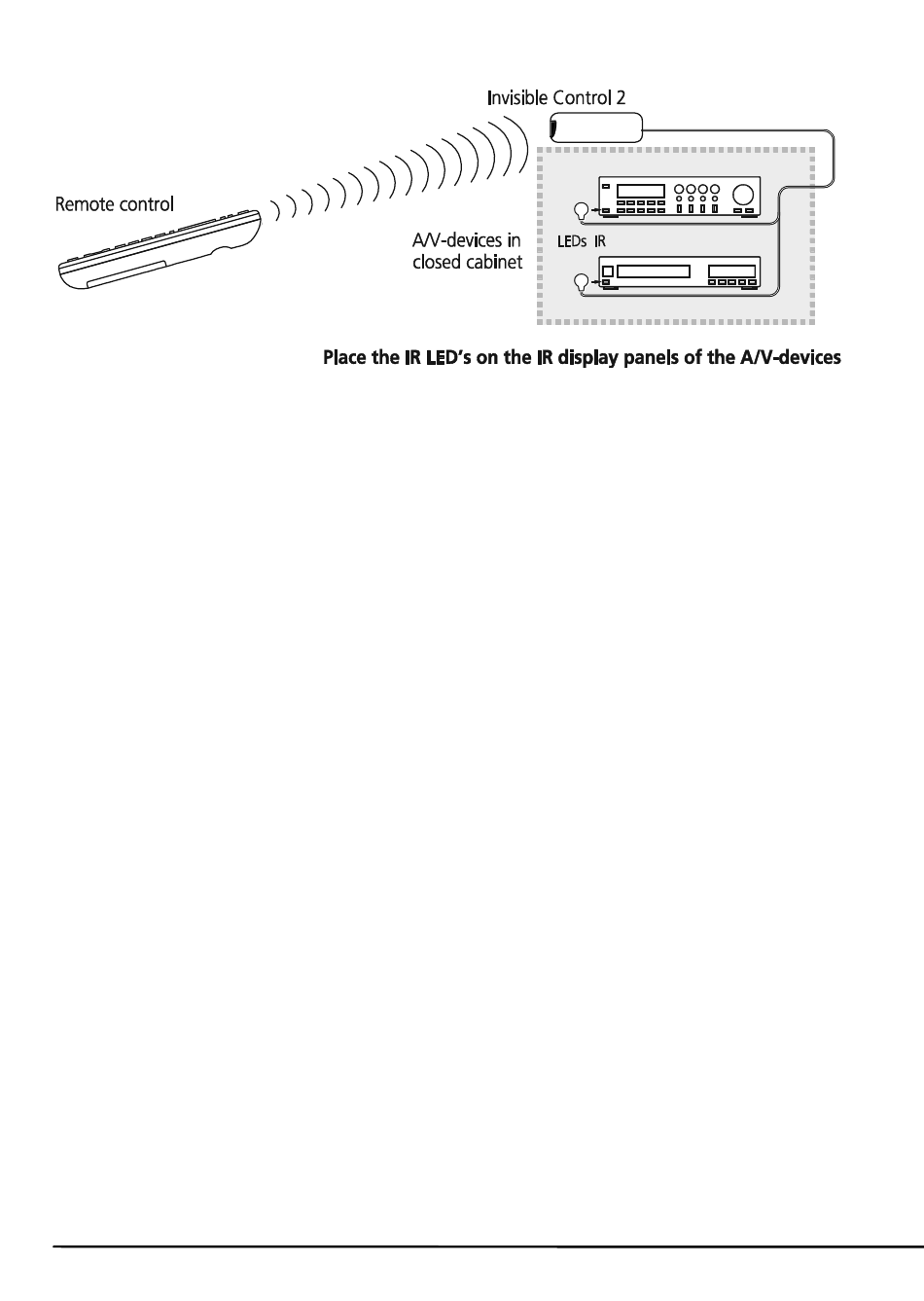

Place the Invisible Control 2™ within sight, on or below the cabinet that the A/V
equipment is in. Stick the IR LEDs on the IR eye of your equipment and then
wire these to the Invisible Control 2™. The Invisible Control 2™ now receives
the signal from your own remote control and transmits it to the IR LEDs
connected to your equipment. You can now use your own remote control to
operate your equipment while it is still placed in a closed cabinet.
4. INSTALLATION
1. Plug the power adapter into the back side of the Invisible Control 2™.
2. Connect the wire with the two IR LEDs (the IR extender) to the back side
of the Invisible Control. It doesn't matter whether you use the first or the
second connection.
3. Place the Invisible Control 2™ within sight and within reach of your remote
control (max. 8 m) on or below the cupboard the equipment is in.
4. Lead the wire with the IR LEDs (the IR extender) to the A/V equipment in
such a way that the IR LEDs (transmitters) are on the front of your
equipment (e.g. via the back of the cabinet). The IR LEDs have self-
adhesive tape on the back. Use this to stick them onto the IR sensor of
your equipment. This should be done very carefully and precisely. Test the
position of the IR LEDs first, before you stick them onto the sensor.
ATTENTION: If you are only using one appliance, then you do not need to
use the second IR LED. Never remove it from the wire!
5. The Invisible Control 2™ receives the signal from your remote control and
transfers it to an electrical signal, which is passed on to the IR LEDs.
6. This means all signals from your remote control are passed on to your
equipment.
