W I R I N G D I A G R A M S
19
Typical Wiring

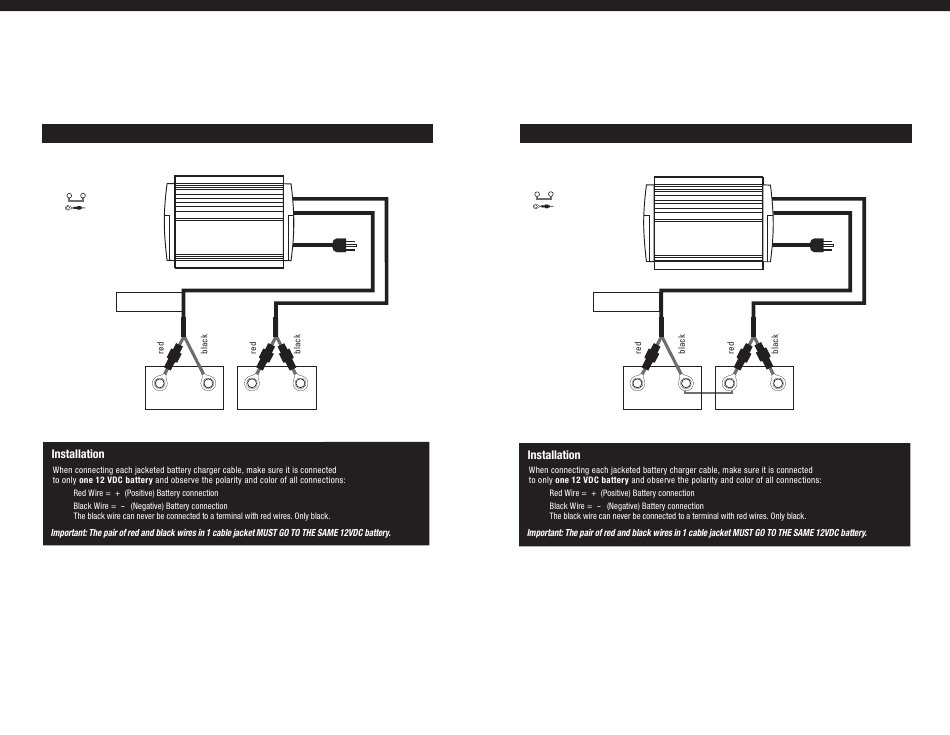

Fig. 4 ProSport 20, 12 and 8 Two Bank Charger for 2 12V Batteries
12 VDC Engine Start and a 12 Volt Trolling Motor or House Battery Configuration
with (2) 12 VDC Batteries
Note:
Indicates jumper series
Indicates fuse
ProSport 12
For engine battery use
cable 2
this bank cable only
_
bat 2
+
12 VDC Engine
Crank Battery
Note 1: One bank cable connects to no more than one battery
Note 2: ProSport is designed to be used with group 24, 27, 30 and 31 batteries
cable 1
Top view
_
bat 1
of battery
+
12 VDC Trolling
Motor or House Battery
Typical Wiring
Fig. 5 ProSport 20, 12 and 8 Two Bank Charger for 2 12V Batteries
Dedicated 24 VDC Trolling Motor Battery Configuration
with (2) 12 VDC Batteries Connected with a Series Jumper
Note:
Indicates jumper series
Indicates fuse
ProSport 12
For engine battery use
cable 2
this bank cable only
_
bat 2
+
Two 12 VDC Batteries connected with a series
jumper for a 24 VDC Trolling Motor
Note 1: One bank cable connects to no more than one battery
Note 2: ProSport is designed to be used with group 24, 27, 30 and 31 batteries
W I R I N G D I A G R A M S
20
cable 1
Top view
_
bat 1
of battery
+
