ENGLISH

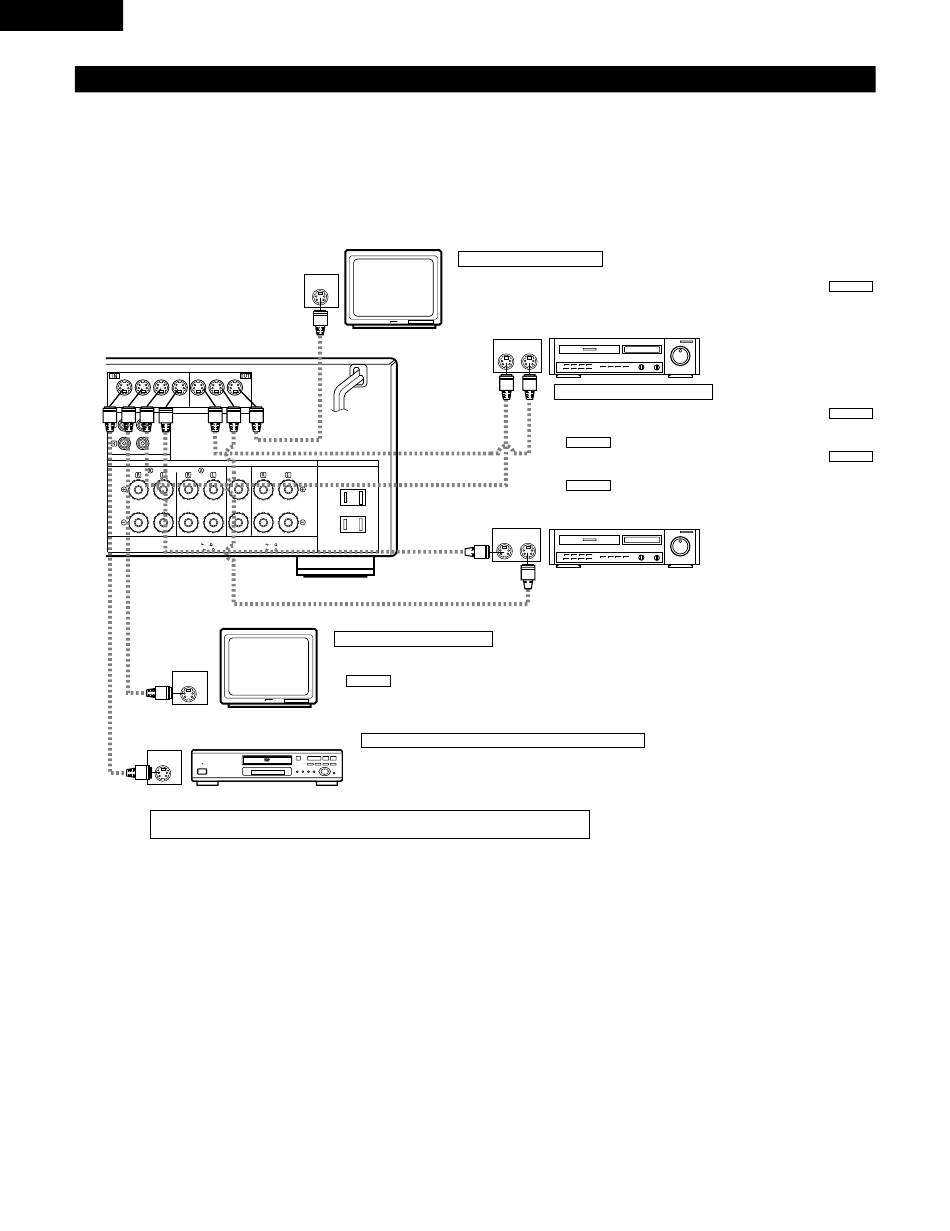

Connecting a video component equipped with S-video jacks
• When marking connections, also refer to the operating instructions of the other components.
• A note on the S input jacks
The input selectors for the S inputs and pin jack inputs work in conjunction with each other.
• Precaution when using S-jacks
This unit's S-jacks (input and output) and video pin jacks (input and output) have independent circuit structures, so that video signals input from
the S-jacks are only output from the S-jack outputs and video signals input from the pin jacks are only output from the pin jack outputs.
When connecting this unit with equipment that is equipped with S-jacks, keep the above point in mind and make connections according to the
equipment's instruction manuals.
DVD/ TV/ VCR-1 VCR-2 VCR-1
VDP DBS
S-VIDEO
FRONT
CENTER
SUB
WOOFER
PREOUT
SPEAKER SYSTEMS
FRONT
SPEAKER IMPEDANCE
FRONT A OR B / 6 16
A + B / 12 16
S-VIDEO
OUT
DVD player, VDP, etc.
S-VIDEO
B
OUT
Connect the components' audio inputs and outputs as described on page 11.
12
Monitor TV
S-VIDEO
IN
VCR-2 MONITOR
AC OUTLETS
CENTER SURROUND AC 120V 60Hz
SWITCHED
TOTAL 120W(1A.)MAX.
CENTER / 6 16
SURROUND / 6 16
TV or satellite broadcast tuner
Connecting a TV/DBS tuner
• Connect the TV's or DBS tuner's S video
output jack (S-VIDEO OUTPUT) to the
S-VIDEO
connection cord.
Connecting a DVD player or video disc player (VDP)
DVD/VDP
• Connect the DVD player's or video disc player's S-Video output jack
to the S-VIDEO DVD/VDP IN jack using an S-Video connection cord.
Connecting a monitor TV
MONITOR OUT
• Connect the TV's or DBS tuner's S video input (S-VIDEO INPUT) to the
MONITOR OUT jack using a S jack connection cord.
Video deck 1
S-VIDEO
OUT IN
Connecting the video decks
• Connect the video deck's S output jack (S-OUT) to the
VCR-1 IN jack and the video deck's S input jack (S-IN) to the
S-VIDEO
• Connect the video deck's S output jack (S-OUT) to the
VCR-2 IN jack and the video deck's S input jack (S-IN) to the
S-VIDEO
Video deck 2
OUT IN
TV/DBS IN jack using an S jack
VCR-1 OUT jack using S jack connection cords.
VCR-2 OUT jack using S jack connection cords.
S-VIDEO
S-VIDEO
S-VIDEO
