Windows Vista / XP
Continued from front
Start Cubase LE 4. Then access the "Devices"
menu, select "Device Setup..." and click "VST
Audio System"
To start Cubase LE 4, double-click the Cubase LE 4 shortcut
icon which was created on the desktop.
After startup, select "ZOOM R16 ASIO Driver" as the ASIO
driver in the right section of the Device Setup window. When
you change the ASIO driver selection, a confirmation message
appears. Click the "Switch" button.
ASIO Driver
The device indication in the left section of the window now
shows "ZOOM R16 ASIO Driver" as the ASIO driver.
Click on this indication to select it, and then click the "Control
Panel" button in the right section of the Device Setup window.
Clicking here ...
This button is clicked.
The window which appears lets you set the buffer size for the
ASIO driver. The buffer size should be set to a value which is
as low as possible without causing sound dropouts during
recording and playback.
The sampling frequency can be changed in Cubase LE 4 in
Project Settings.
When the setting is complete, click the OK buttons in the
respective windows to return to the startup condition of
Cubase LE 4.
From the "Devices" menu of Cubase LE 4, select
"VST Connections" and set INPUT(Input channel
1 - Input channel 8) as the input port to be used
and Output channel 1, Output channel 2 as
Output port on the displayed window.
Use the tabs at top left to switch between input and output, and
verify that "Input channel 1 - Input channel 8 / Output channel 1,
Output channel 2" are selected as device ports.
If another device is selected, click the device port field and change
the selection.
Mac OS X

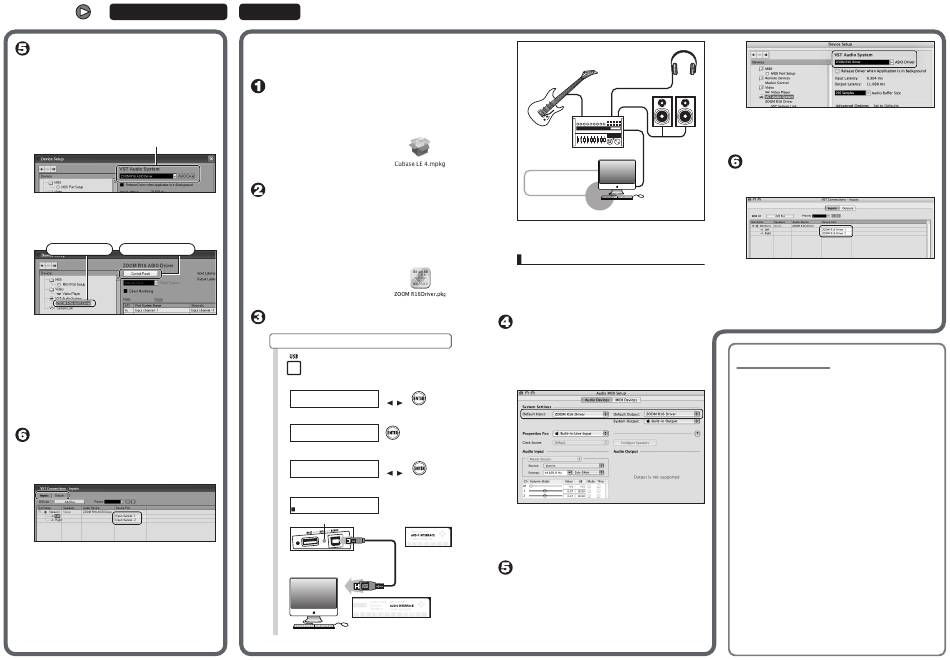

This Cubase LE 4 Startup Guide explains how to install Cubase LE 4 on a computer, make connections and other settings for the R16.
To connect the R16 to a computer running Mac OS X and
to enable audio input/output or control R16 as control
surface for Cubase LE 4, proceed as follows.
Insert the supplied "Cubase LE 4" DVD-ROM into
the DVD drive of Macintosh. And start installation.
The contents of the DVD-ROM will be shown automatically. If
they are not shown automatically, double-click "Cubase LE 4"
icon displayed on the desktop.
When the contents of the DVD-ROM
are shown, double-click "Cubase LE 4
for Macintosh X" icon to open and
install it using "Cubase LE 4.mpkg".
"PDF Manuals and Drivers" CD-ROM supplied with R16
Drivers/Mac "ZOOM R16Driver"
or
Download the latest "ZOOM R16Driver" from
ZOOM homepage (http://zoom.co.jp)
and install it on a computer.
ZOOM R16Driver software is required to enable use of
Cubase LE 4 for audio input and output with a computer.
Double-click installer (ZOOM R16
Driver.pkg) icon. Start install it
according to the instruction.
Set and connect the R16 to Macintosh
using a USB cable.
How to set and connect the R16
1
Press.
2
Select
>AUDIO INTERFACE
Menu moves
U S B
1 / 3
> A U D I O I N T E R F A C E
3
Execute.
A U D I O I N T E R F A C E
Press.
E n t e r ?
4
Select of how to continue settings.
Menu moves
S E T T I N G
[ C O N T I N U E ] R E S E T
5
Connect USB cable to the R16
S a m p l e R a t e = 4 8 . 0 H z
s
: S o l o
USB indicator [DEVICE] flashes
Rate=48.0Hz
AUDIO INTERFACE
6
flashes
Connect USB cable
to computer
Rate=48.0Hz
INTERFACE flashes when the connection is complete
Connection setting completed
[INPUT 1-8]Jack
[PHONES]Jack
Guitar, other instrument
or built-in stereo mic
R16
Macintosh
DAW software
Cubase LE 4 etc
ZOOM R16 Driver
When the connection is operated on the R16, it is recognized by
the computer.
NOTE
Use a high-quality USB cable and keep the connection as short as
possible. If USB bus power is supplied to the R16 via a USB cable
which is more than 3 meters in length, the low voltage warning
indication may appear.
Open the "Applications" folder and then the
"Utilities" folder, and double-click "Audio MIDI
Setup".
The Audio MIDI Setup screen appears. Click "Audio Devices"
and check that "ZOOM R16 Driver" is selected as default
input/default output.
Press.
Press.
If another device is selected, use the pull-down menu to
change the selection to "ZOOM R16 Driver".
When the setting is done, close Audio MIDI Setup.
Start Cubase LE 4. Then access the "Devices"
menu, select "Device Setup..." and click "VST
Audio System".
To start Cubase LE 4, double-click the Cubase LE 4 icon in the
"Applications" folder.
After startup, be sure to verify that "ZOOM R16 Driver" is
selected in the right section of the Device Setup window.
Audio system,
headphones or other
playback equipment
If another device is selected, use the pull-down menu to change
the selection to "ZOOM R16 Driver".
When the setting is done, click OK button and close the window.
[OUTPUT]Jack
Audio components,
From the "Devices" menu of Cubase LE 4, select
amp built-in
"VST Connections" and select the device containing
speakers etc
the string "ZOOM R16 Driver 1 ~ 8" as input port
and output port.
USB cable
Use the tabs at top center to switch between input and output,
and verify that "ZOOM R16 Driver 1 ~ 8" is selected as device
port.
If another device is selected, click the device port field and
change the selection.
For optimum enjoyment
While using Cubase LE 4, other applications may slow down
drastically or a message such as "Cannot synchronize with USB
audio interface" may appear. If this happens frequently, consider
taking the following steps to optimize the operation conditions for
Cubase LE 4.
1) Shut down other applications besides Cubase LE 4.
In particular, check for resident software and other utilities.
2) Reduce plug-ins (effects, instruments) used
by Cubase LE 4.
When there is a high number of plug-ins, the computer's processing
power may not be able to keep up. Reducing the number of tracks
for simultaneous playback can also be helpful.
3) Power the R16 from an AC adapter.
When a device designed to use USB power is powered via the USB
port, the current supply may sometimes fluctuate, leading to
problems. See if using an AC adapter improves operation.
Please set latency from the device menu when the sound
cutting occurs. Refer: Install Guide-step5 about details.
If applications still run very slowly or the computer itself does
not function properly, disconnect the R16 from the computer
and shut down Cubase LE 4. Then reconnect the USB cable
and start Cubase LE 4 again.
