5 CONNECTION TO INSTRUMENT/CONTACTS

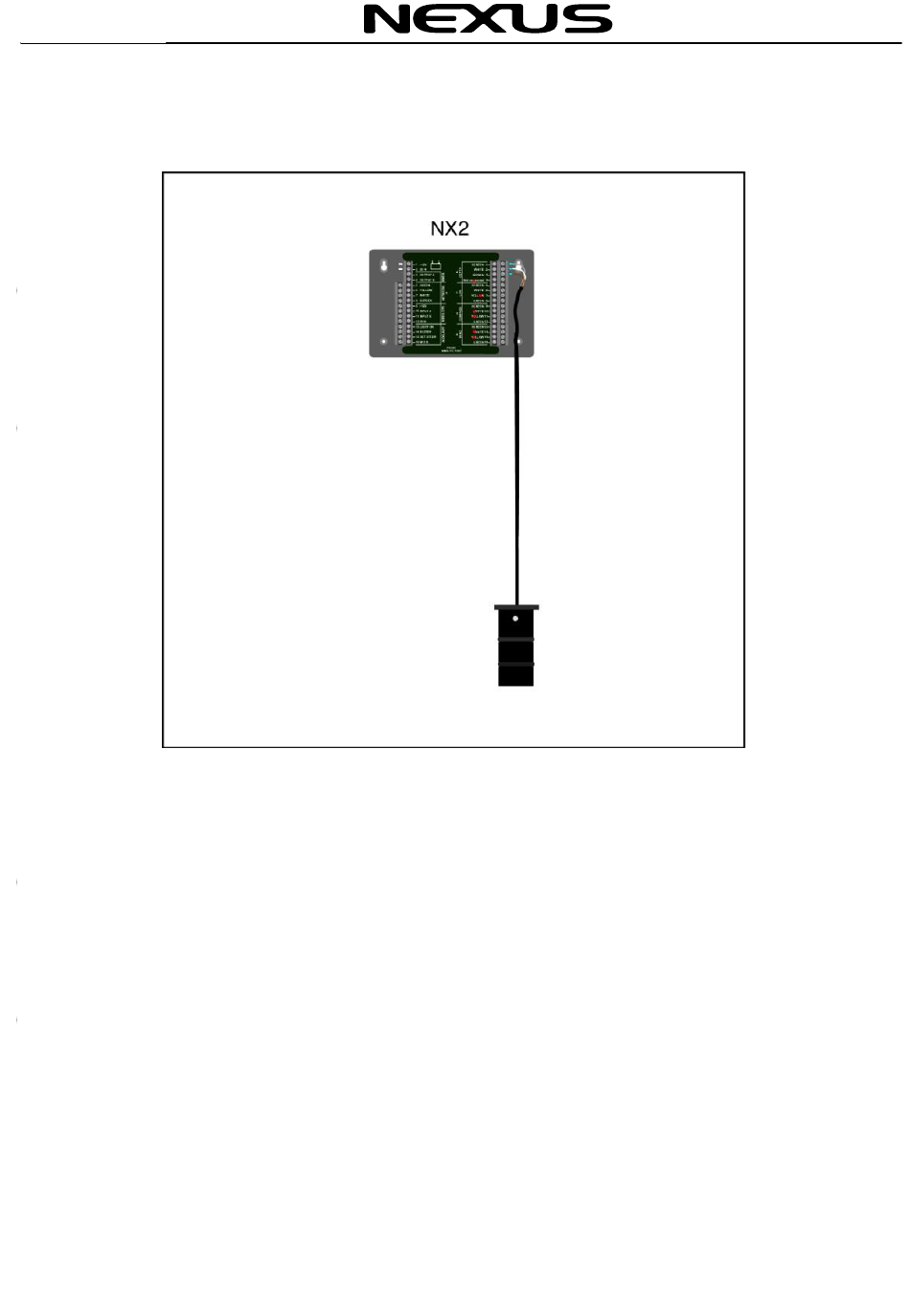

The depth transducer connects to the Nexus Server or directly.
The transducer cable is clearly marked with No 2 and the colours will correspond to input screw
terminal on the Server.
IMPORTANT! DO NOT CUT OR EXTEND THE 8 M TRANSDUCER CABLE!

6 CALIBRATION

Calibration is carried out in the Multi Control instrument (see manual).

7 TECHNICAL DATA

Dimensions Transducer:
Transducer cable:
Power supply:
Power consumption:
Depth range:
Accuracy:
Type of transducer:
Temperature range:
42 x 86 mm (1 5/8" x 3 3/8")
8 m (9.9 ft + 26.2 ft)
12V DC (10-16V)
0.2 W
0.8 - 150 m (3 - 450 ft) at
speed up to 30 knots.
± 0.1 %
Piezocrystal 200 kHz
Operation -10°C to + 70°C
Storage -35°C to +85°C
11-6
DEPTH TH43
