The "RHTEP..." system consists of:
– a) Hydraulic head type "RHTEP...-S";
– b) Plunger type "OG ...";
– c) Gauge type "CAL ...";
– d) Steel case type "VAL RHTEP";
– e) Countersink 60° for holes (only for RHTEP.SK version).
The RHTEP... system can be supplied in diff erent versions for various applications:
SYSTEM TYPE
RHTEP
RHTEP.SK
RHTEPF
RHTEPE-12
RHTEPE-16
b
a
In the case of a breakdown contact our Area Agent who will advise you on the problem and give
you the necessary instructions on how to dispatch the tool to our nearest service Centre; if possible,
attach a copy of the Test Certifi cate supplied by Cembre together with the tool or fi ll in and attach
the form available in the "ASSISTANCE" section of the Cembre website.
5

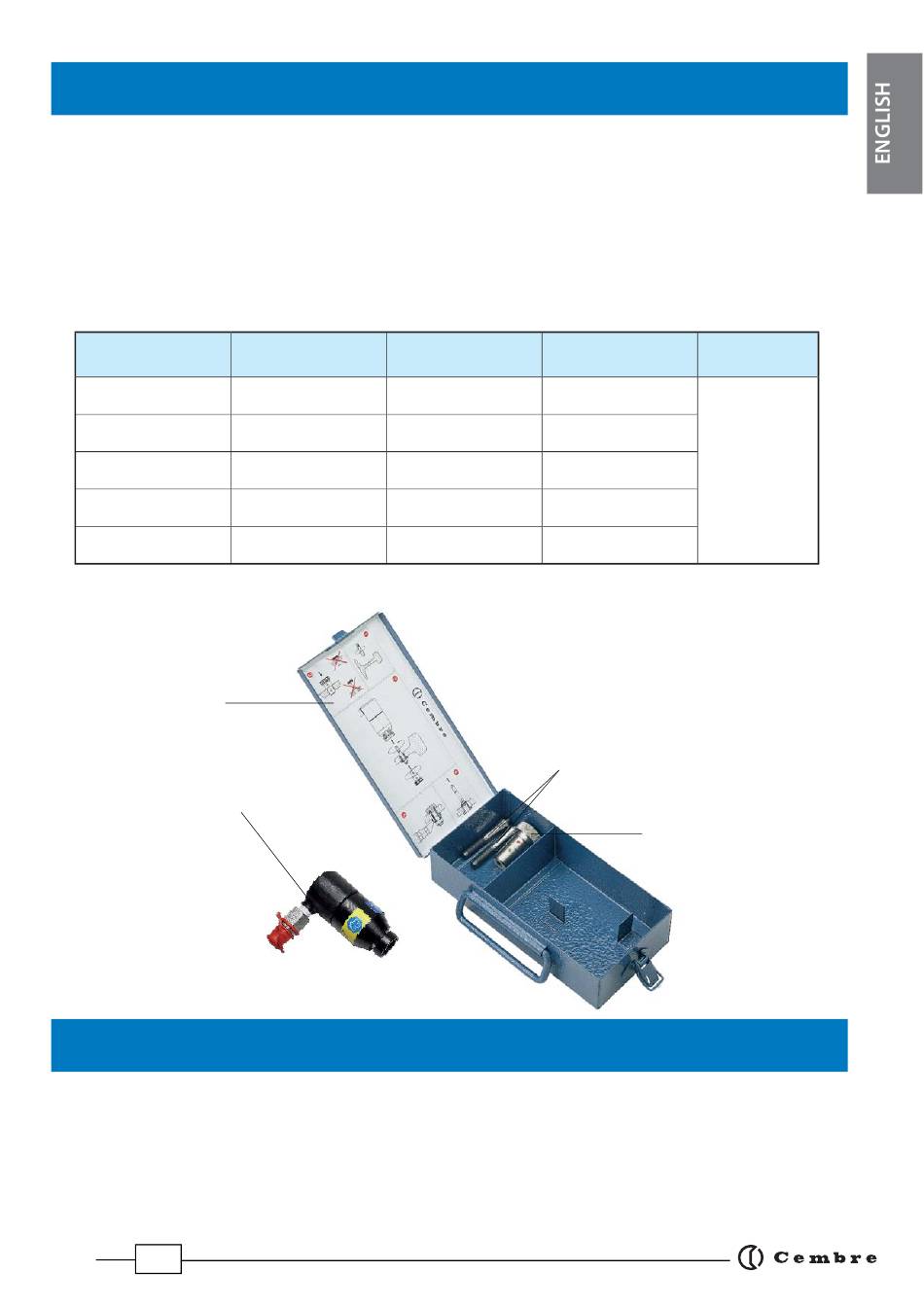

6. "RHTEP..." SYSTEM (Ref. to Fig. 11)
a) HEAD
RHTEP-S
RHTEPD-S n. 1 OG 13.2T
RHTEPF-S
RHTEPE-S12
RHTEPE-S16 n. 2 OG 16.2T

7. RETURN TO Cembre FOR OVERHAUL

b) PLUNGER c) GAUGE
n. 2 OG 13.2 CAL 19.20
CAL 19.20
n. 2 OG 10.5 CAL 135.145
n. 2 OG13.2T CAL 22.23
CAL 22.23
FIG. 11 RHTEP... SYSTEM
c
d) CASE
VAL RHTEP
d
