English
ON
OFF
MUTE VOLUME
-
+
QUEUE SETUP
5
BACK REPLY
4
SEL
DIM EXIT
1 2 3
4 5 6
7 8 9
0 >10
MEM
REPT SCAN RANDOM
TIME CLEAR REV PROG
FM DAB i-RADIO CD
NETWORK USB AUX 1 AUX 2

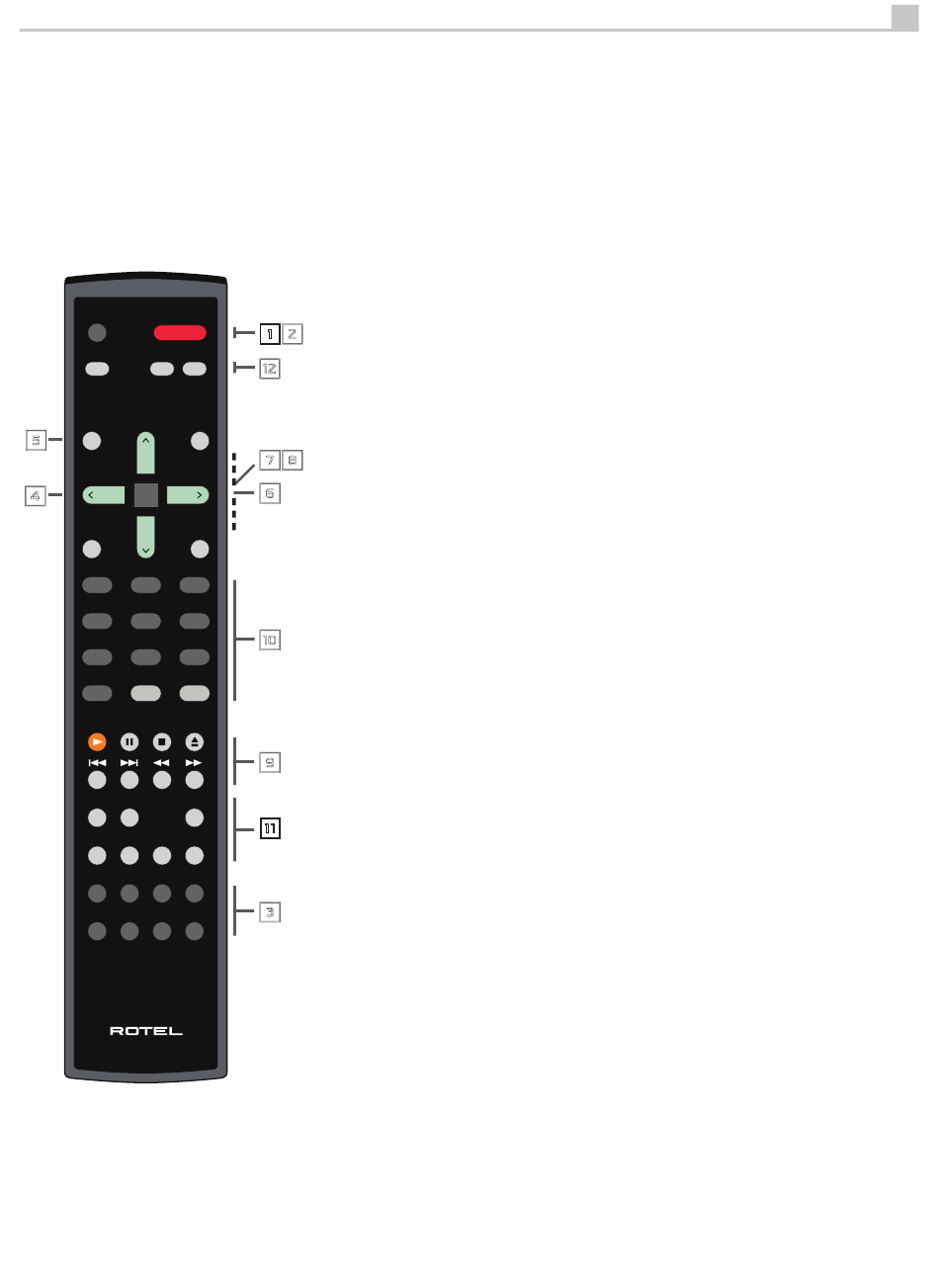

RR-CX91
Button Series Function Explanation
1 2
, : STANDBY mode button, are used to switch the STANDBY mode on or off.
3
: Source selection buttons, are used to switch your desire source.
1 2
4
: Back to upper level menu
5
: Call out preset/memorized list of tracks, songs, stations, etc against specified mode.
=
6
: To call out special Internet Radio menu on Internet Radio mode.
7 8
, : Navigation keys and confirm buttons, are used to navigate and enter menus.
9
: Playback buttons,are used mainly control the playback under USB and CD mode. It has
specified functions against specified modes.
0
78
: Numeric buttons , offer alternated numeric related selection.
-
: Extra functionality buttons, are used to set individual machine's configuration and make
6
it more convenience for your using.
=
: Volume control buttons.
Front & Rear Interfaces
A
: USB socket, is used to connect with USB music storage devices, such as MP3, USB
stick Mobile,iPod/iPhone etc , can be connected directly or through USB adaptor.
B
: PHONE jack, is used to connect with 3.5mm headphone.
C
: Antenna connector, is used to connect with supplied DAB/FM antenna
0
D : Analog AUX input jacks, are used to connect with other device's analog signal output
E
: PRE OUT jacks, are used to connect with other amplifier's input and send
analog signal to the amplifier.
F
: Ethernet sockets, is used to connect with supplied Wi-Fi dongle or USB LAN adaptor.
G
: Digital AUX input jacks, are used to connect with other device's digital signal output
H : Computer I/O sockets, is used to connect with computer to upgrade this device firmware
9
I
: Speaker connectors, are used to directly connect with speakers.
J
: Power connector, is used to connect with AC mains and outlet.
-
