Controller Connector and Jumper

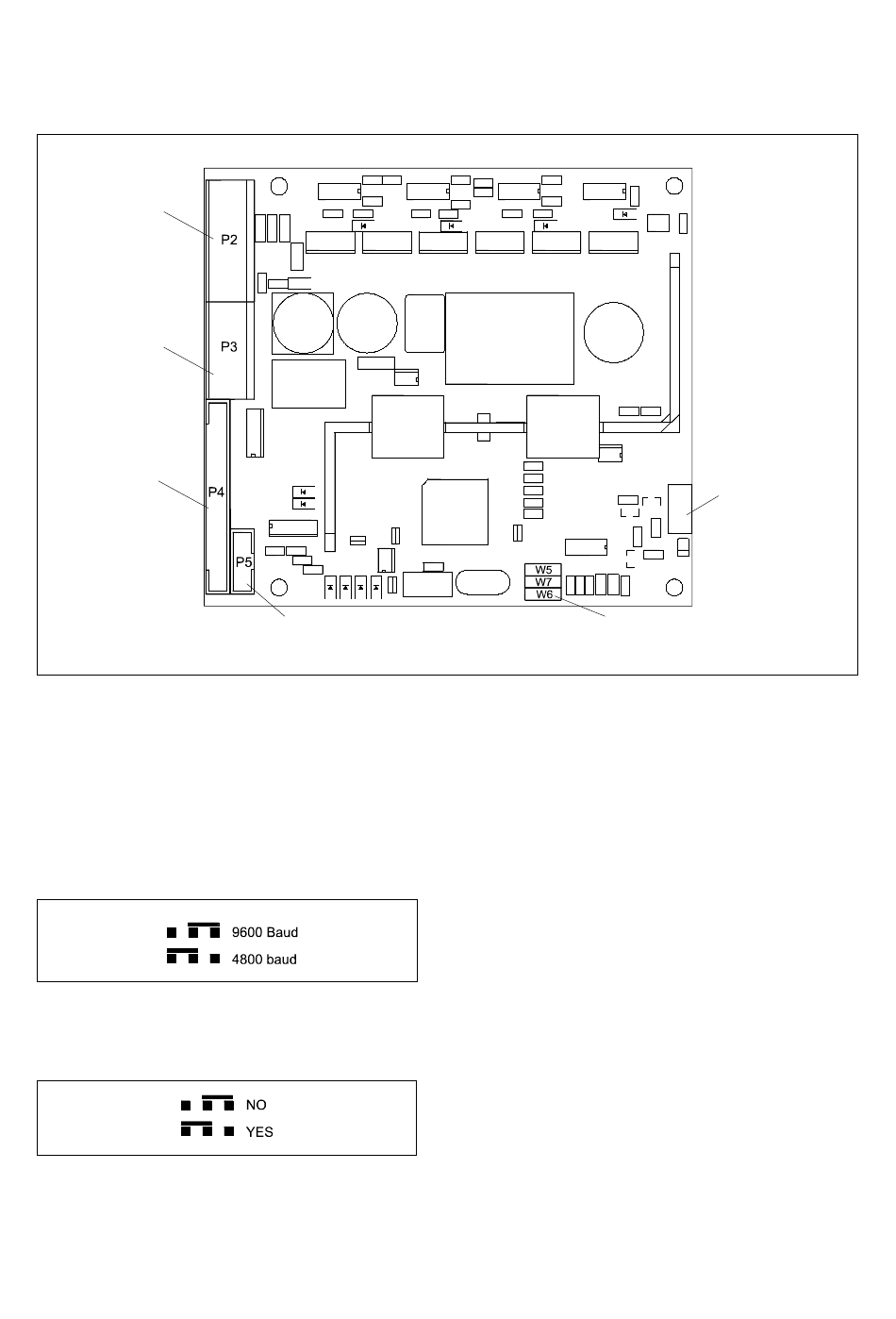

The following figure shows the controller and indicates
its connectors and jumpers.
Pump
Connector
Power Supply
Connector
(24 V)
Signal
Connector

Jumper Configurations

The following figures show the configuration and
meaning of the individual jumpers on the board.
Jumper W7 is used to select the data exchange rate, as
shown in the figure.
W7 Jumper
Jumper W6 is used to set the Soft Start, as shown in
the figure.
W7 Jumper
The W5 jumper is just for factory setting and must not
be moved.
Serial
Interface
Connector and Jumper
53
TECHNICAL INFORMATION
Jumper

Run-up Time Adjustment

TR1 can be used to change the run-up time between
8 and 60 min. The controller is factory set to 8 min.
If the gas load is large and the pump cannot reach the
nominal speed in the set time, the pump is stopped and
the controller gives Error 6 (Normal not reached at run-
up time). In this case, the run-up time setting can be
increased up to 60 min. by rotating TR1. The run-up
time can be read through the serial communication at
parameter 00700 (if protocol 1 is used) or at window
127 (if protocol 2 is used).
TR1
Run-up time setting
(8-60 min.) factory
set to 8 min.
87-900-121-01 (B)
