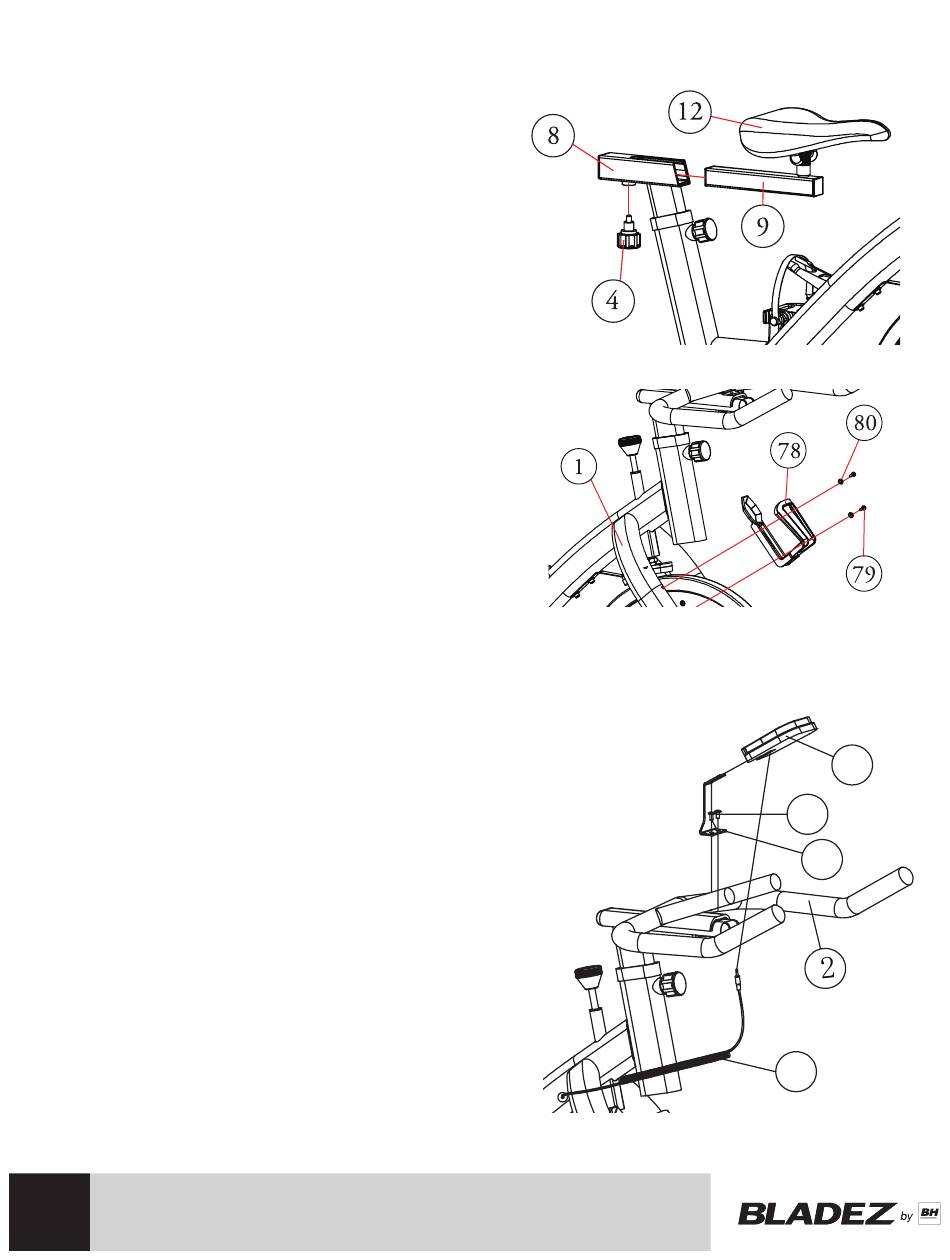

ASSEMBLY INSTRUCTIONS
STEP 6: SEAT ASSEMBLY
Loosen the Pop Pin (4) and slide the Seat Slider (9)
into the Seat Post (8) at desired setting and tighten
the Pop Pin (4). Slide the Seat (12) onto the post on
the Seat Slider(9) and tighten the nuts on both sides
of the Seat (12) with the wrench provided.
STEP 7: WATER BOTTLE HOLDER
INSTALLATION
Attach the Water Bottle Holder (72) onto the right
fork of the frame - there are two holes in the fork to
align the water bottle holder. Align the Water Bottle
Holder to the holes and secure with 2 washers (74)
and 2 Umbrella Screws (73).
STEP 8: ATTACH THE MOUNT
There are two screws (77) located on the
Handlebar (2). Take these screws out and attach
75
the Computer Bracket (76) to the Handlebar (2)
with the two Screws (77).
77
76
STEP 9: ATTACH THE COMPUTER
The Computer (75) comes with two batteries.
Pull off the back cover and install the batteries.
Replace Cover. Align the back of Computer (75) with
Computer Mount (76) and slide the computer onto
the computer mount. Connect the computer cable
with speed sensor cable from the bike. Connect the
79
Sensor Cable (79) to the back of the Computer (75).
