RIDGID R350RHF Guide Rapide

DANGER:
Do not use oxygen, combustible gases, or bottled gases as a power source for this tool. The tool will explode and cause
death or serious injury.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product. If the operator's
manual which originally accompanied this tool is missing, visit us at www.RIDGID.com or call 1-866-539-1710.
WARNING:
Disconnect the tool from the air supply before performing maintenance on this tool. Failure to do so could result in serious
personal injury.
WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye
damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields, or a full face
shield when needed. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side
shields. Always use eye protection which is marked to comply with ANSI Z87.1.
18
5
13
17
14
15
16
18
23
THIS KIT INCLUDES:
Cylinder Cap Seal (13)
Piston Ring (14)
O-Ring (15)
Driver Maintenance Kit Instruction Sheet
Tools needed (but not included): 5 mm hex key, 2 flat head screwdrivers

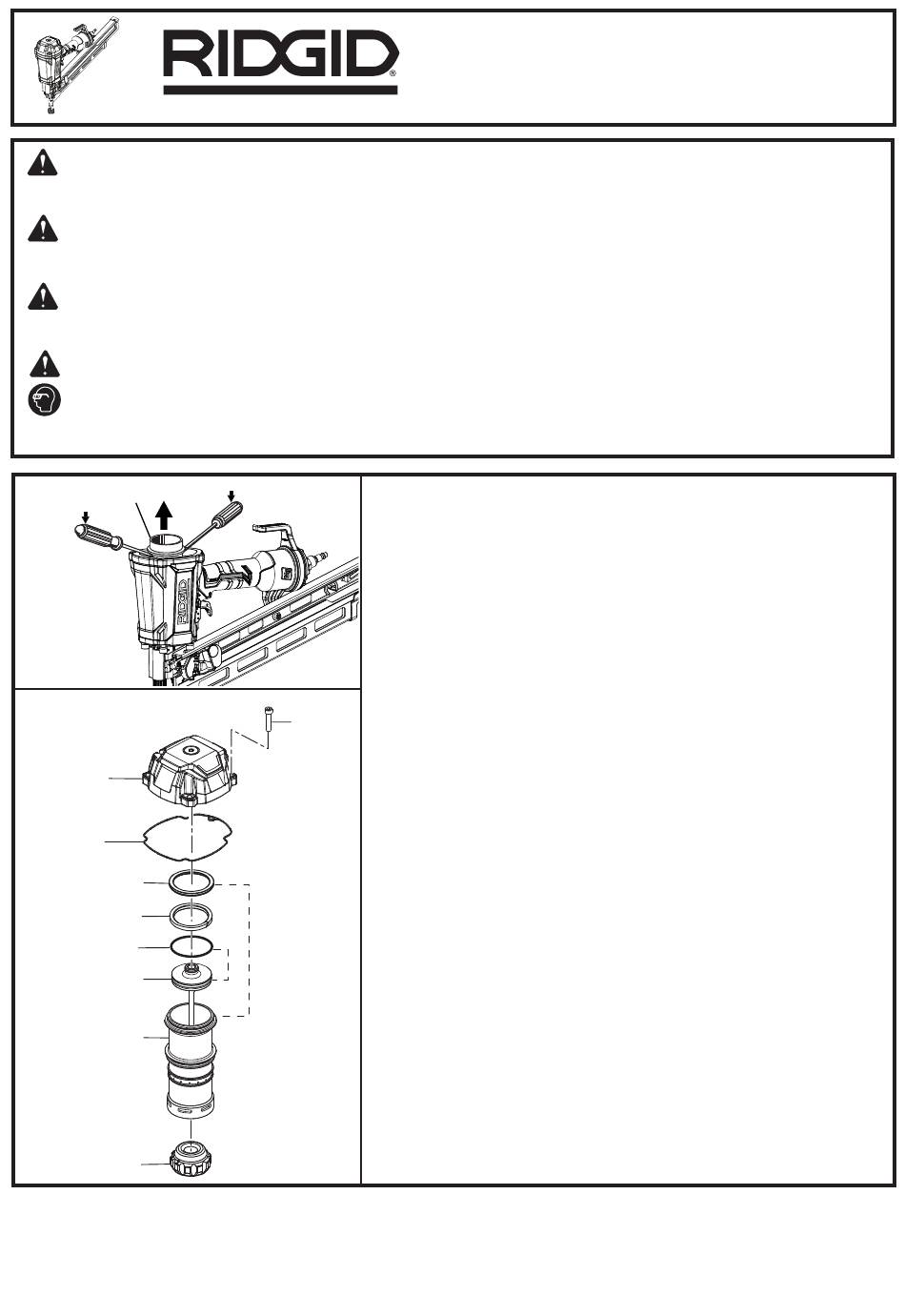

DRIVER MAINTENANCE
See Figures 1 - 2.
Fig. 1
1. Disconnect the tool from the air supply and remove any fasteners
4
2. Using a 5 mm hex key, remove the four screws (4) from the
3. Remove the cylinder cap seal (13).
4. Remove the press ring (17) from the top of the cylinder (18). Set
5. With two flat head screwdrivers, gently pry the cylinder (18) from
6. Remove old driver unit (16) from the cylinder (18).
7. Remove the bumper (23) and replace with new bumper (23) with
8. Clean all parts with a dry, clean cloth.
9. Apply a light coat of grease to new o-ring (15) and new piston
10. Reinsert new driver unit (16) and cylinder (18) into the tool body.
11. Reinstall press ring (17) on top of cylinder (18) with flat surface
12. Install the new cylinder cap seal (13) and be sure it is completely
13. Reinstall and secure the cap (5) and screws (4).
Fig. 2
ONE WORLD TECHNOLOGIES, INC.
P.O. Box 35, Hwy. 8
Pickens, SC 29671, USA
1-866-539-1710  www.RIDGID.com
RIDGID is a registered trademark of RIDGID, Inc., used under license.
DRIVER MAINTENANCE KIT

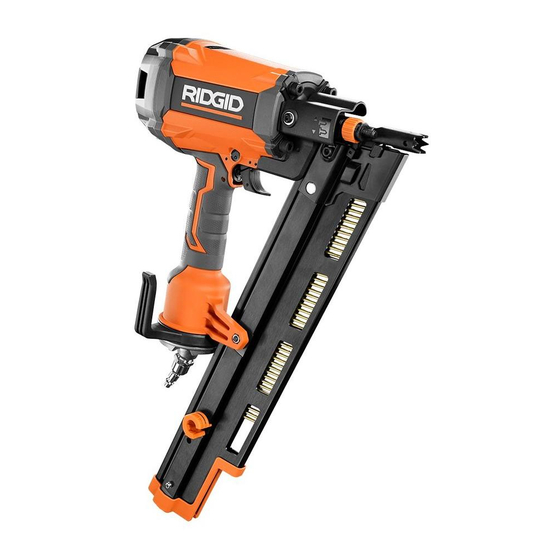

R350RHF Full Round Head Framing Nailer
Driver Unit (16)
Bumper (23)
Grease
that remain in the tool.
cap (5) of the tool. Set aside cap and screws.
aside.
the tool body as shown in Figure 1.
the tapered end going into the cylinder (18).
ring (14) and install both onto new driver unit (16).
Be sure the driver shaft is inserted in the proper direction and the
cylinder is completely seated in the tool body.
of ring facing upwards.
seated in cap (5).
NOTE: To properly seat cap, tighten the screws at alternate corners
a few turns at a time until all screws are secure.
