RIDGID R350RHD Instructions D'assemblage

daNGer:
Do not use oxygen, combustible gases, or bottled gases as a power source for this tool. The tool will explode and cause
death or serious injury.
WarNiNG:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product. If the operator's
manual which originally accompanied this tool is missing, visit us at www.ridgid.com or call 1-866-539-1710.
WarNiNG:
Disconnect the tool from the air supply before performing maintenance on this tool. Failure to do so could result in serious
personal injury.
WarNiNG:
The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye
damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields, or a full face
shield when needed. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side
shields. Always use eye protection which is marked to comply with ANSI Z87.1.
6
7
9
20
23
RIDGID
22
(With Key item 21 installed)

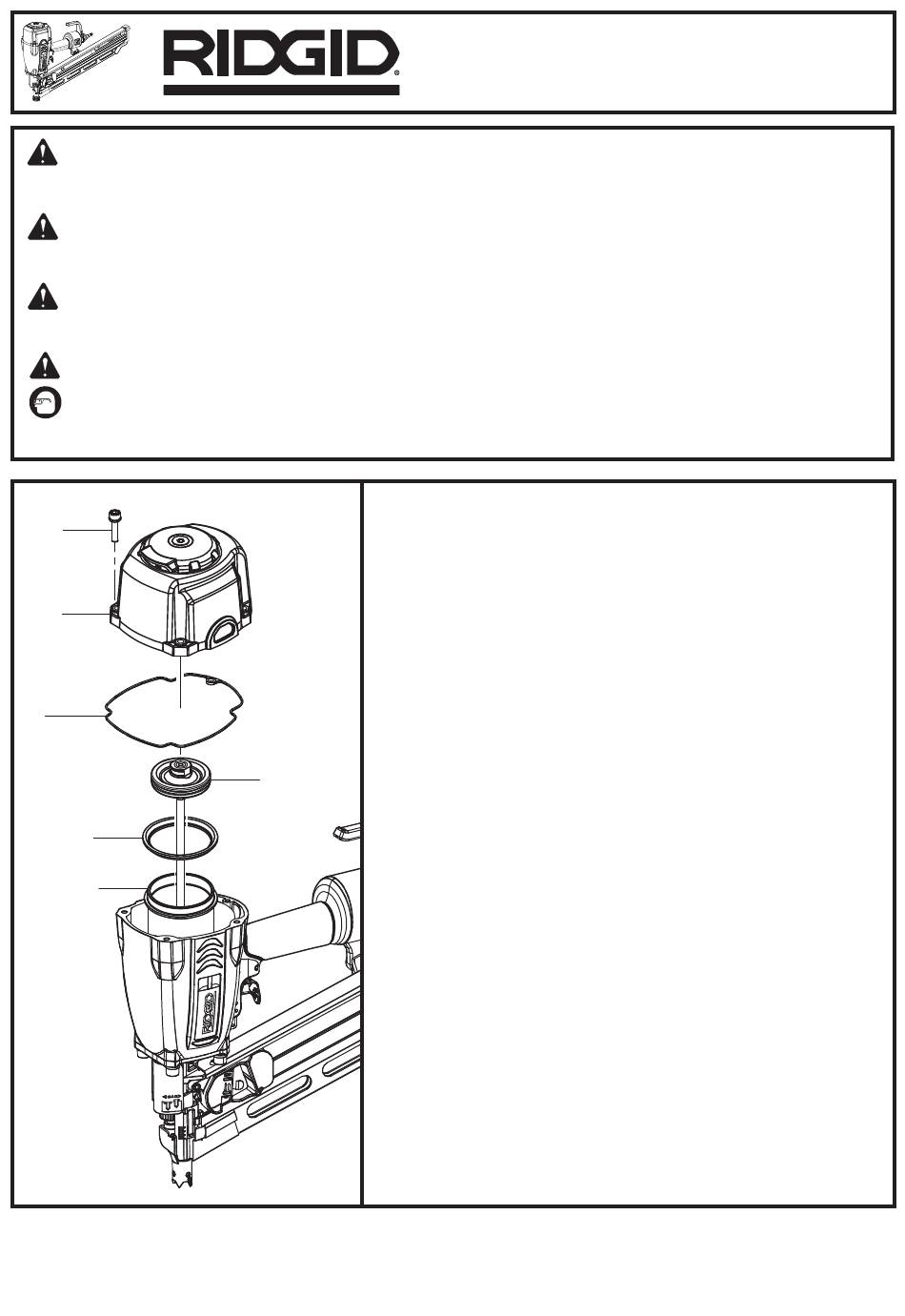

Fig. 1
ONe WOrld teCHNOlOGies, iNC.
P.O. Box 35, Hwy. 8, Pickens, SC 29671
is a registered trademark of RIDGID, Inc. and used under license.
®
driver assembly Kit
r350rHd Full round Head Framing Nailer
tHis Kit iNClUdes:
Piston Ring (21)
Driver Unit (22)
Grease
Driver Assembly Kit Instruction Sheet
driver replaCemeNt
See Figure 1.
1. Disconnect the tool from the air supply and remove any fasteners
that remain in the tool.
2. Using a 5 mm hex key, remove the four screws (6) from the top
cap (7) of the tool.
3. Remove the cylinder cap seal (9).
4. Remove the driver unit (22) from the cylinder (23).
5. Insert the new driver unit (22) into the cylinder. Be sure the driver
shaft is inserted in the proper direction.
6. Reassemble parts in the order shown in Figure 1. Be sure that the
press ring (20) is positioned with the wider edge up.
7. Reinstall cylinder cap seal (9).
8. Replace and secure the top cap (7).
NOte: To properly seat cap, tighten the screws at alternate corners
a few turns at a time until all screws are secure.
