Refrigerator Doors: Removing, Reversing (optional) and Replacing
TOOLS NEEDED: ⁵⁄₁₆ in. hex-head socket wrench, No. 2 Phillips screwdriver, flat-head screwdriver, ⁵⁄₁₆ in. open-end wrench, flat 2 in.
putty knife.
IMPORTANT: Before you begin, turn the refrigerator control OFF, unplug refrigerator or disconnect power. Remove food and any
adjustable door or utility bins from doors.

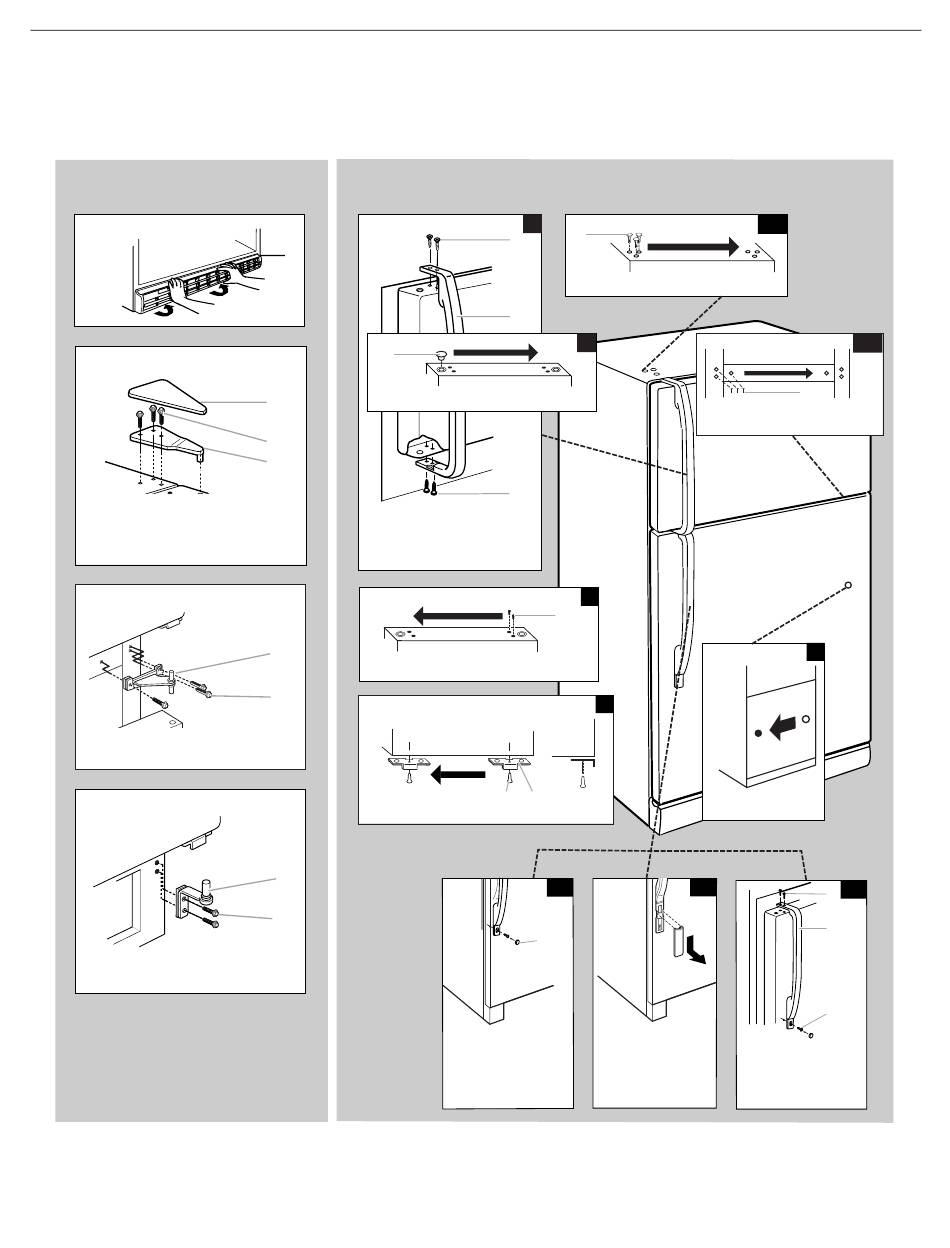

Door Removal &
Replacement
Base Grille
Top Hinge
1. Top Hinge Cover
5
/
2.
" Hex-Head Hinge Screws
16
3. Top Hinge
Center Hinge
1. Center Hinge
2.
5
/
" Hex-Head Hinge Screws
16
Bottom Hinge
1. Bottom Hinge
5
/
2.
" Hex-Head Hinge Screws
16
1
1
1. Door Hinge Hole Plug
2
3
1. Flat-Head Handle Screws
2. Freezer Handle
1
1. Door Handle Sealing Screws
2
Front View
1. Door Stop Screw
2. Door Stop
1
2
1. Door Handle
Door Swing Reversal (optional)
2
1
1
1. Cabinet Hinge Hole Plugs
2
3
1
4
1
5
Side View
1
2
6-1
1
Screw Cover
1-2
1-1
1
1
5
/
1.
" Hex-Head Hinge
16
Screws
7
1. Door Handle
Seal Screw Front
6-2
6-3
1
2
3
1. Flat-Head
Handle Screw
2. Refrigerator Handle
3. Handle Screw
7
