Direct proportional Displayed value will be increasing with the input frequency.
Display-
value
Frequency
Inverted proportional Displayed value will be descending with increasing input frequency.
Display-
value
Frequency
Decimal point
No decimal point
Decimal point at first digit

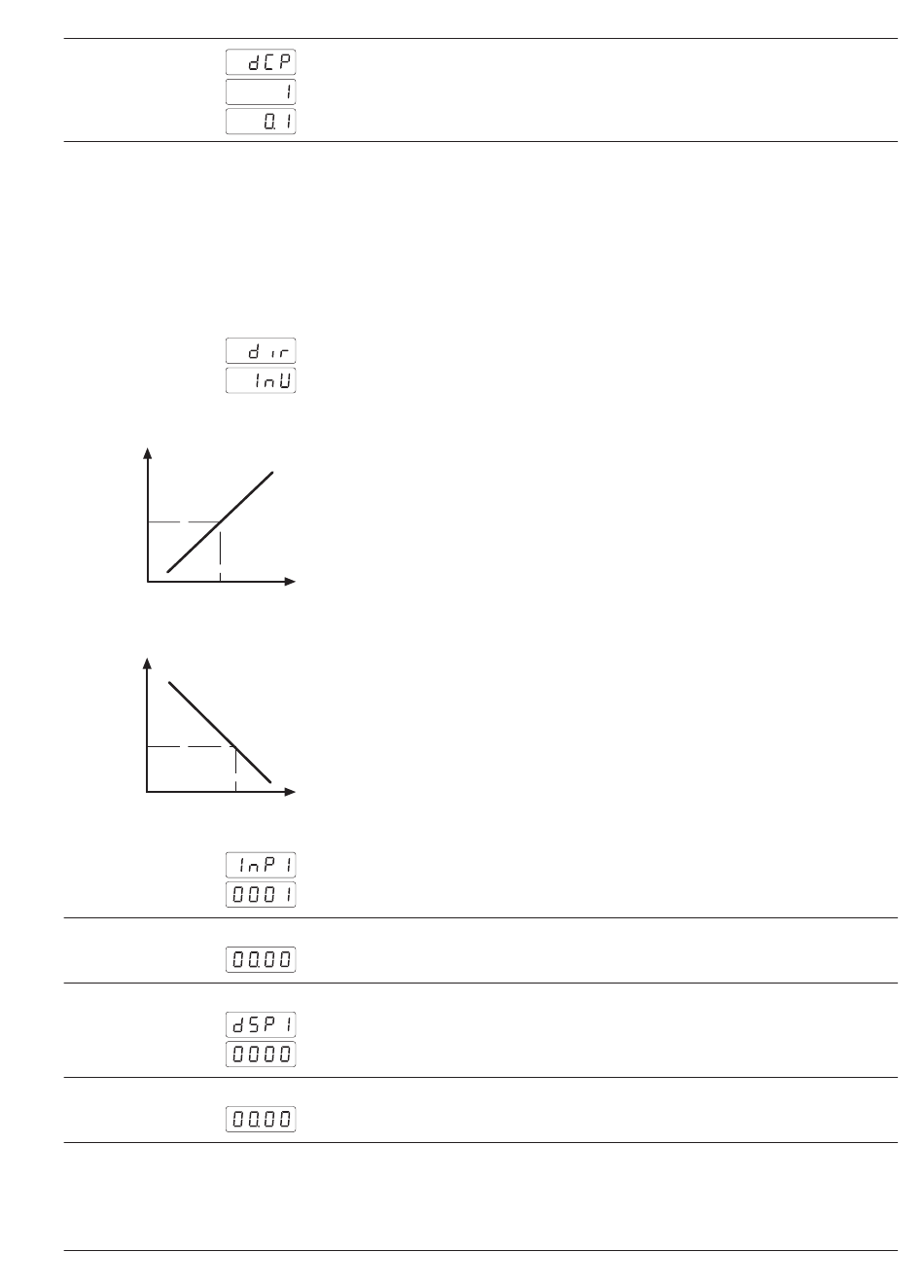

4.2.3 Scaling of displayed value (rAtE)
Here, the displayed value is to be assigned an input frequency to cal-
culate the ratio between these two. The displayed value is calculated
by input frequency multiplied by ratio with two selection options: Di-
rect proportional to input frequency and inverted proportional to in-
put frequency.
Display behavior
Direct proportional to input frequency
Inverted proportional to input frequency
Application example: Displaying the production time 1/h.
Application example: Displaying the oven processing time.
Input frequency
Enter the input frequency within the range 1 to 9999.
Decimal point in the input frequency
Select decimal point in the input frequency.
Displayed value
Enter displayed value which corresponds to the frequency parameter
in InP 1.
Decimal point in the displayed value
Select decimal point position in the displayed value.
