Features:
SELECT
AC and DC CURRENT
AC (45Hz to 1000Hz)
DC
1. 1kHz bandwidth
Overload Protection 440mA, 1000V, FAST fuse
RANGE
99.99Hz
1
999.9Hz
1
9.999kHz
99.99kHz
Sensitivity: >AC 1V RMS, >AC 10mA
1. The Frequency of ACmA mode has only these 2 range specifications.
IRT807 IRT807
0 0.1 M 1 M 10 M 100 M 1 G 2 G
m
A
M
Apo
Apo
V
DC
Test Voltage LOCK
SELECT MIN/MAX RANGE A-HOLD
F C
TEST
PI/DAR
Hz
Temp ZERO
mV
V
kHz
mA
V
SMOOTH
50V
OFF
1000V
Test Voltage
RANGE
MIN/MAX
F C
RANGE
40mA
400mA
40mA
400mA
IRT807 IRT807
0 0.1 M 1 M 10 M 100 M 1 G 2 G
Hz
M
Apo
Apo
V
DC
Test Voltage LOCK
SELECT MIN/MAX RANGE A-HOLD
F C
TEST
PI/DAR
Hz
ZERO
Temp
mV
V
kHz
mA
V
SMOOTH
50V
OFF
1000V
RESOLUTION
0.01Hz
0.1Hz
0.001kHz
0.01kHz
mAmps AC/DC
mA
• Default =
• Press x1 =
mA
LOCK
PI/DAR
A-HOLD
Hz
RESOLUTION
0.01mA
0.1mA
0.01mA
0.1mA
Frequency
14

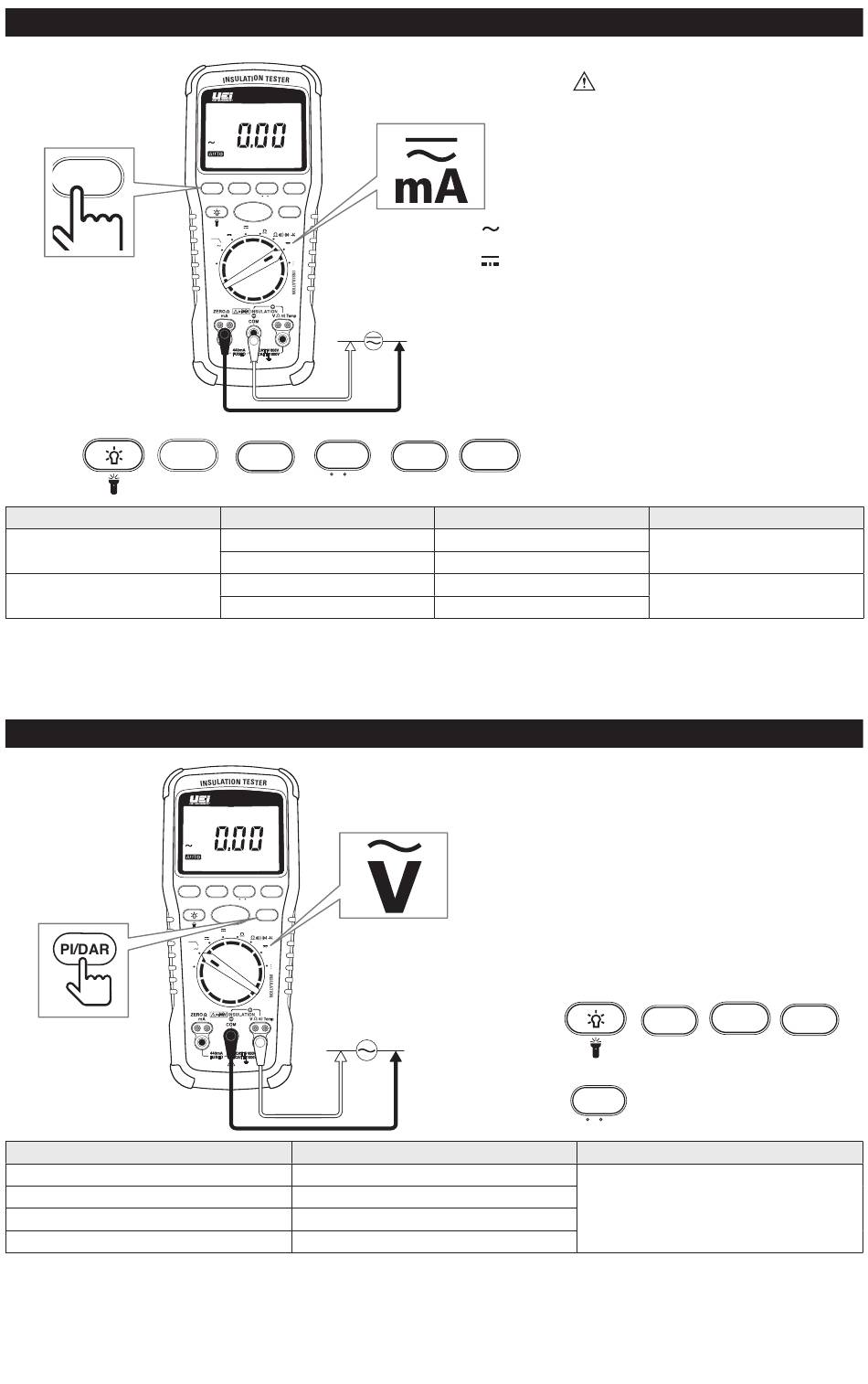

WARNING
Never connect the test leads across
(in parallel with) a voltage source
when attempting to measure current.
This can cause damage to the circuit
under test or this meter.
Note: To measure current, you must
create a break in the circuit under test
and make the meter part of the circuit.
Two connection points are created when a
circuit is broken. On one side is the power
source and the other is the load.
ACCURACY
±(1.5% +5 dgts)
±(0.5% +5 dgts)
The meter measures the frequency of
a voltage or current signal by counting
the number of times the signal crosses a
threshold level each second. To measure
Frequency, set selector dial AC Volt or
Milliamp position. In the mA position, press
the SELECT button to select AC, if needed.
Press the PI/DAR button.
Features:
LOCK
PI/DAR
A-HOLD
Test Voltage
RANGE
F C
ACCURACY
±(0.1% +3 dgts)
1
MIN/MAX
Hz
