Non-Dimming
Load
NOTE: Per UL, the 0-10V negative dimming wire color has been
changed from gray to pink.
FSP-311B CONFIGURATION WITH THE
SENSOR CONFIG APP
The Sensor Configuration App is available
® ®
for both iOS and Android
"Wattstopper Sensor Config" on your device
to download.
NOTE: Bluetooth communication ranges can
vary depending on the device, as well as mobile carrier.
Wattstopper recommends devices with Bluetooth 5.0.
Iphone 8 and Samsung Galaxy S8 and later devices are
recommended for optimal performance.
The Sensor Configuration tool is a
mobile app for changing defaults
and testing of the FSP-311B. It
provides wireless access to the
FSP-311B sensors for parameter
changes and testing. Within a
certain mounting height of the
sensor, the Sensor Configuration
app allows modification of the
system without requiring ladders
or tools. If no configuration steps
are taken, the sensor will use its
default parameter values.
The Sensor Configuration app
display shows menus and prompts
to lead you through each process.
The mobile app provides a simple
way to navigate through the customization fields.
The Sensor Configuration app allows bi-directional
communication between the FSP-311B and the mobile app.
Simple menu screens let you see the current status of the
sensor and make changes. It can change FSP-311B sensor
parameters such as high/low mode, sensitivity, time delay, cut
off and more. With the Sensor Configuration app you can also
establish and store FSP-311B parameter profiles and enable
continuous dimming.
The Sensor Configuration mobile app has the ability to detect
multiple sensors based on signal strength or distance.Every
time the commissioning tool establishes communication with
the FSP-311B, the controlled load will flash, providing a visual
indication of which FSP-311B you are configuring.
Neutral
(White)
Load
(Red)
Purple
Pink
Neutral
Line (Black)
devices. Search

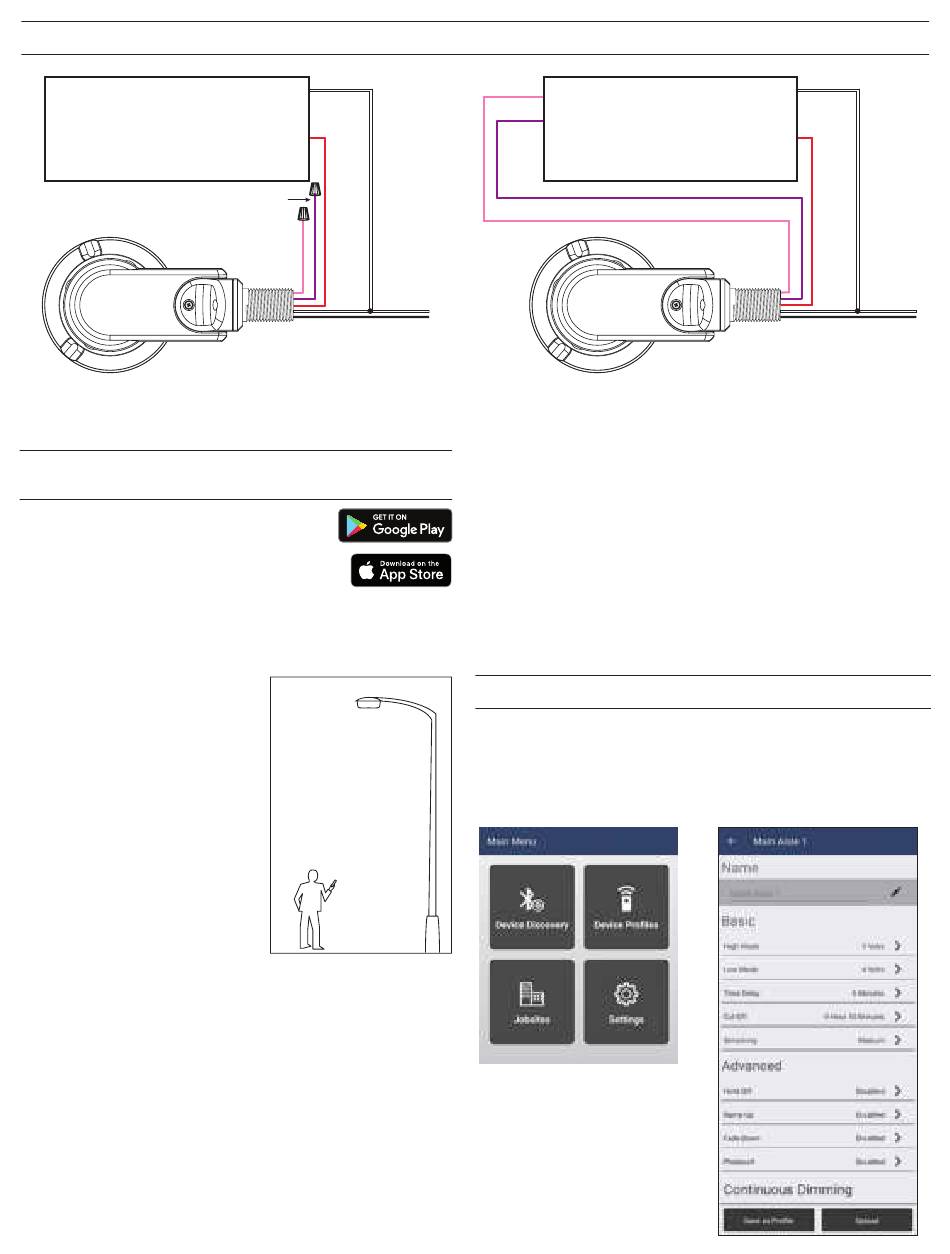

WIRING
Dim (+)
Purple
Dim (-)
Pink
For details on the features and operation, download the Config App
User Guide from the wattstopper web site at :
https://www.legrand.us/wattstopper.aspx
IMPORTANT: We recommend that you secure the sensor with
a jobsite password. Do not lose your jobsite password. Jobsite
passwords are stored on the app on the phone that was used to
commission the sensor. Forgetting the password or not sharing with
the appropriate authority will require you to reset the FDP-301SR
in order to communicate with it. For Fixture manufacturers,
Wattstopper recommends that you do not create a Jobsite and
Password when preprogramming devices at the assembly line.
NOTE: The Bluetooth low energy technology radio stops
broadcasting after 7 days of being powered on if no
password is set for the device. Cycling the power turns the
Bluetooth radio back on.
Navigation is achieved by selecting any of the desired parameters.
Settings can be changed via number of inputs or sliders.
NOTE: When you change parameter values on the FSP-311B, you
need to wait about 3 minutes before the new parameters
are saved into the memory.
3
Dimming
Load
NAVIGATION
Neutral
(White)
Load
(Red)
Neutral
Line (Black)
