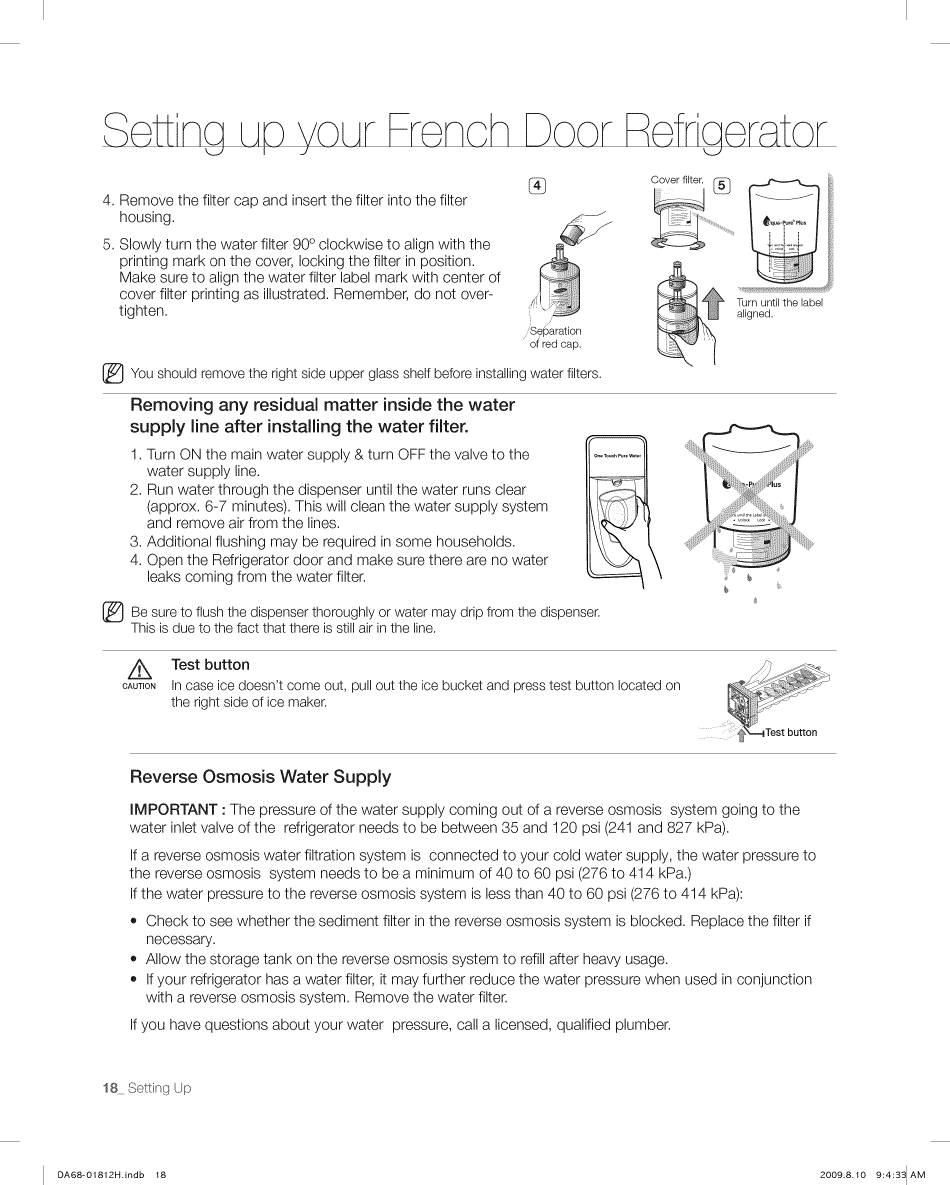

4. Remove the filter cap and insert the filter into the filter
housing.
5. Slowly turn the water filter 90 ° clockwise
to align with the
printing mark on the cover, locking the filter in position.
Make sure to align the water filter label mark with center of
cover filter printing as illustrated.
Remember,
do not over-
tighten.
/
Separation
of red cap.
(_You
should remove the right side upper glass shelf before installing water filters.
®
Removing
any residual
matter inside the water
supply
line after installing
the water filter.
1. Turn ON the main water supply & turn OFF the valve to the
water supply line.
2. Run water through the dispenser
until the water runs clear
(approx. 6-7 minutes). This will clean the water supply system
and remove air from the lines.
3. Additional
flushing may be required in some households.
4. Open the Refrigerator
door and make sure there are no water
leaks coming from the water filter.
One Touch Pure Wate
Be sure to flush the dispenser thoroughly or water may drip from the dispenser.
This is due to the fact that there is still air in the line.
qua-Pure _ Plus
i , i
Turn until the label
aligned,
Test button
CAUTION In case ice doesn't come out, pull out the ice bucket and press test button located on
the right side of ice maker.
Reverse Osmosis
Water Supply
IMPORTANT
• The pressure of the water supply coming out of a reverse osmosis
system going to the
water inlet valve of the
refrigerator
needs to be between
35 and 120 psi (241 and 827 kPa).
If a reverse osmosis water filtration system is connected
to your cold water supply, the water pressure to
the reverse osmosis
system needs to be a minimum
of 40 to 60 psi (276 to 414 kPa.)
If the water pressure to the reverse osmosis
system is less than 40 to 60 psi (276 to 414 kPa):
, Check to see whether the sediment
filter in the reverse osmosis system is blocked.
Replace the filter if
necessary.
, Allow the storage tank on the reverse osmosis system to refill after heavy usage.
,
If your refrigerator
has a water filter, it may further reduce the water pressure when used in conjunction
with a reverse osmosis system.
Remove the water filter.
If you have questions
about your water
pressure, call a licensed,
qualified plumber.
18 Sett qg Up
