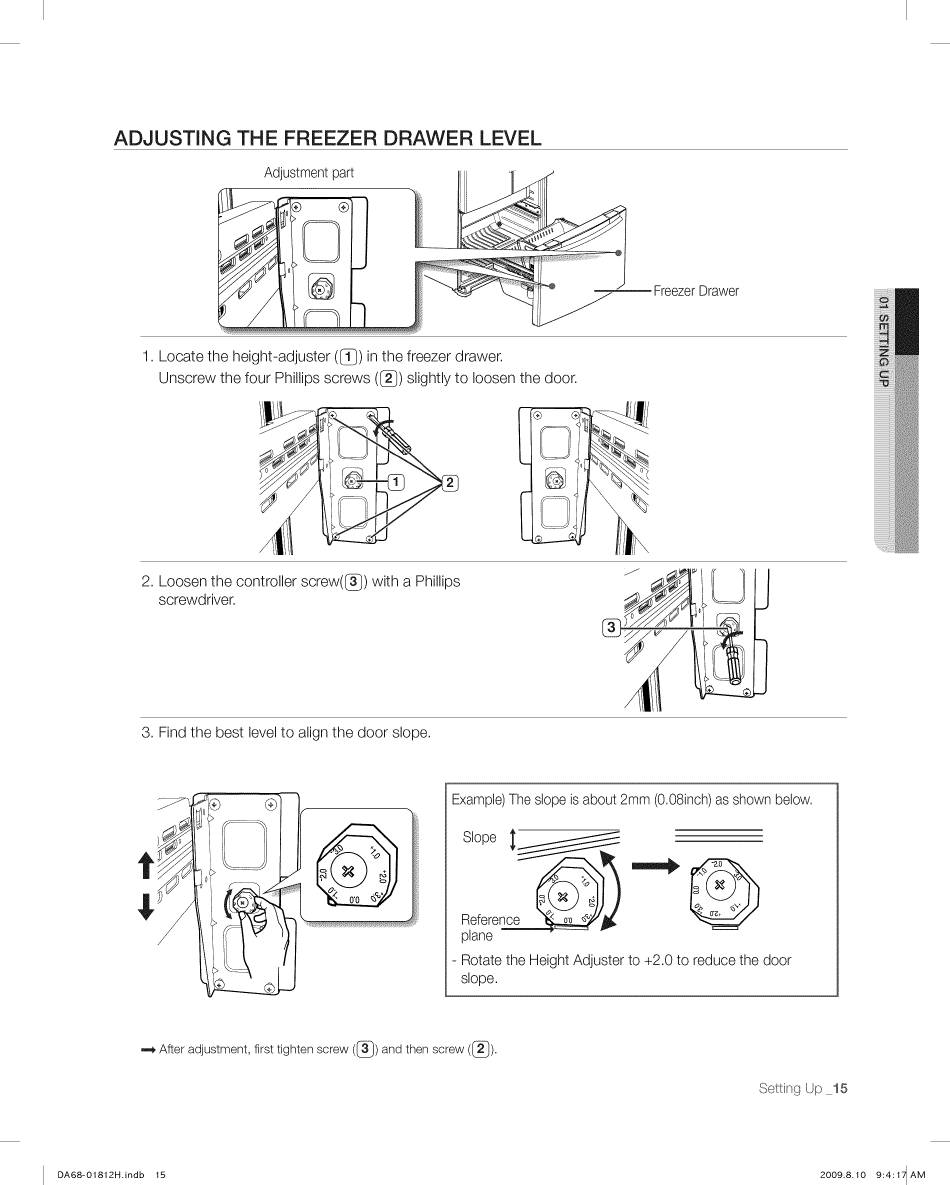

ADJUSTING
THE FREEZER DRAWER LEVEL
Adjustment part
./
(
1. Locate
the height-adjuster
(@)
in the freezer
drawer.
Unscrew the four Phillips screws (@) slightly to loosen the door.
Freezer Drawer
2. Loosen the controller
screw([_])
with a Phillips
screwdriver.
3. Find the best level to align the door slope.
J
Example) The slope is about 2mm (O.08inch) as shown below.
Slope
!_
Reference__ __
plane
- Rotate the Height Adjuster to +2.0 to reduce the door
slope.
-,_ After adjustment, first tighten screw ([_)
and then screw ([_).
