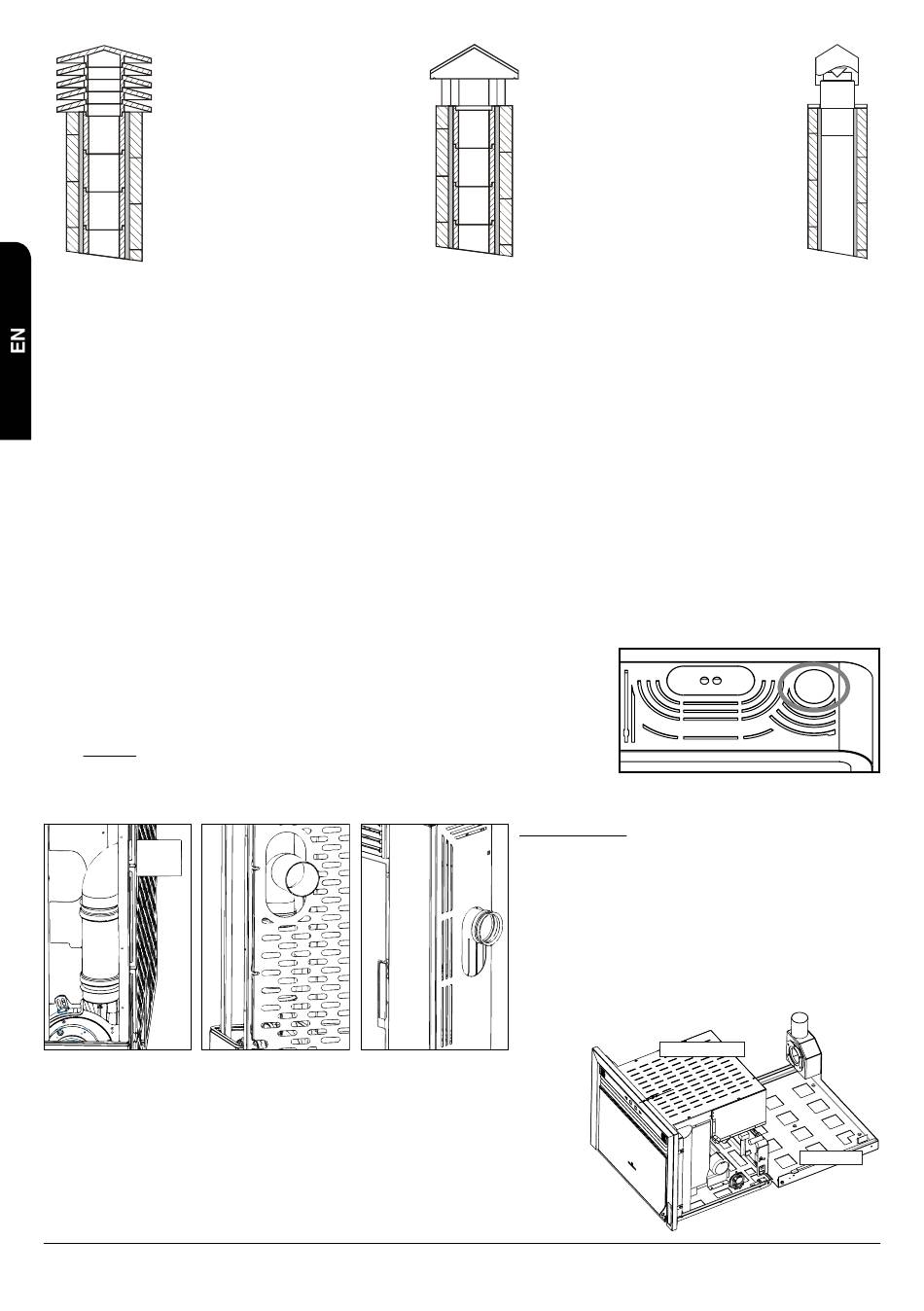

(1) Industrial chimney of
prefabricated elements
that allow a good smoke
extraction.
D14
5.6

OUTSIDE AIR INTAKE

For the proper operation of the stove or insert, it is essential that there is enough air for the combustion and re/oxygenation of the environment
where it is installed. This means that the air must be able to move for the combustion through some openings connected to the exterior, even
when doors and windows are closed.
It must be placed in so that it cannot be obstructed. It must be connected to the environment where the equipment is installed and it must be
protected by a grate. The minimum area of the outlet should not be less than 100 cm2.
When the air flow comes through openings that are connected to the exterior of adjacent environments, it is important to avoid air intakes in
connection with garages, kitchens, toilets, etc.
The stove is provided with a necessary air intake for the combustion on the back side (40 mm diameter). It is important this intake is not
blocked and to respect the recommended distances to the wall or near items. However the insert Damasco has this intake on the rear; while
in the insert Neva this intake is placed on the front, exactly, on the right upper side of the front.
It is recommended the primary air intake connection of the stove or insert with the outside although it is not obligatory. The connection tube
material can be made in any material (PVC, aluminium, polyethylene, etc.), not necessarily metallic. Consider that inside this duct is going to
pass air at the outside temperature.
5.7

ASSEMBLY SPECIFICATIONS ACCORDING TO THE MODEL

5.7.1

MODELS AGATHA, ALEXIA AND ALICIA

There are two different ways to connect the chimney duct to the stove:
- Top exit: it will be enough knocking softly the upper cover that is partially pierced and
connect the ducts to the smoke duct of the extractor on the stove (see drawing D15). Do
not forget to respect the safety distance of the stove with the walls (see chapter "safety
distance").
D16
5.7.2

MODELS NEVA AND DAMASCO

The inserts model Neva and Damasco are composed of a fixed metallic base which is
inserted on the chimney hole and a mobile base (body) which is inserted into the fixed
base through some extensible and removable guides (see drawing D17).
It must have an electrical power outlet on the rear and it must be accessible when the
installation is finished. The chimney must be provided with the smoke duct and an air
intake. To place the fixed base into the chimney hole it is necessary to place it with
metallic bolts with 8 mm diameter. In order to separate the fixed base from the mobile
INSTALLATION, OPERATING AND SERVICING INSTRUCTIONS
(2) Traditional chimney. The
proper exit section must be,
at least, two times the interior
section of the chimney. The best
is 2.5 times.
(3) Chimney with interior cone
smoke baffle-plate.
-Rear or lateral exit: the pipe will be connected to the smoke
duct of the extractor on the stove (vertical) Place a 90º elbow
of 80 mm diameter (to convert the outlet in lateral or rear)
and then, place the rest of the installation pipes, for example:
converter, "T" with a register cover, elbow, pipe, etc (see
drawing D16). Take into account that, with this option the
stove will be separated of the wall, at least the diameter duct
plus the recommended security distance (see chapter "safety
distance").
30
Mobile body
Fixed base
RADIOFREQUENCY SERIES
D15
D17
