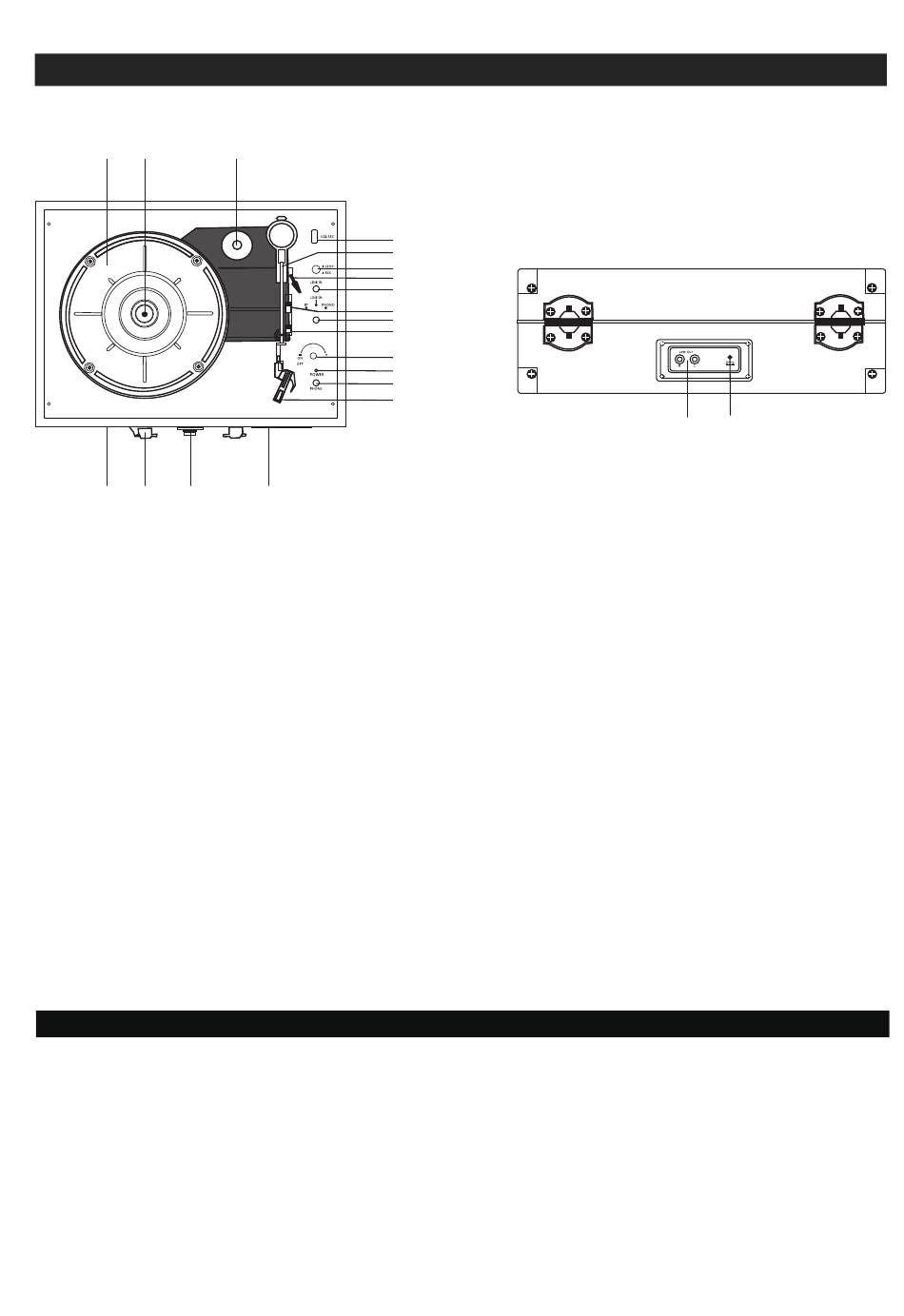

MAIN UNIT
1 2
16
17 18
1. Turntable platter
2. Turntable Shaft
3. 45 RPM Adaptor
4. USB record jack
5. Tone arm
6. USB rec button
7. Lift lever
8. 3.5mm line in jack
9. Speed control selection
10. Function selection knob
11. Auto stop on/off switch
12. Power/Volume control knob
13. Charging battery led light indicator
14. Headphone jack
15. Stylus (needle) Cartridge
16. Built-in speaker
17. Handle
18. Lock
19. RCA line-out L/R
20. DC in power jack
POWER SUPPLY
An AC DC Adaptor with the output 5V DC 1A (included)is required for operating the main unit .To
connect the AC-DC Adaptor to the unit and 230V~60Hz AC outlet:
1. Firmly and securely insert the DC plug of the adaptor to the DC IN JACK on the back of the unit.
2. Plug the adaptor's AC plug into a power outlet rated at 120V AC~60Hz.
Rotate the POWER/VOLUME ON/OF SWITCH clockwise to turn on the system. The power indicator
Will light on.
PARTS / BUTTONS
3
4
5
6
7
8
9
10
11
12
13
14
15
16
