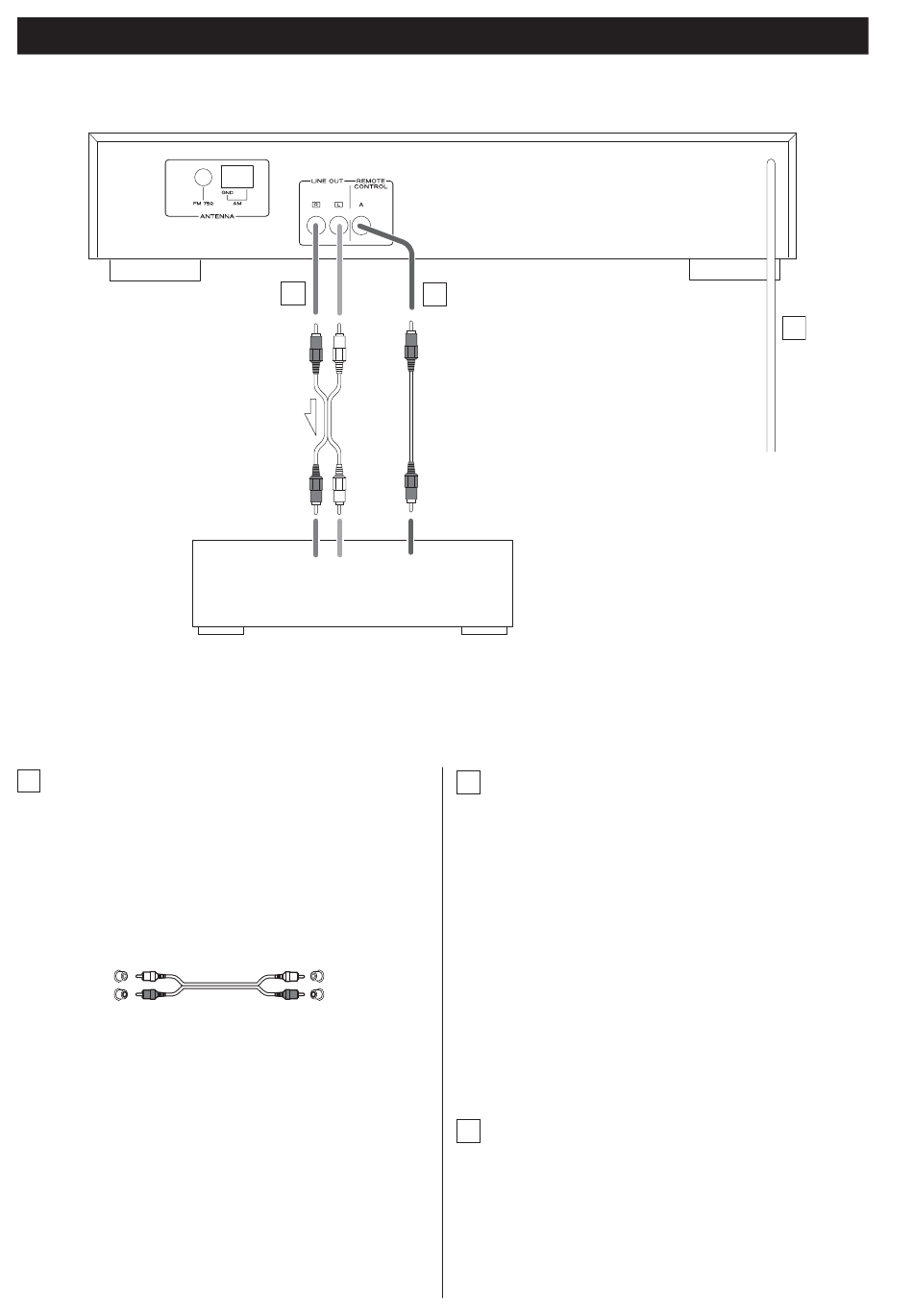

A LINE OUT jacks
These jacks transmit an analog 2-channel audio signal. Connect
these jacks to the TUNER jacks of the amplifier (A-R650) with a
stereo RCA pin cable.
Make sure to connect the cable as follows:
white plug q white jack (L: left channel)
red plug q red jack (R: right channel)
White (L)
Red (R)
< Be sure to insert each plug securely. To prevent hum and noise,
avoid bundling the signal interconnection cables together with
the AC power cord or speaker cables.
4
A
R L
TUNER
(LINE IN)
Amplifier (A-R650)
White (L)
Red (R)

Connection

B
REMOTE
CAUTION:
CONTROL
B REMOTE CONTROL jack
If you have TEAC A-R650, connect this jack to the A-R650's
remote control jack wi†h remote control connection cord.
Convenient system control operations are available.
< When you tune in a station, the input selector of the A-R650 is
set to "TUNER" automatically.
When you want to use the remote control functions, connect
the REMOTE CONTROL jack of each component by a remote
control connection cord.
< You can use the remote control unit UR-431 (provided for
A-R650). Aim the remote control unit at the A-R650 to operate
this unit.
Note:
The remote control unit is not provided for this unit.
C AC power cord
After all other connections are complete, connect the plug to the
AC wall socket.
< Be sure to connect the power cord to an AC outlet which
supplies the correct voltage.
< Hold the power plug when plugging or unplugging the power
cord.
< Switch off the power to all equipment before
making connections.
< Read the instructions of each component you
intend to use with this unit.
T-R650
C
